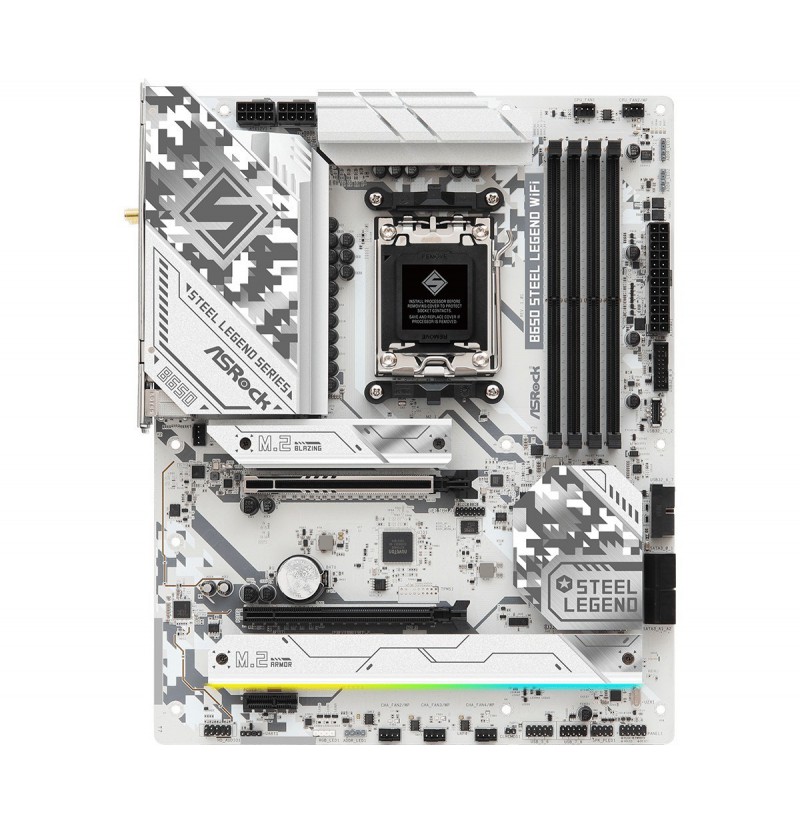

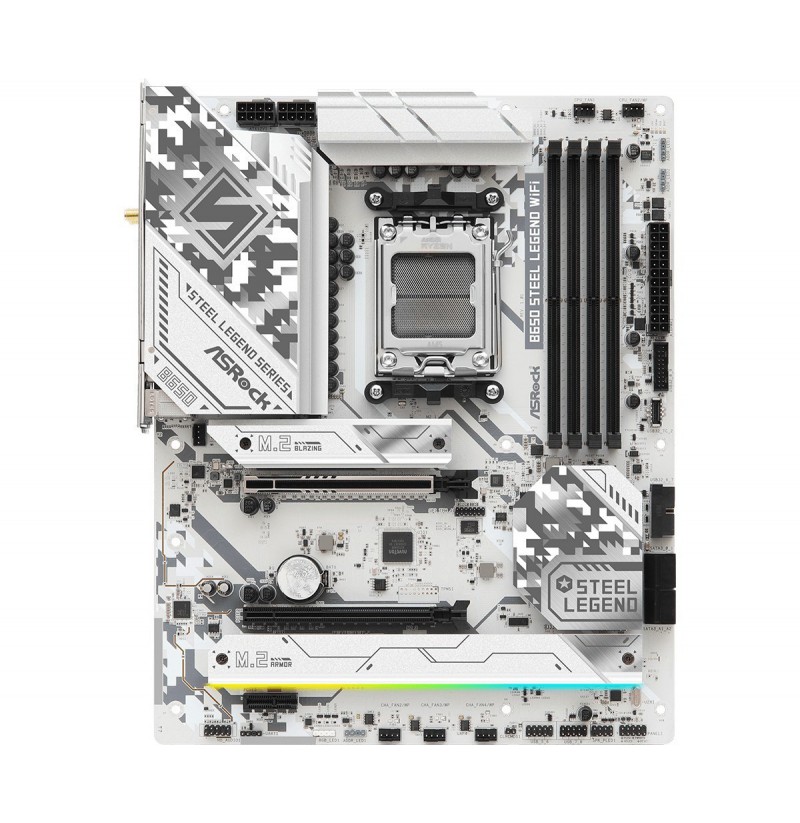

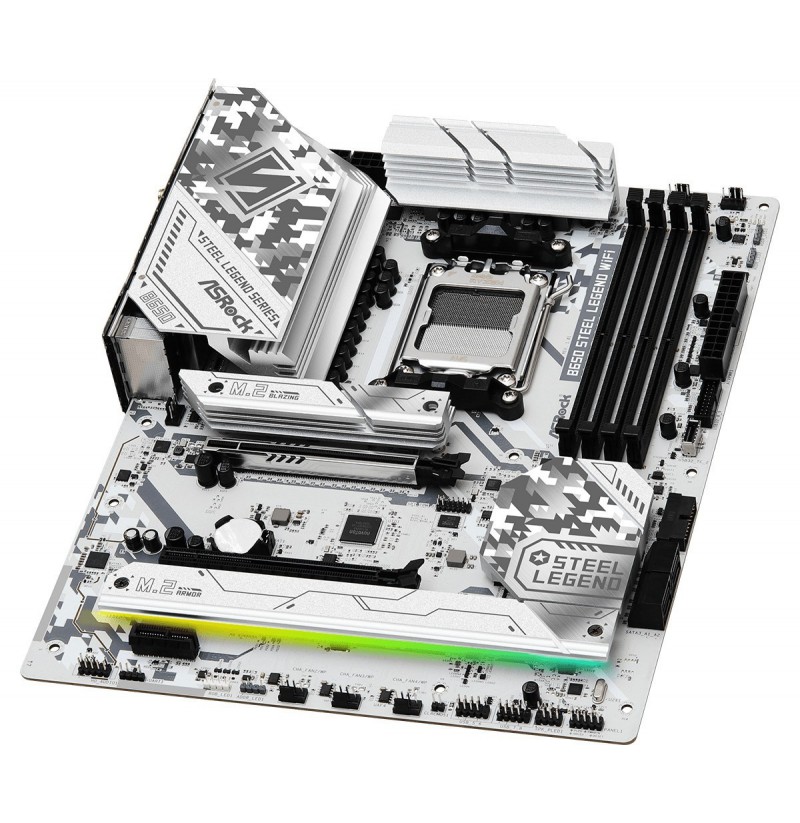

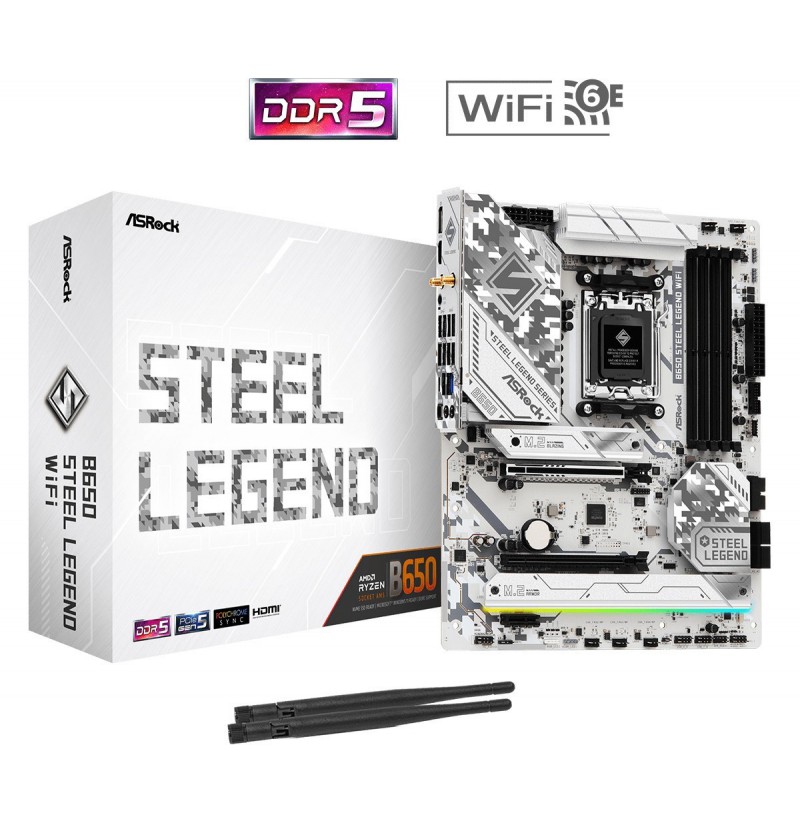

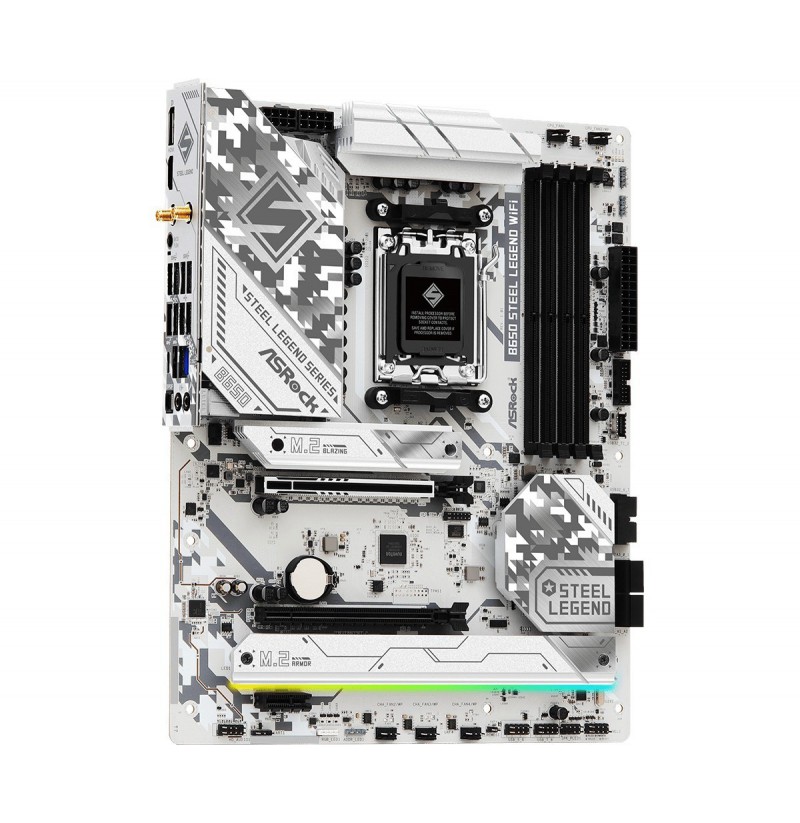

Mainboard Asrock B650 STEEL LEGEND WIFI

Compatible processor series: AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, AMD Ryzen™ 5
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Processor socket: Socket AM5
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Audio chip: Realtek ALC4082
Motherboard chipset: AMD B650
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Supported memory clock speeds: 7200 MHz
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Depth: 244 mm
Width: 305 mm
Bluetooth: Yes
LAN controller: Dragon RTL8125BG
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 4 (802.11n), 802.11g, 802.11b
Ethernet LAN: Yes
Bluetooth version: 5.2
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Number of SATA III connectors: 4
Thunderbolt headers: 1
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
RGB LED pin header: Yes
TPM connector: Yes
BIOS type: UEFI AMI
RAID levels: 10, 0, 1
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes

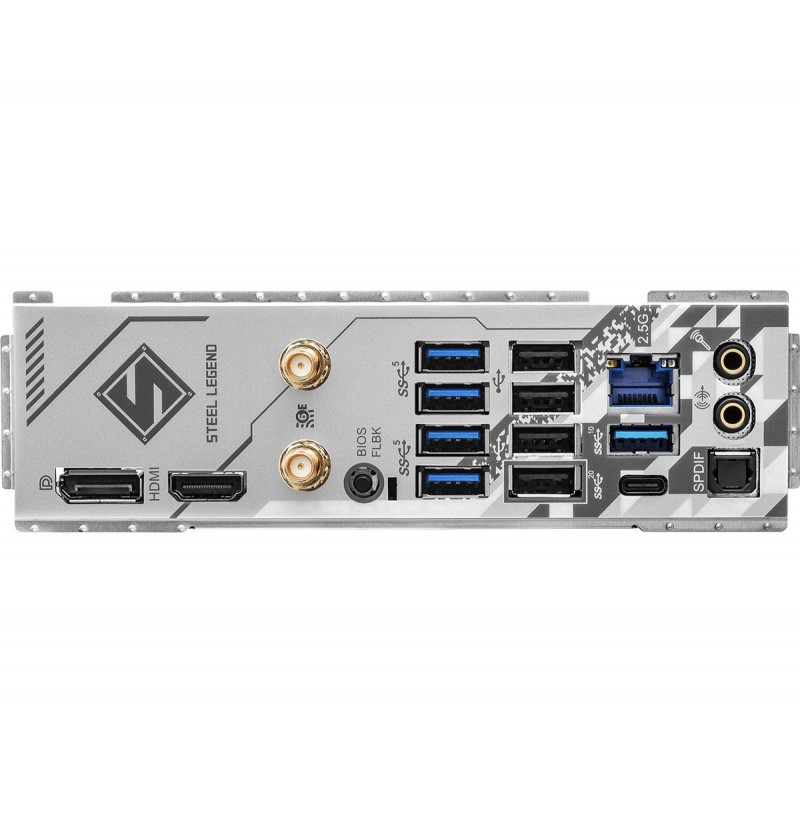

S/PDIF out port: Yes
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
Number of antenna connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Headphone outputs: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
