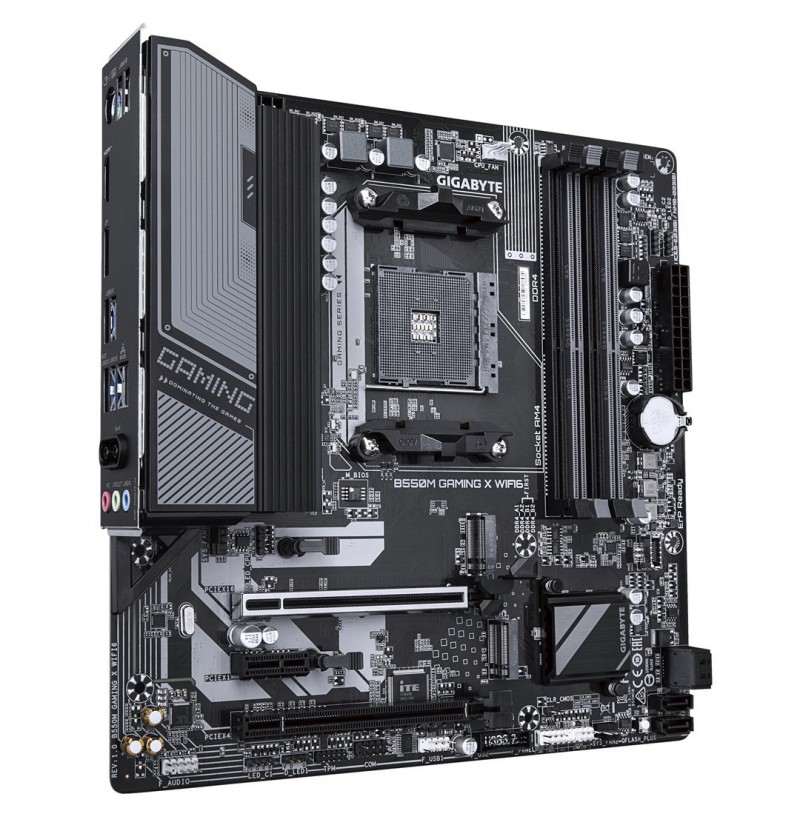

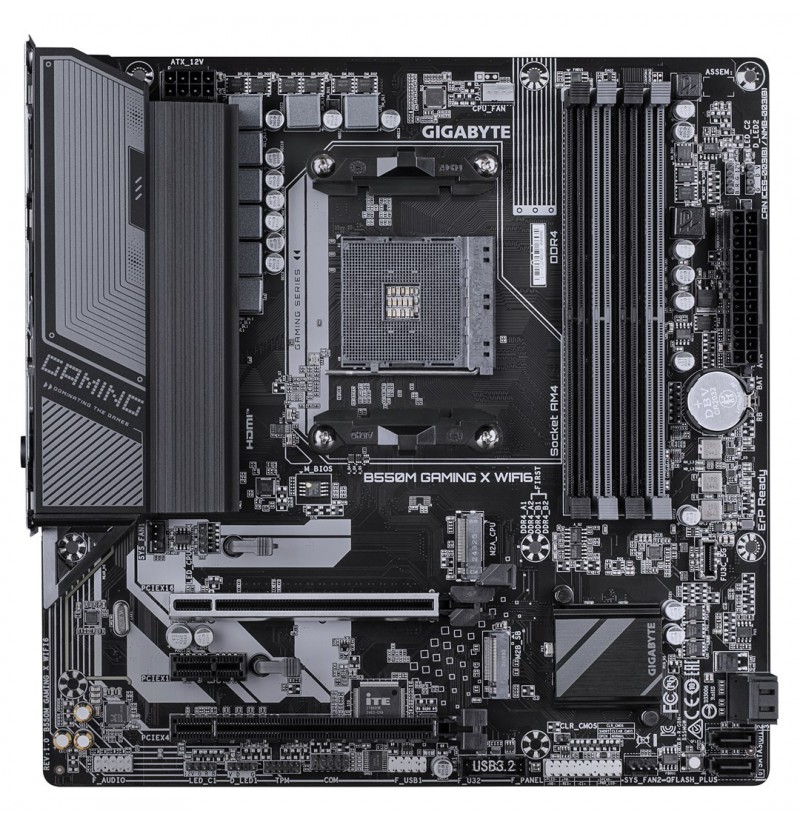

GIGABYTE B550M GAMING X WIFI6 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0

GIGABYTE B550M GAMING X WIFI6 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6, 1GbE LAN, USB 3.2 Gen 1
Warranty period: 3 year(s)
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 5120 x 2880 pixels
DirectX version: 12.0
PC health monitoring: Fan, Voltage, Temperature
Audio chip: Realtek ALC1220-VB
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Product colour: Dark brown
Motherboard chipset family: AMD
Motherboard chipset: AMD B550
Power source type: ATX
Cooling type: Passive
Component for: PC
Memory slots type: DIMM
Supported memory clock speeds: 2933, 2667, 2133, 2400, 3200
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory clock speed (max): 3200 MHz
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR4-SDRAM
Maximum internal memory per slot: 32 GB
Width: 244 mm
Height: 35 mm
Depth: 244 mm
Wi-Fi standards: 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model: Realtek RTL8851BE
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth version: 5.3
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: Yes
LAN controller: Realtek RTL8111H
Bluetooth: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 5
Number of chassis fan connectors: 2
Front panel connector: Yes
TPM connector: Yes
CPU fan connector: Yes
Number of EPS power connectors (8-pin): 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
BIOS type: UEFI AMI
ACPI version: 5.0
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS memory size: 128 Mbit
Package depth: 268 mm
Package weight: 1.24 kg
Package height: 68 mm
Package width: 270 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes
Batteries included: Yes
Antenna included: Yes
Number of HDDs supported: 4
RAID levels: 10, 1, 0
Number of storage drives supported: 6
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III

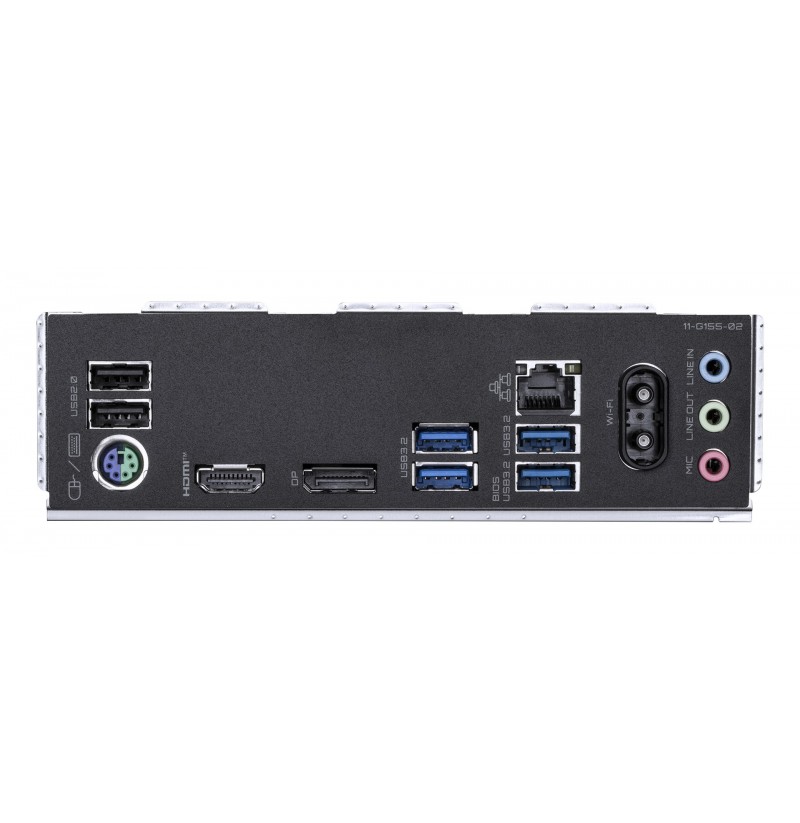

DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPort version: 1.4
HDMI version: 2.1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
WiFi-AP antenna jack: 2
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
2nd M.2 highest PCI Express generation: 3.0
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery type: CR2032
Weight: 1.14 kg
Products per shipping (inner) case: 1 pc(s)
