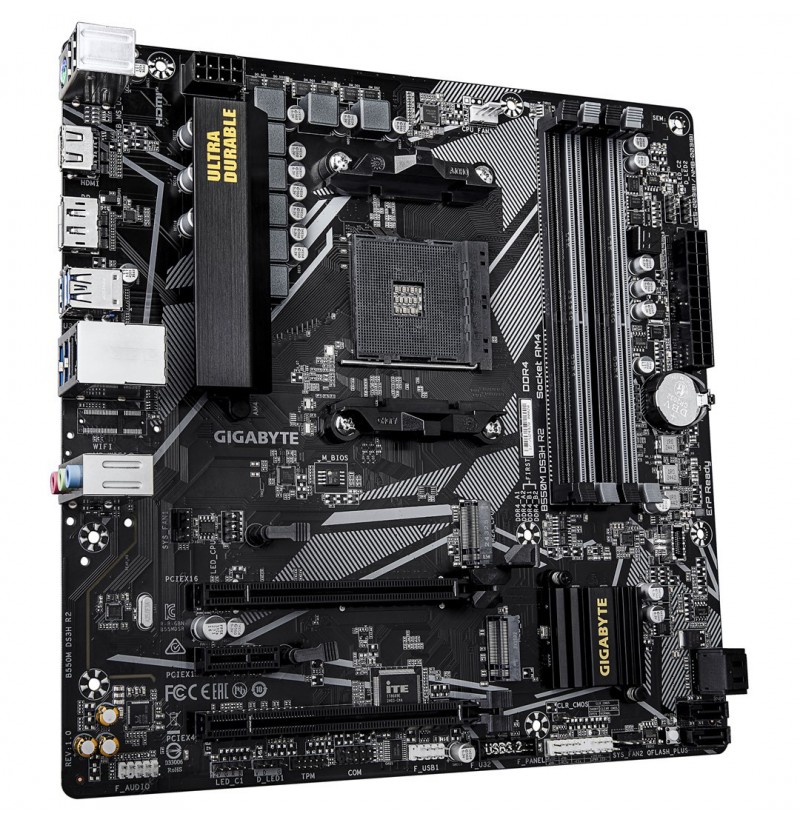

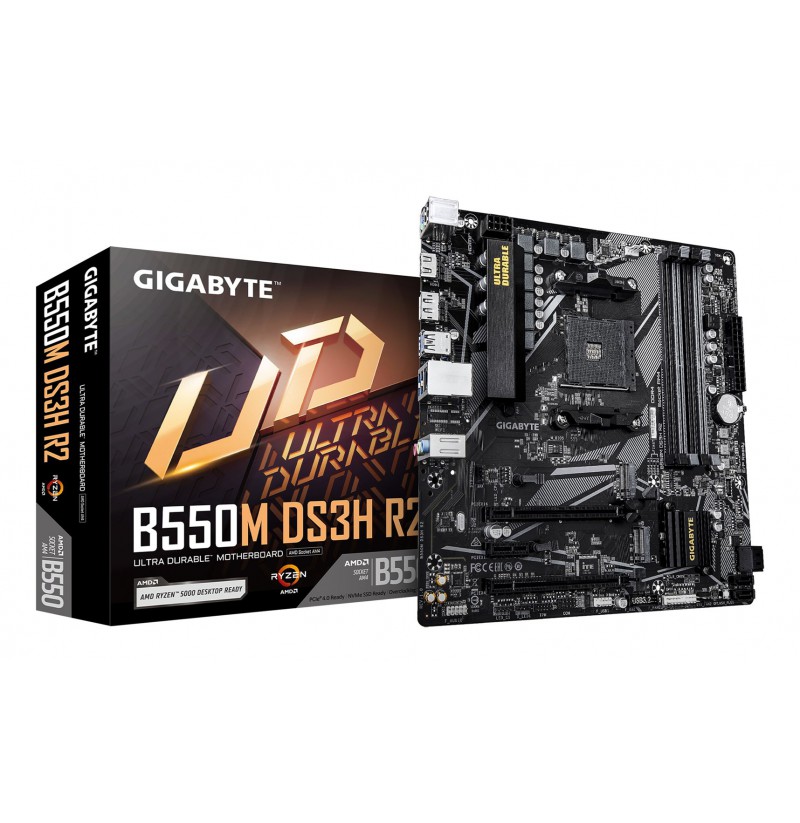

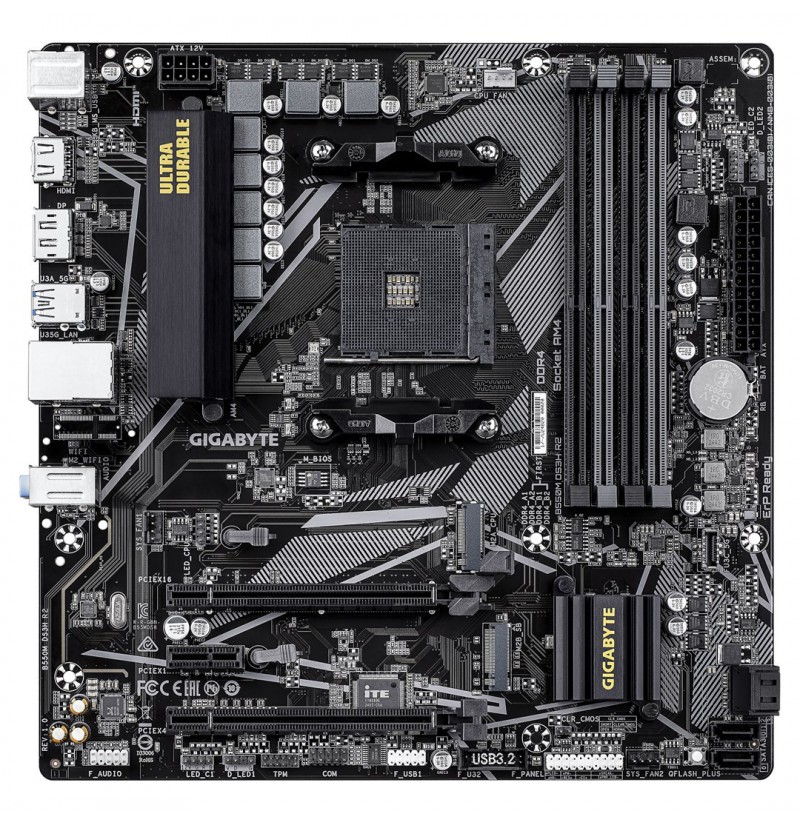

GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0

GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1
Warranty period: 3 year(s)
Supported processor sockets: Socket AM4
Processor socket: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
HDCP: Yes
Maximum resolution: 5120 x 2880 pixels
Parallel processing technology support: Not supported
DirectX version: 12.0
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Cooling type: Passive
PC health monitoring: Fan, Temperature, Voltage
Motherboard chipset: AMD B550
Audio chip: Realtek ALC1220-VB
Motherboard chipset family: AMD
Product colour: Dark brown
Power source type: ATX
Component for: PC
Memory channels: Dual-channel
Memory slots type: DIMM
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Supported memory clock speeds: 2400, 2667, 3733, 4400 MHz, 3200, 4266, 3400, 3866, 2933, 3600, 4733, 2133, 3466, 4600, 4133, 4000
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 4733 MHz
Maximum internal memory per slot: 32 GB
Supported memory types: DDR4-SDRAM
Height: 35 mm
Depth: 244 mm
Width: 244 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 5
Number of EPS power connectors (8-pin): 1
Serial port headers: 1
Number of chassis fan connectors: 2
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
TPM connector: Yes
Front panel connector: Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 2.7
BIOS memory size: 128 Mbit
ACPI version: 5.0
Package weight: 947 g
Package width: 265 mm
Package height: 54 mm
Package depth: 265 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes
Batteries included: Yes
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of HDDs supported: 4
RAID levels: 0, 1, 10
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD

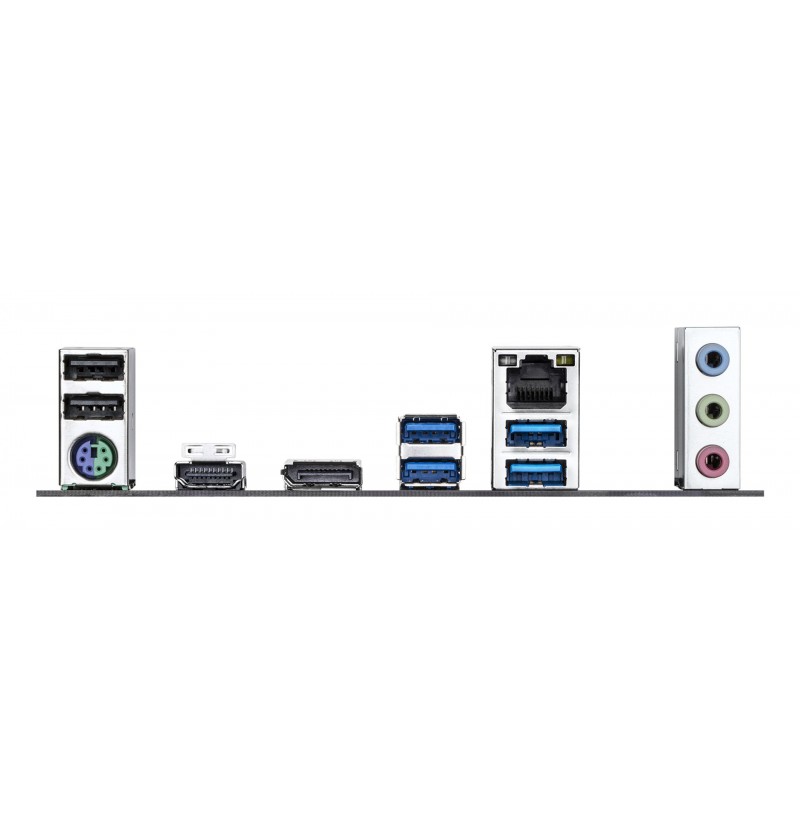

DisplayPorts quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
Line-in: Yes
Headphone outputs: 1
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Weight: 870 g
Products per shipping (inner) case: 1 pc(s)
