GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0

GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
Warranty period: 3 year(s)
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: micro ATX
Motherboard chipset: AMD B840
PC health monitoring: Water cooling, Temperature, Fan, Voltage
Audio chip: Realtek ALC897
Product colour: Dark brown
Motherboard chipset family: AMD
Cooling type: Passive
Audio output channels: 7.1 channels
Component for: PC
Power source type: ATX
Memory slots type: DIMM
Supported memory clock speeds: 4400 MHz, 7950, 7900, 5200, 6600, 6800, 5800, 6200, 8000, 6000, 7600, 7800, 5600, 7200, 7000, 8200, 7400, 6400 MHz, 4800
Unbuffered memory: Yes
Number of memory slots: 4
Maximum internal memory: 256 GB
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Maximum internal memory per slot: 64 GB
Height: 35 mm
Width: 244 mm
Depth: 244 mm
Wi-Fi standards: 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
WLAN controller model: Realtek RTL8852CE
Wi-Fi: Yes
Ethernet LAN: Yes
Bluetooth: Yes
LAN controller: Realtek RTL8125
Number of water pump connectors: 2
12V power connector: Yes
USB 2.0 connectors: 2
Number of chassis fan connectors: 4
Number of SATA III connectors: 4
TPM connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of RGB LED pin headers: 4
RGB LED pin header: Yes
Number of EPS power connectors (8-pin): 1
ATX Power connector (24-pin): Yes
Number of CPU fan connectors: 2
ACPI version: 5.0
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
System Management BIOS (SMBIOS) version: 2.7
Package depth: 268 mm
Package width: 270 mm
Package weight: 1.59 kg
Package height: 68 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes
Antenna included: Yes
Batteries included: Yes
RAID levels: 0, 1, 10
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

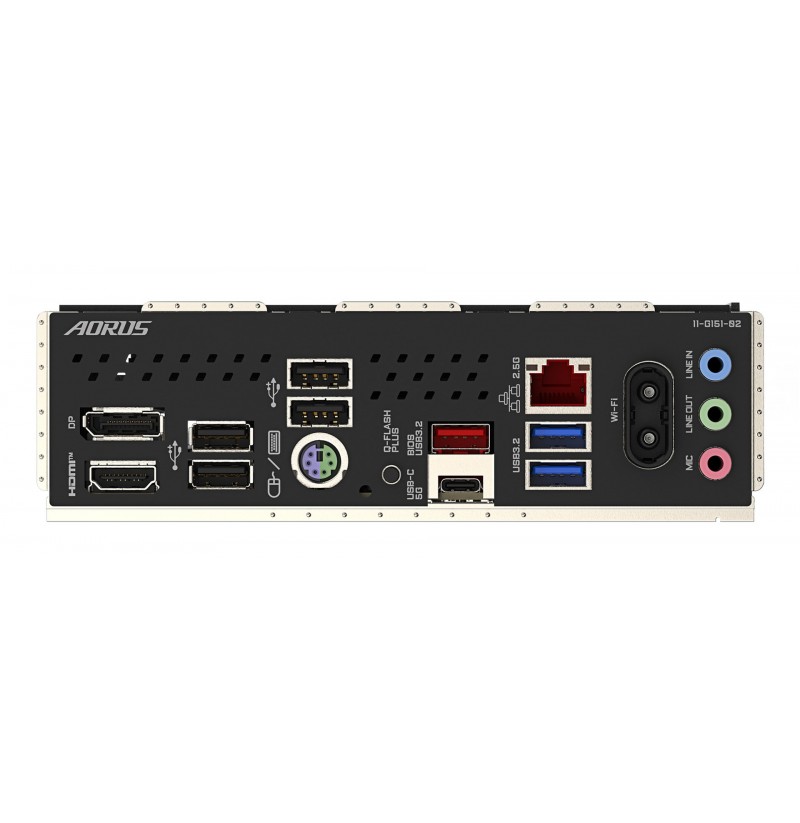

Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
DisplayPorts quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1

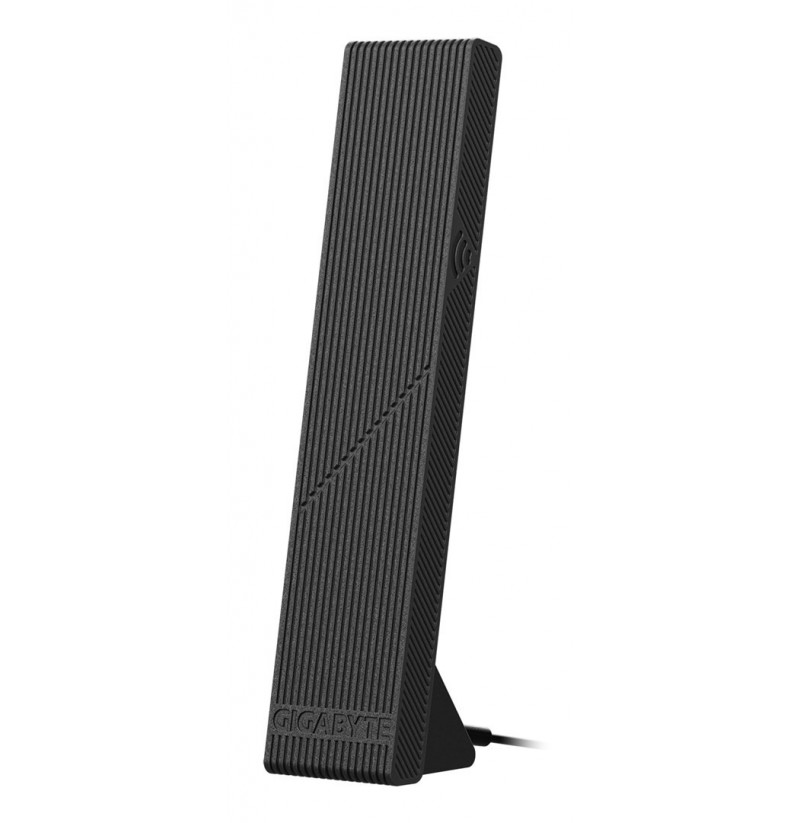

WiFi-AP antenna jack: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
2nd M.2 largest key size: 22110
Battery type: CR2032
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Weight: 1.5 kg
Products per shipping (inner) case: 1 pc(s)
