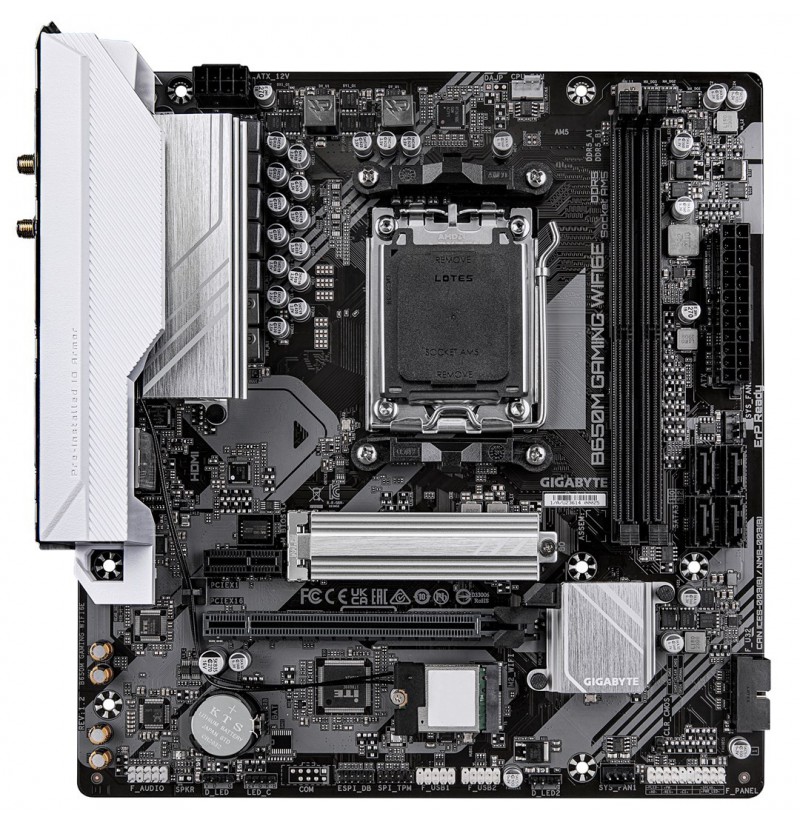

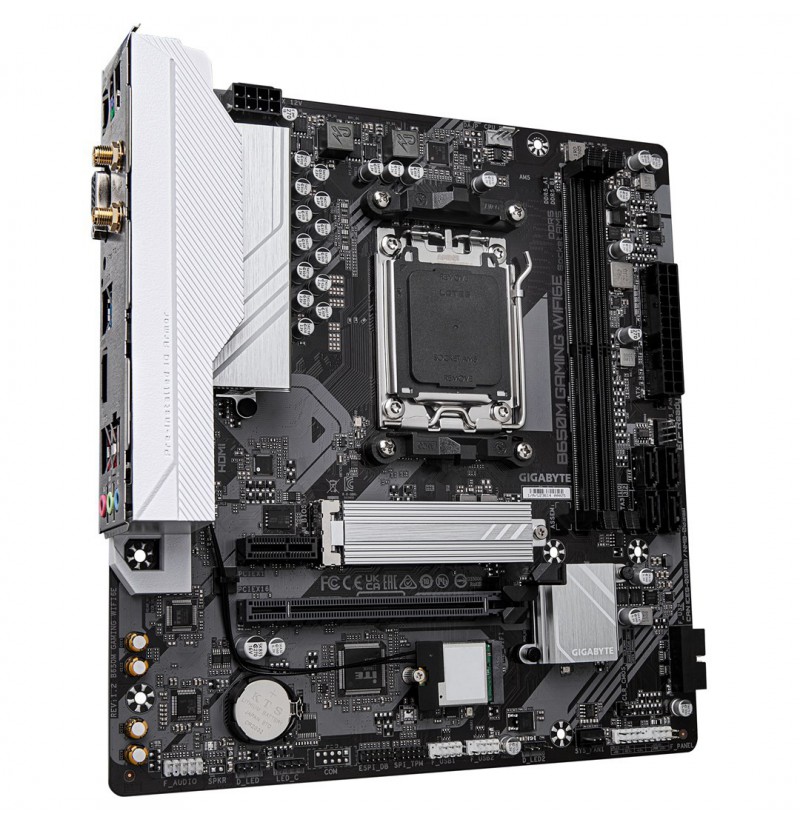

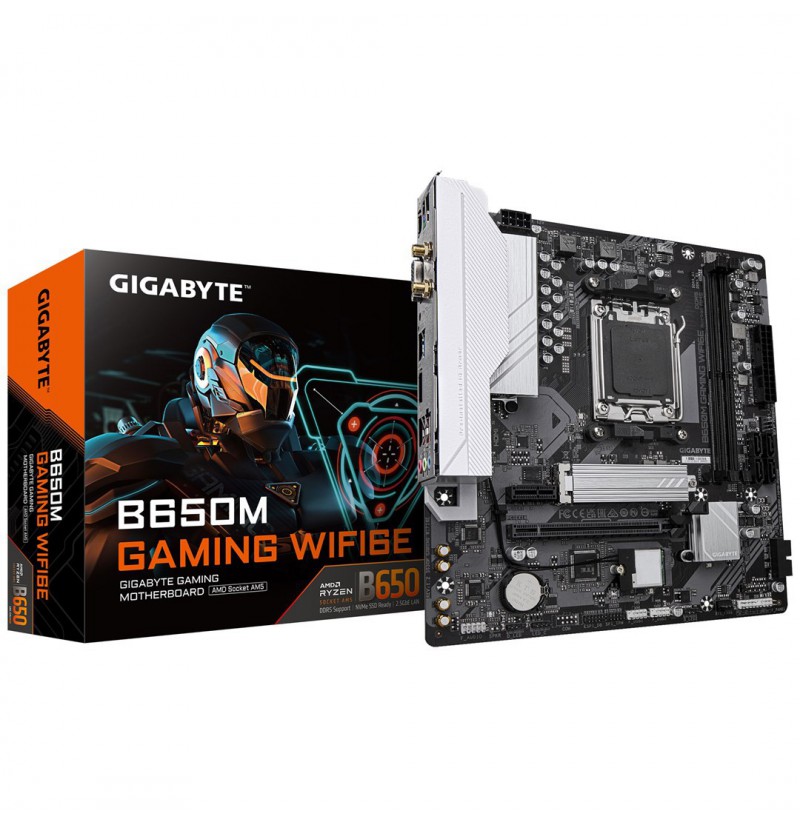

GIGABYTE B650M GAMING WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0

GIGABYTE B650M GAMING WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, 2.5 GbE LAN, WIFI 6E, USB 3.2 Gen 1
Warranty period: 3 year(s)
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Motherboard chipset: AMD B650
Motherboard form factor: micro ATX
PC health monitoring: Voltage, Temperature, Fan
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11
Component for: PC
Power source type: ATX
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory clock speeds: 6200, 4400 MHz, 6400 MHz, 5600, 6000, 5200, 4800
Number of memory slots: 4
Supported memory clock speed (max): 6400 MHz
Memory slots type: DIMM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Width: 240 mm
Depth: 225 mm
Height: 35 mm
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: Realtek RTL8852CE
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Bluetooth version: 5.3
Bluetooth: Yes
Number of SATA III connectors: 4
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 1
EPS power connector (8-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 2
USB 2.0 connectors: 2
RGB LED pin header: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Desktop Management Interface (DMI) version: 2.7
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS jumper: Yes
ACPI version: 5.0
Package width: 270 mm
Package depth: 268 mm
Package weight: 1.21 kg
Package height: 68 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes
Antenna included: Yes
Batteries included: Yes
RAID levels: 0, 10, 1
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 5
Headphone outputs: 1

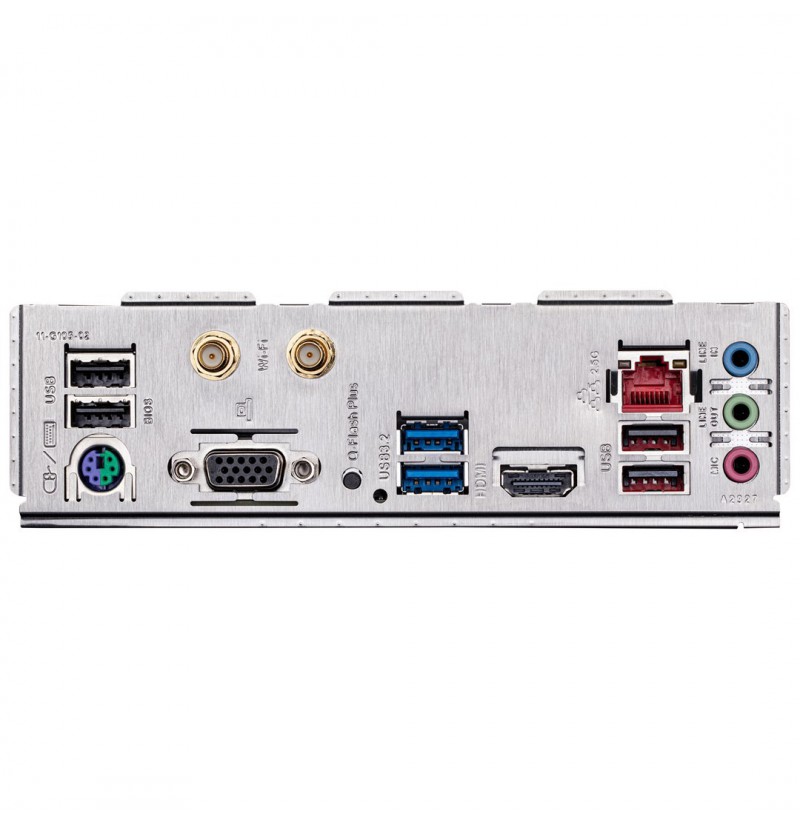

Ethernet LAN (RJ-45) ports: 1
VGA (D-Sub) ports quantity: 1
Microphone in: Yes
Line-in: Yes
HDMI version: 2.1
WiFi-AP antenna jack: 2
HDMI ports quantity: 1
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
PCI Express x1 (Gen 3.x) slots: 1
1st M.2 largest key size: 2580
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
Number of battery cells: 1
Battery type: CR2032
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Weight: 720 g
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
