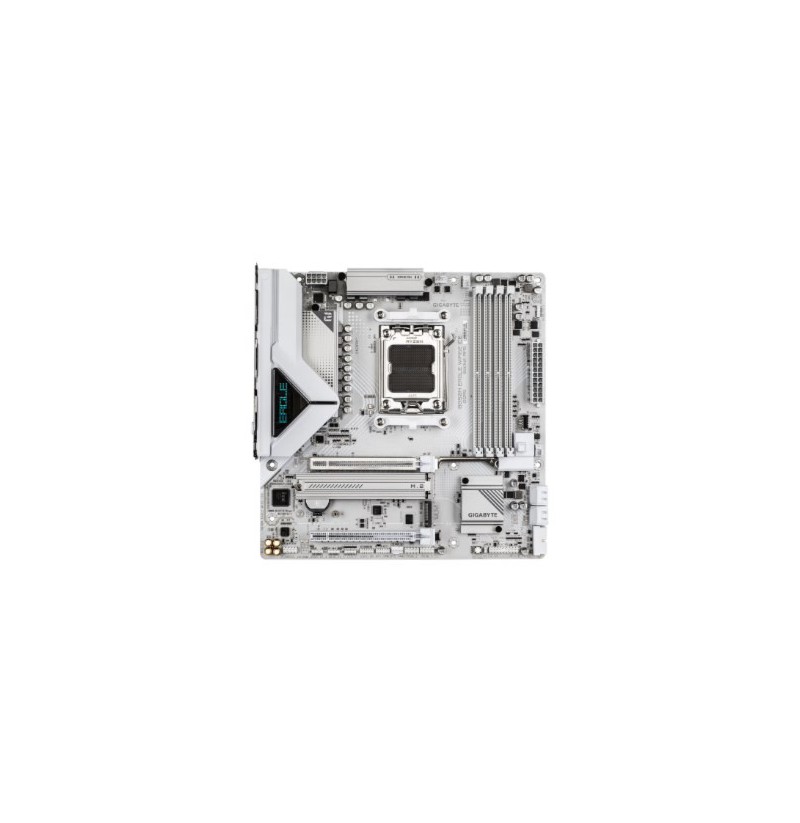

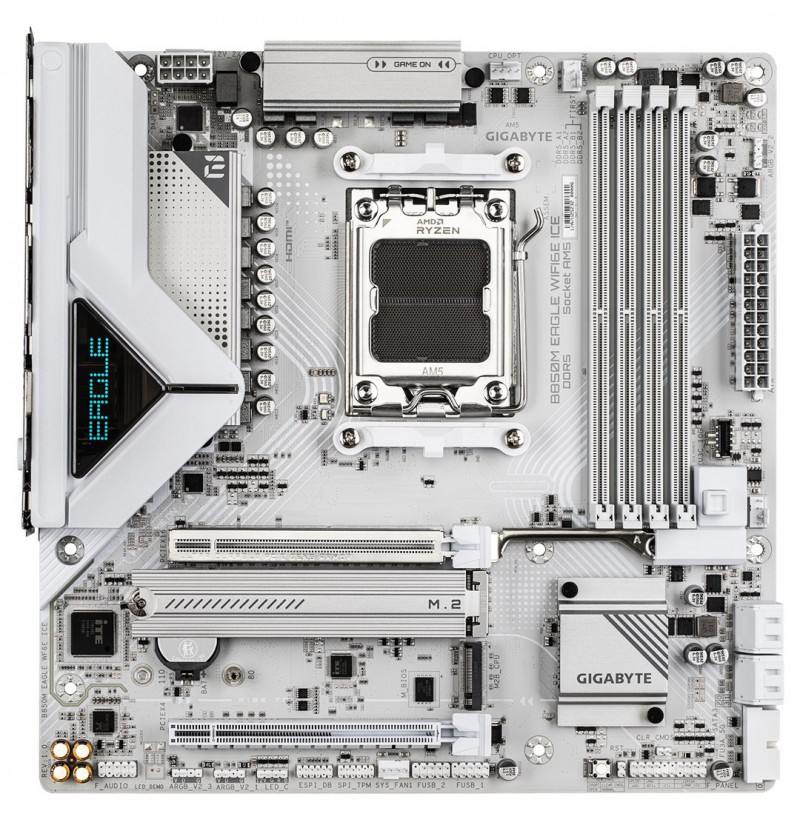

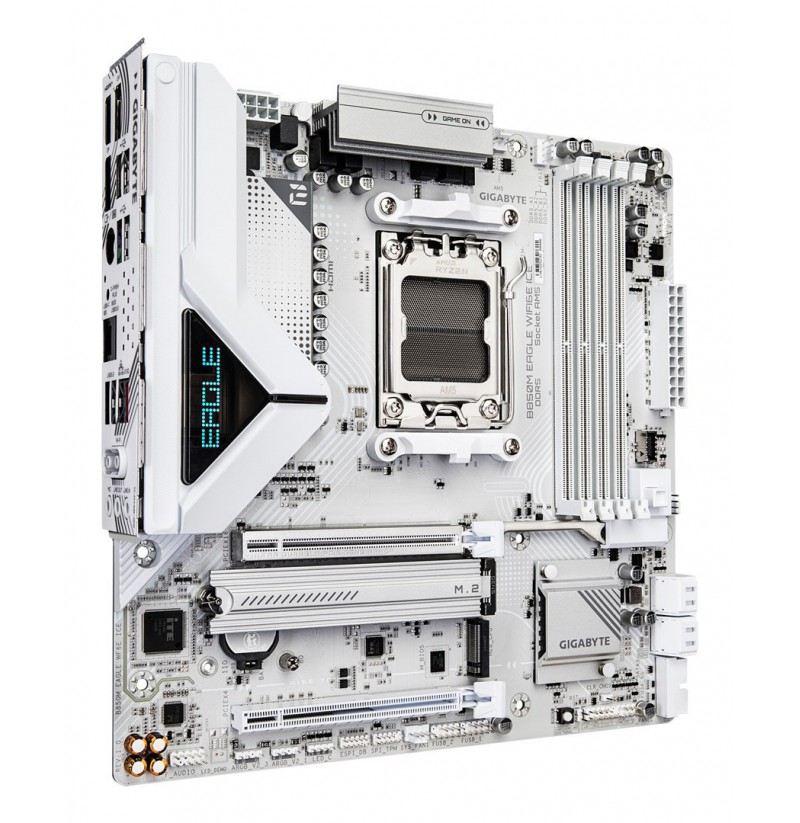

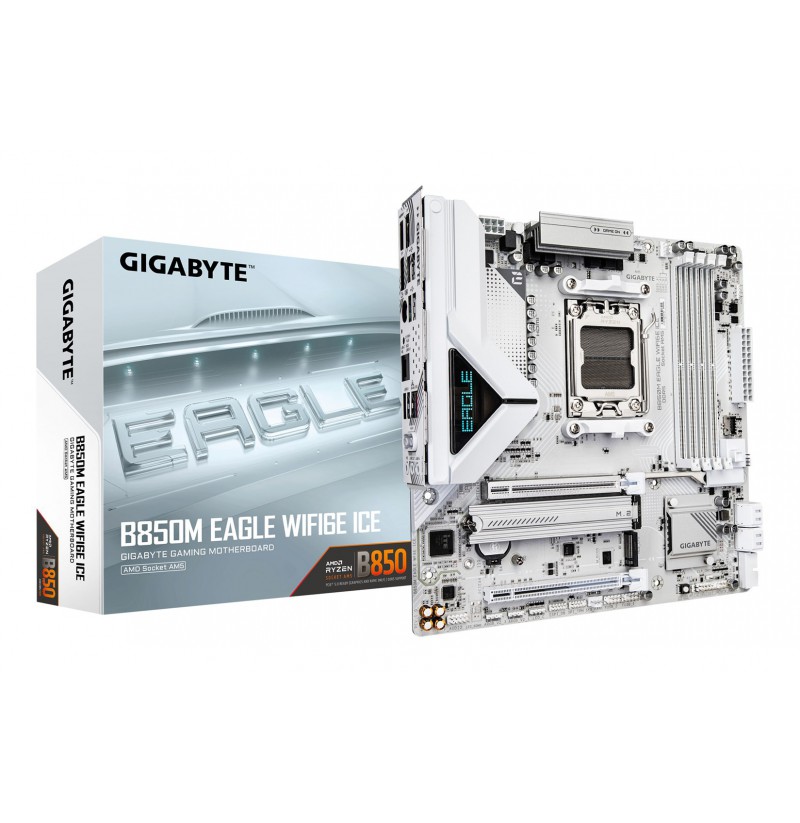

GIGABYTE B850M EAGLE WF6E ICE AM5 4xDDR5 4xSATA 2xM.2 1xHDMI 2xDP

Warranty period: 3 year(s)
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor socket: Socket AM5
On-board graphics card: No
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Cooling type: Passive
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
PC health monitoring: Fan, Water cooling, Temperature, Voltage
Motherboard chipset: AMD B850
Product colour: White
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8200 MHz
ECC сompatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Supported memory clock speeds: 7400, 6600, 6400, 6000 MHz, 5800, 7600, 7800, 5200, 4800, 6800, 8000, 6200, 7000, 4400 MHz, 7950, 5600, 7200, 7900, 8200 MHz
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Depth: 244 mm
Height: 35 mm
Width: 244 mm
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), 802.11g
WLAN controller model: Realtek RTL8852CE
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth version: 5.3
Bluetooth: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
TPM connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Number of RGB LED pin headers: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 2
USB 2.0 connectors: 2
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
ACPI version: 5.0
BIOS memory size: 256 Mbit
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Package weight: 1.9 kg
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Antenna included: Yes
Screws included: Yes
Batteries included: Yes
RAID levels: 10, 0, 1, 5
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
HDMI version: 2.1

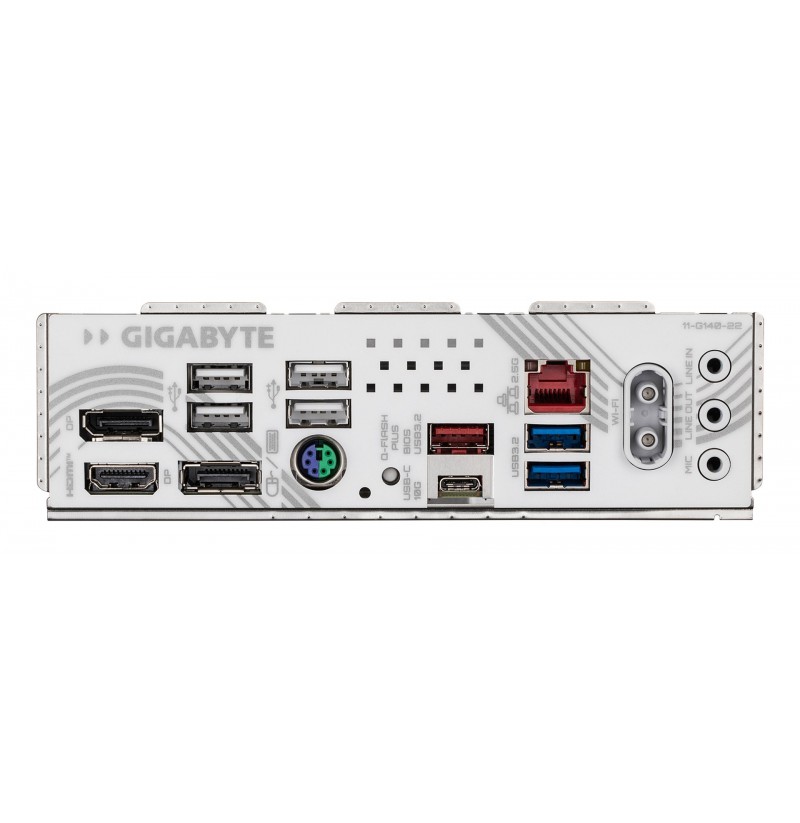

WiFi-AP antenna jack: 2
Headphone outputs: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Line-in: Yes
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 largest key size: 22110
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
Battery type: CR2032
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Weight: 1.7 kg
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
