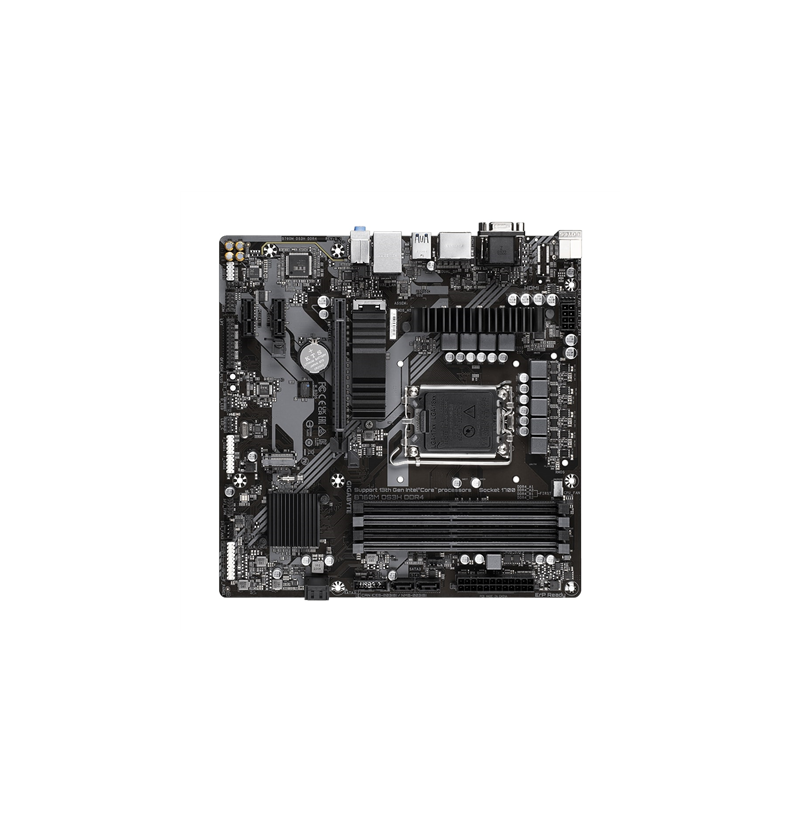

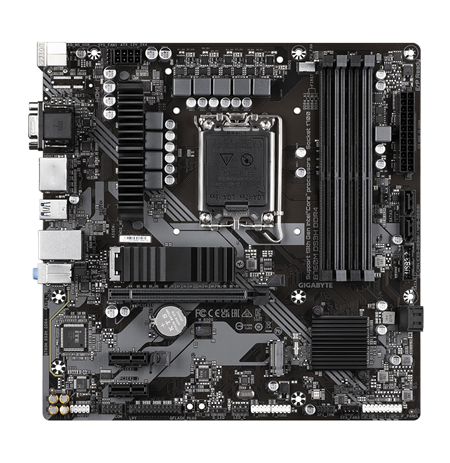

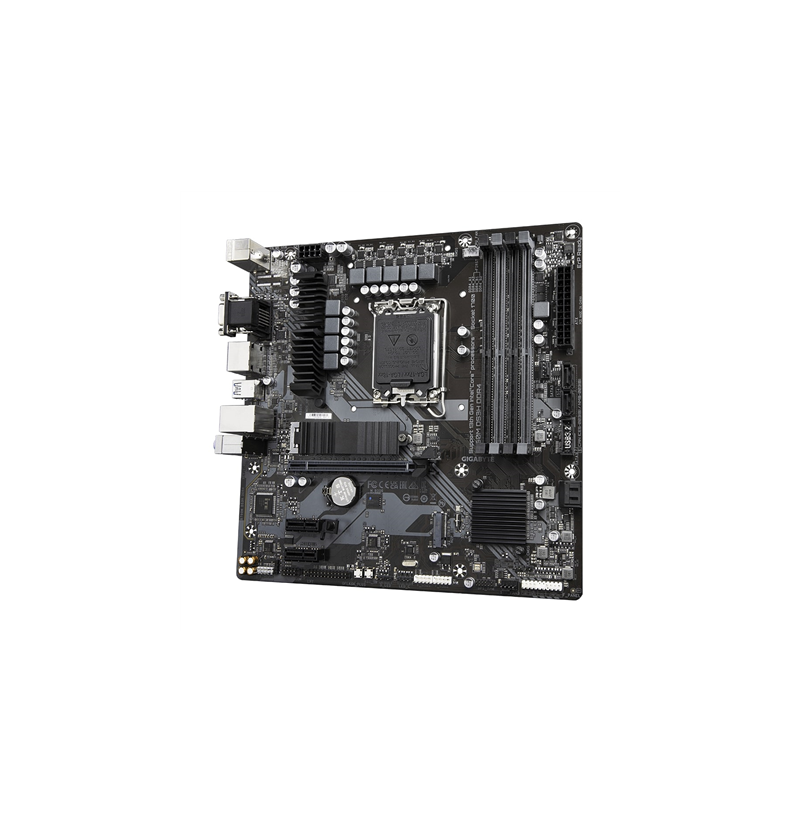

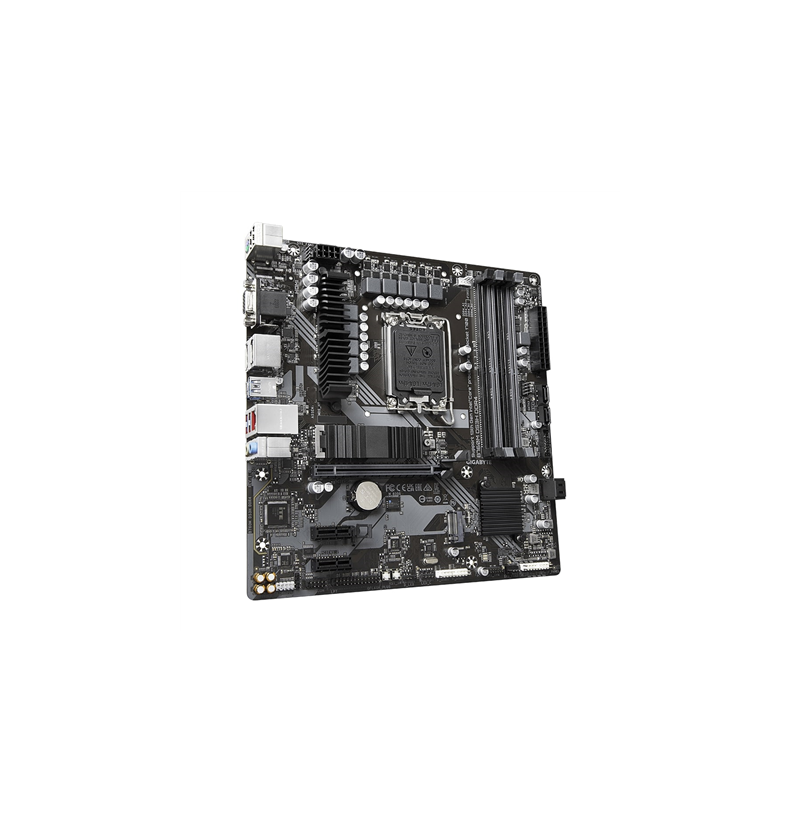

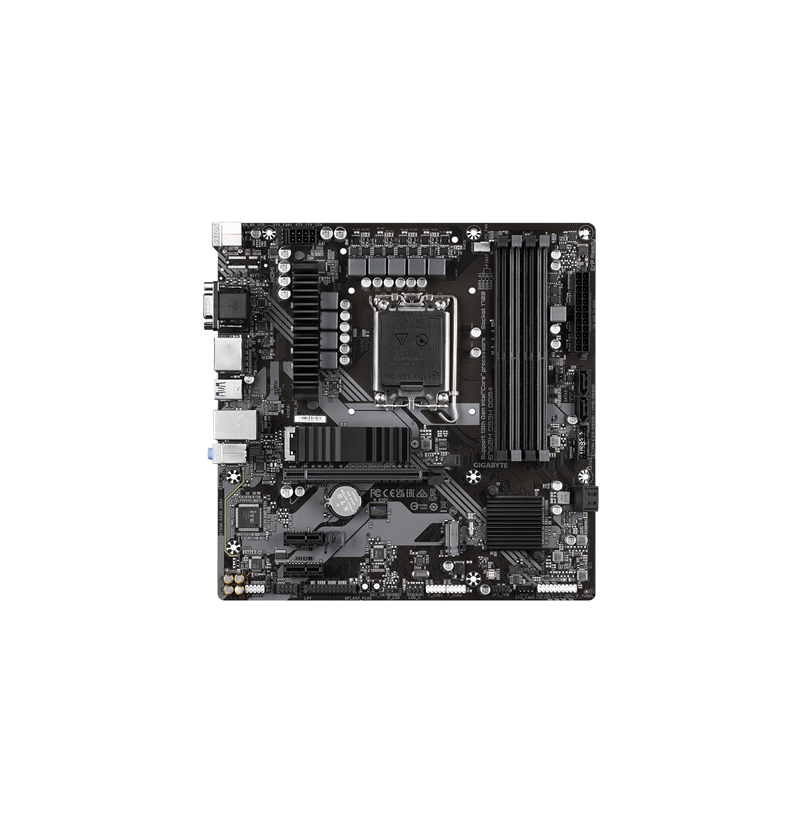

Gigabyte B760M DS3H DDR4 motherboard Intel B760 LGA 1700 micro ATX

Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket: LGA 1700
Processor manufacturer: Intel
Number of displays supported: 4
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard chipset: Intel B760
Motherboard form factor: micro ATX
PC health monitoring: Fan, Voltage, Water cooling, Temperature
Power source type: ATX
Supported memory clock speed (max): 4933 MHz
Memory types supported by processor: DDR4-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Supported memory clock speeds: 2933, 3600, 3300, 3733, 4300, 4400 MHz, 4133, 4000, 3666, 4800, 4933, 3400, 3866, 3800, 3333, 4600, 3000, 3466, 4500, 2400, 4700, 3200 MHz, 2666, 4266, 2133
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Depth: 244 mm
Width: 244 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Number of chassis fan connectors: 3
CPU fan connector: Yes
Number of M.2 (M) slots: 2
EPS power connector (8-pin): Yes
Parallel connector: Yes
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
S/PDIF out connector: Yes
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Serial port headers: 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
RAID levels: 5, 0, 1, 10
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Headphone outputs: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
PS/2 ports quantity: 1
Line-in: Yes
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
