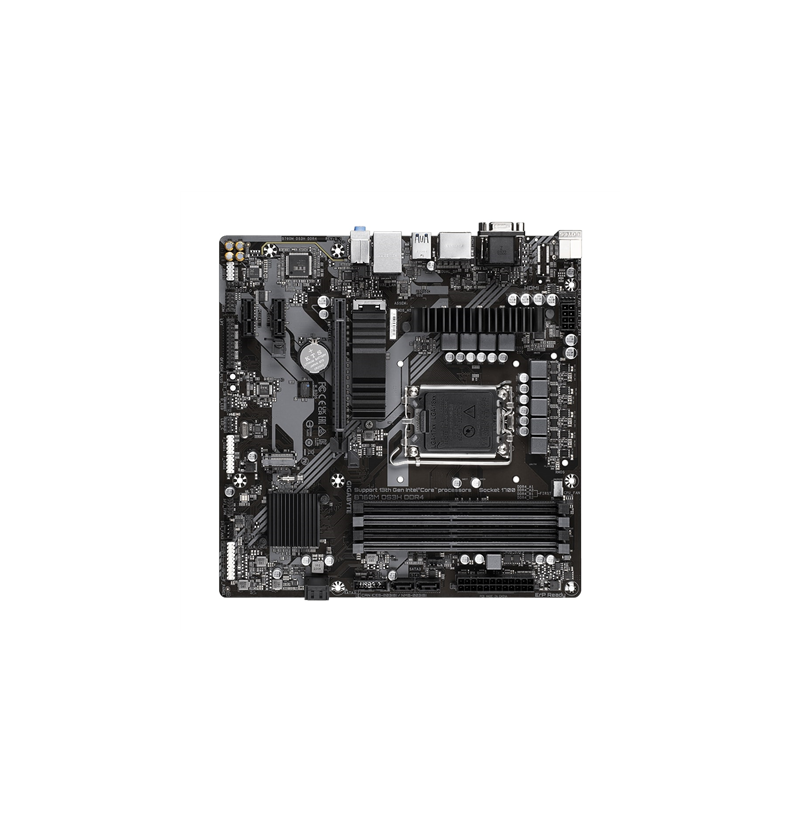

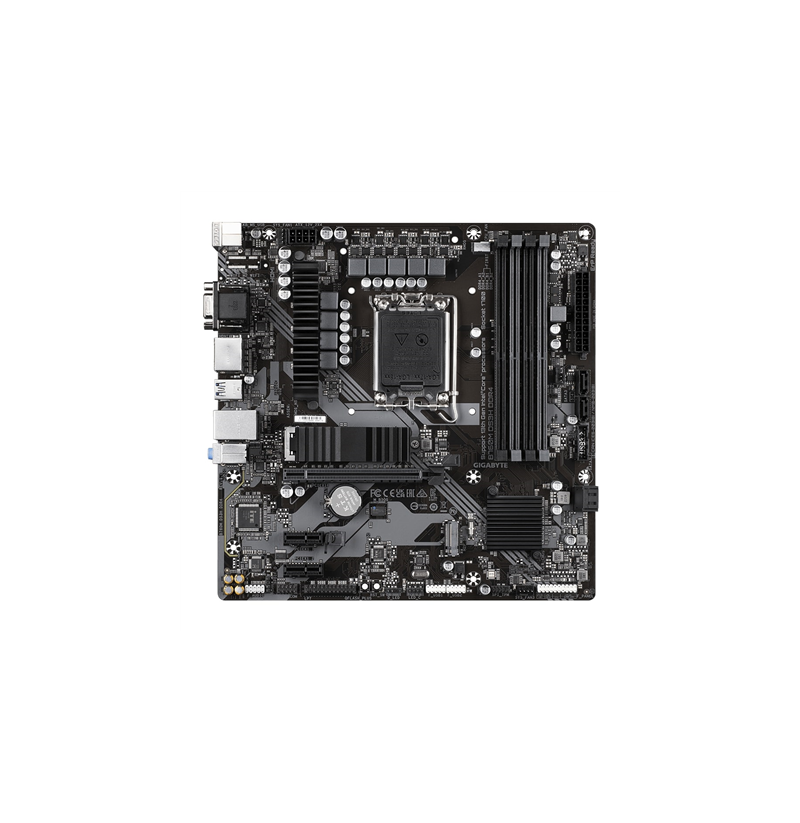

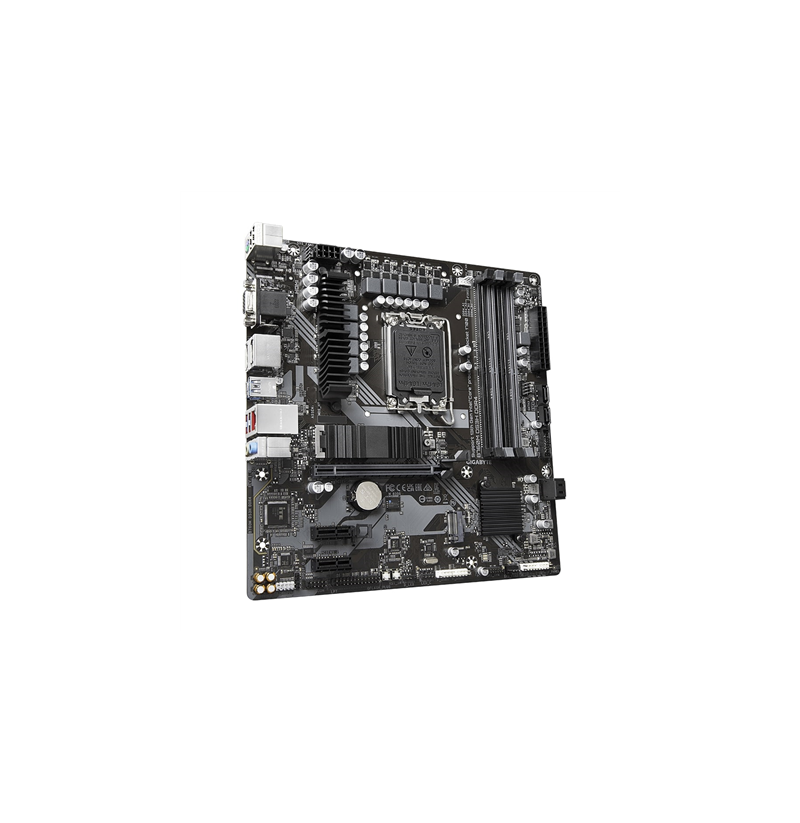

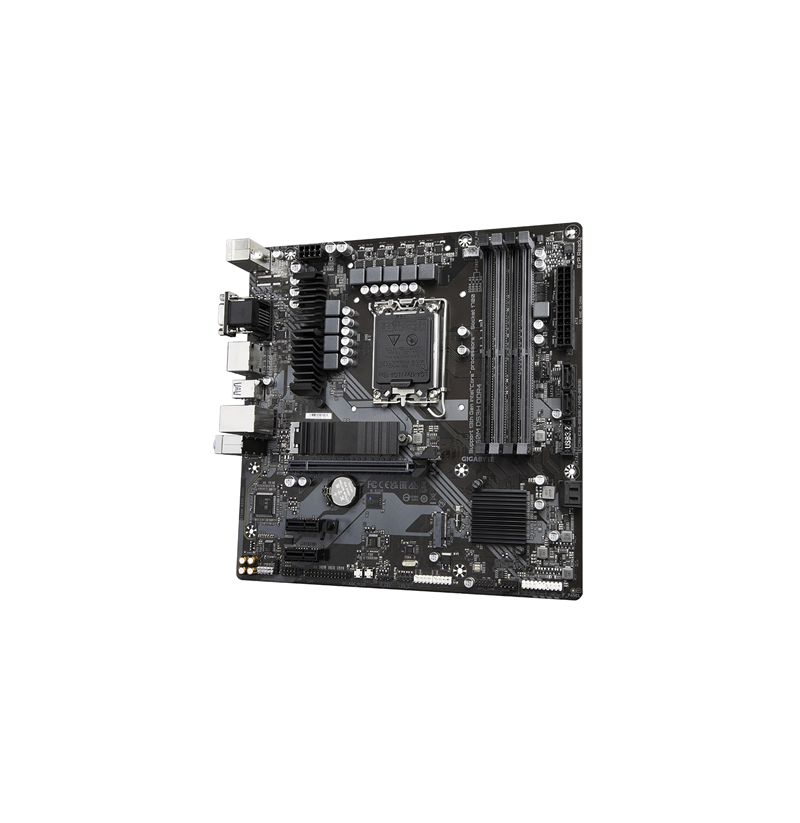

Gigabyte | B760M DS3H DDR4 1.0 M

Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor manufacturer: Intel
Processor socket: LGA 1700
Number of displays supported: 4
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 11, Windows 10
Motherboard chipset: Intel B760
PC health monitoring: Water cooling, Voltage, Fan, Temperature
Power source type: ATX
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Supported memory clock speed (max): 4933 MHz
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory types supported by processor: DDR4-SDRAM
Supported memory clock speeds: 3800, 3333, 3733, 4300, 4400, 4500, 3000, 3466, 4133, 4000, 3666, 4800, 4933, 2400, 4700, 3200, 2666, 4266, 3400, 3866, 2933, 3600, 3300, 4600 MHz, 2133
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Width: 244 mm
Depth: 244 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 3
CPU fan connector: Yes
TPM connector: Yes
Number of M.2 (M) slots: 2
Front panel connector: Yes
Parallel connector: Yes
Serial port headers: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
RAID levels: 0, 10, 5, 1
Number of storage drives supported: 6
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

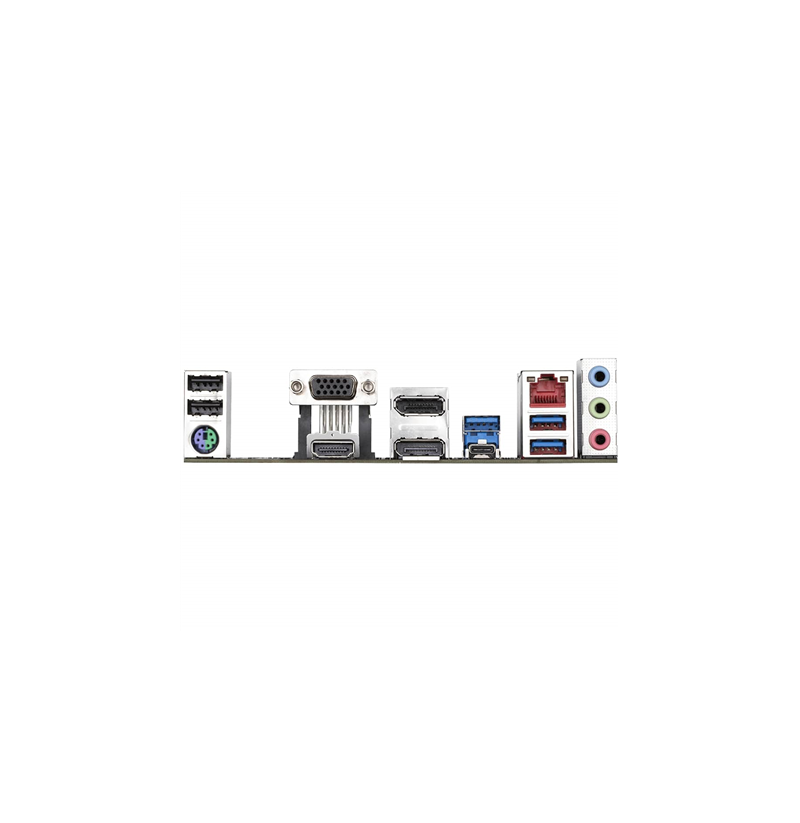

Headphone outputs: 1
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
PS/2 ports quantity: 1
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
