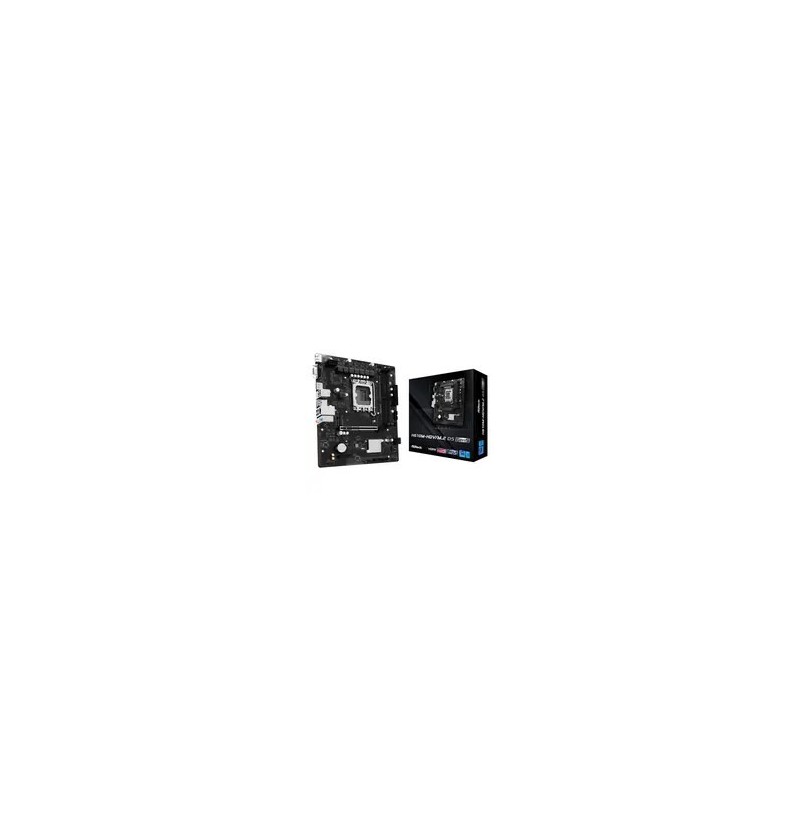

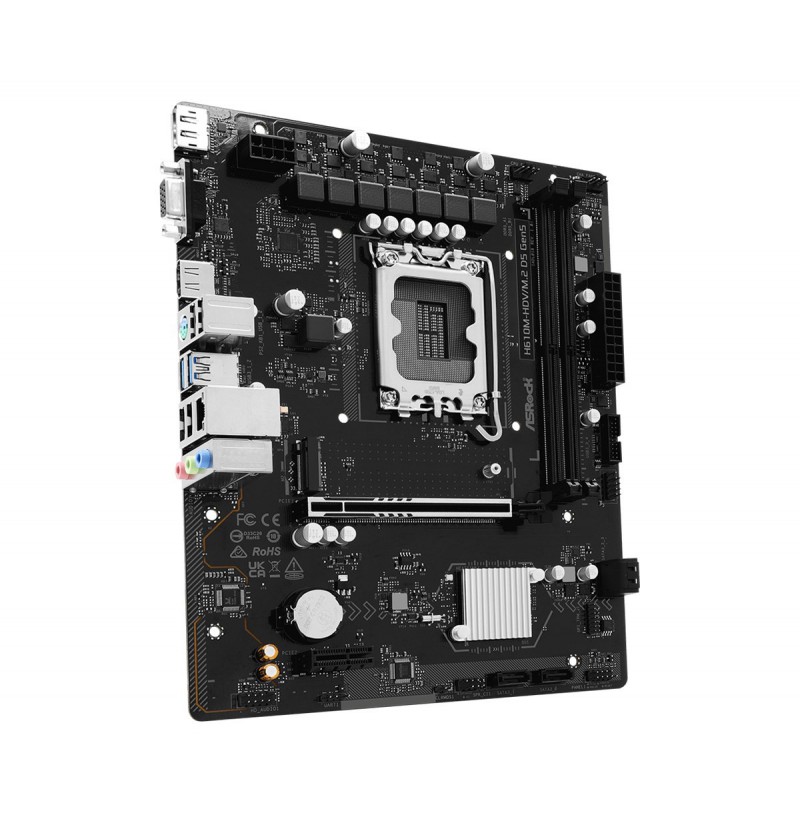

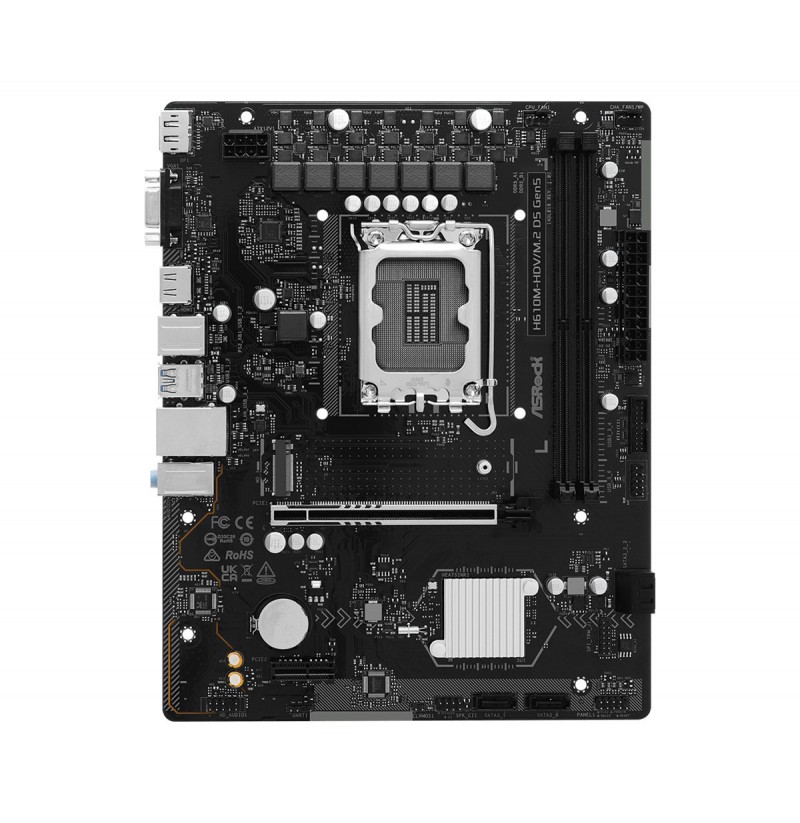

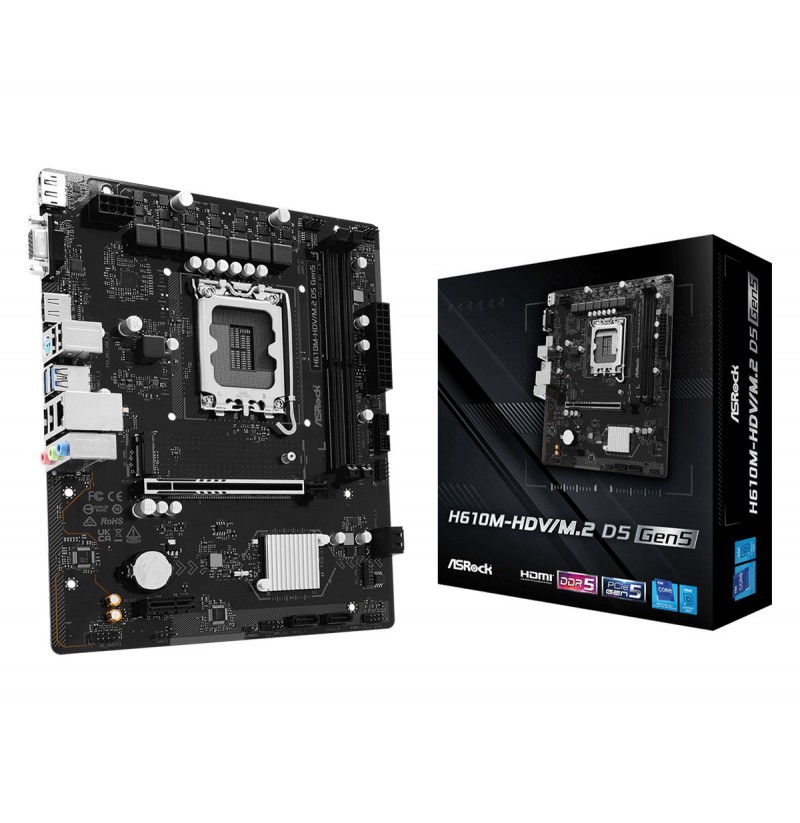

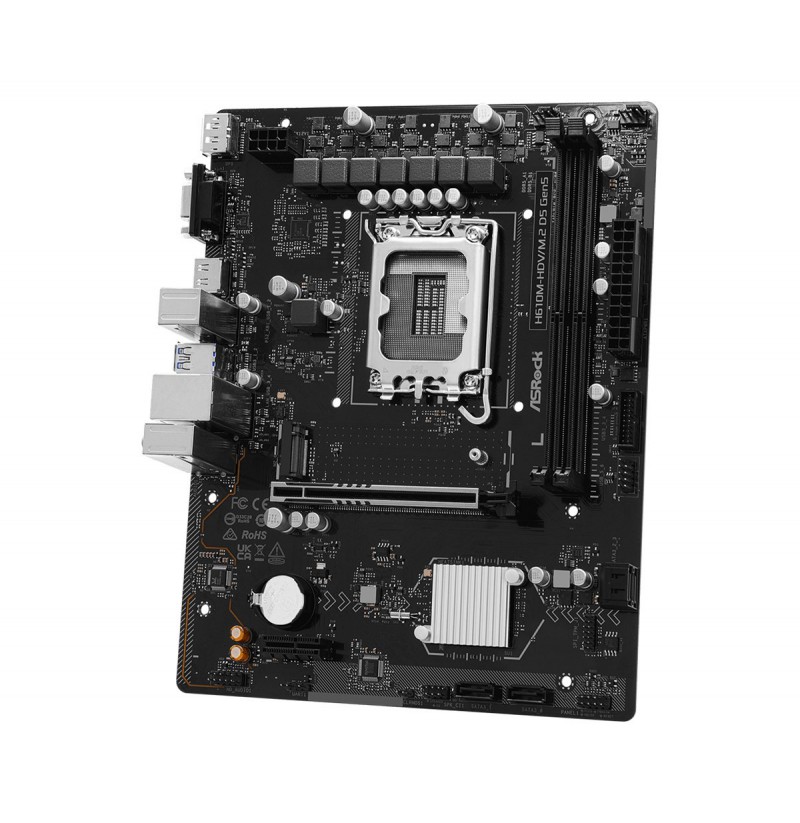

Asrock H610M-HDV/M.2 D5 Gen5 Intel H610 LGA 1700 micro ATX

Compatible processor series: Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i9 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i7 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Processor socket: LGA 1700
HDCP version: 2.3
HDCP: Yes
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Motherboard chipset: Intel H610
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
ECC сompatibility: Non-ECC
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Depth: 193 mm
Width: 244 mm
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Top Wi-Fi standard: Not available
Wi-Fi: No
Ethernet LAN: Yes
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
USB 2.0 connectors: 1
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
TPM connector: Yes
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of storage drives supported: 5

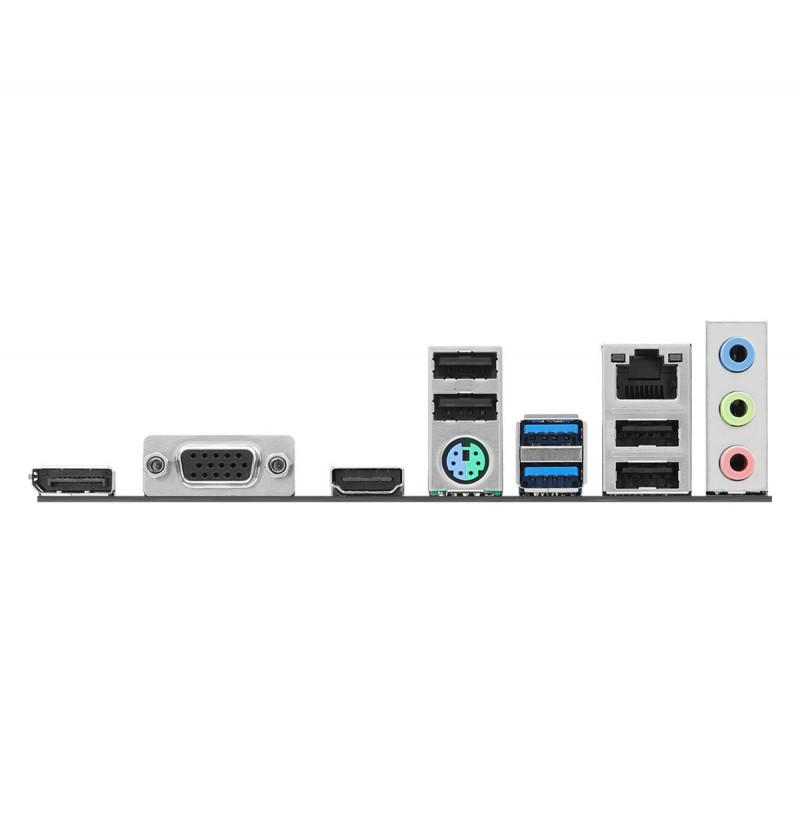

Line-in: Yes
USB 2.0 ports quantity: 4
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
