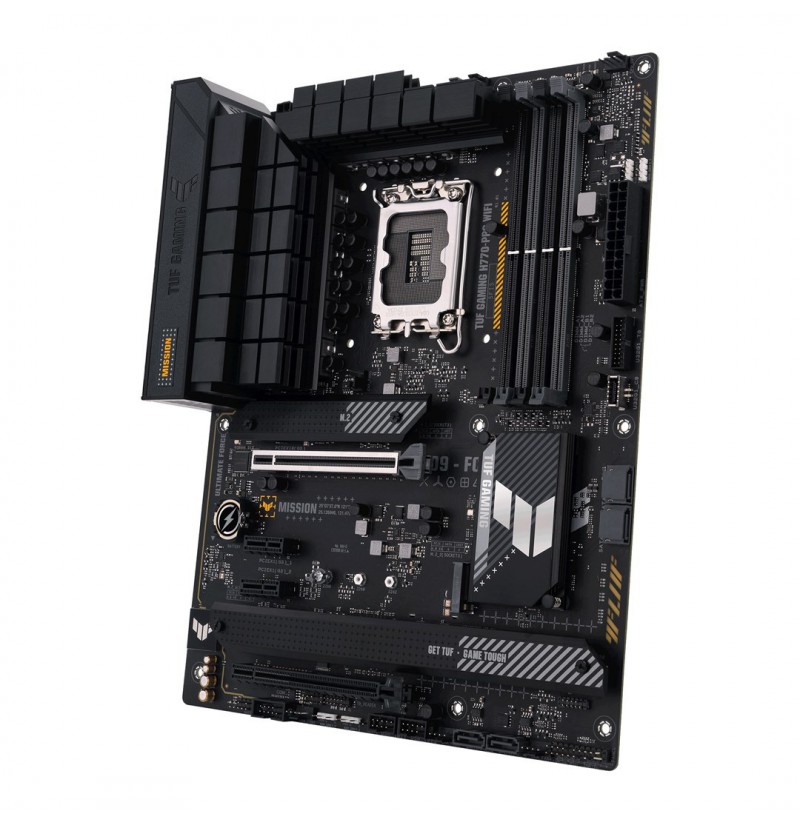

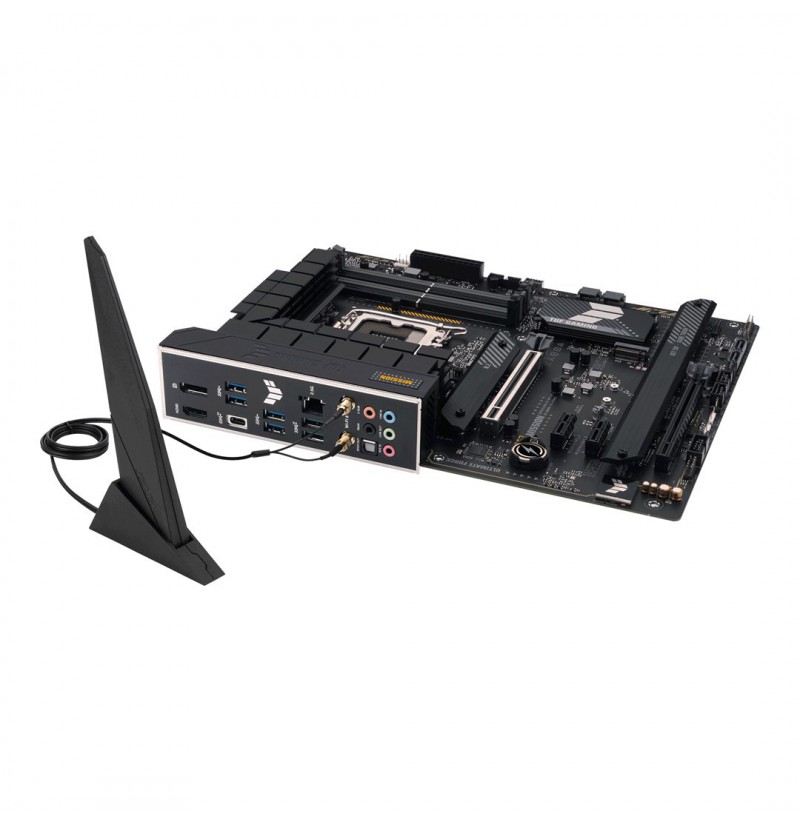

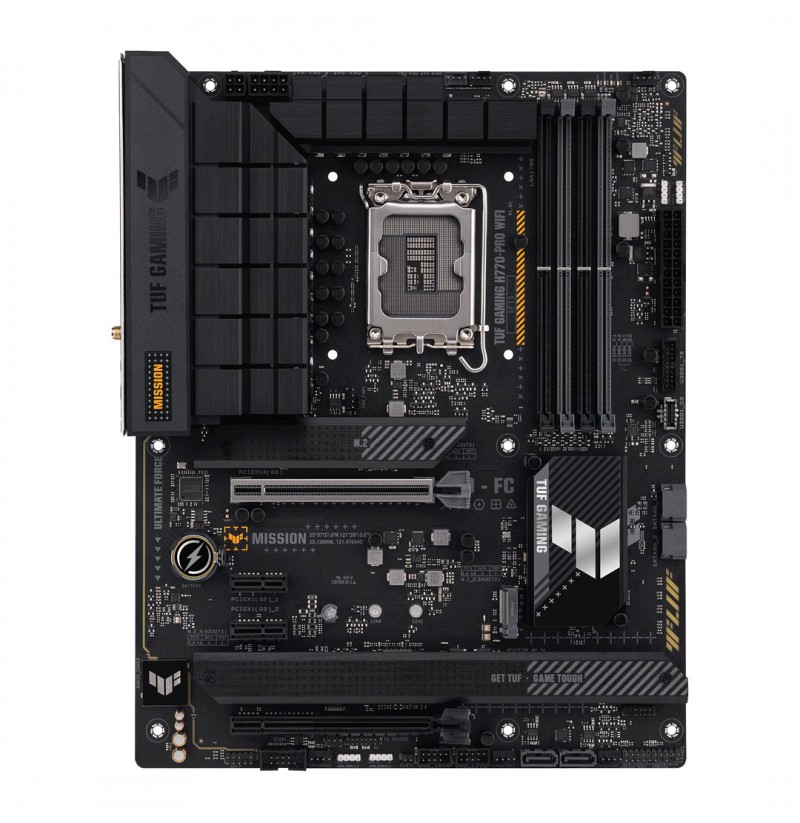

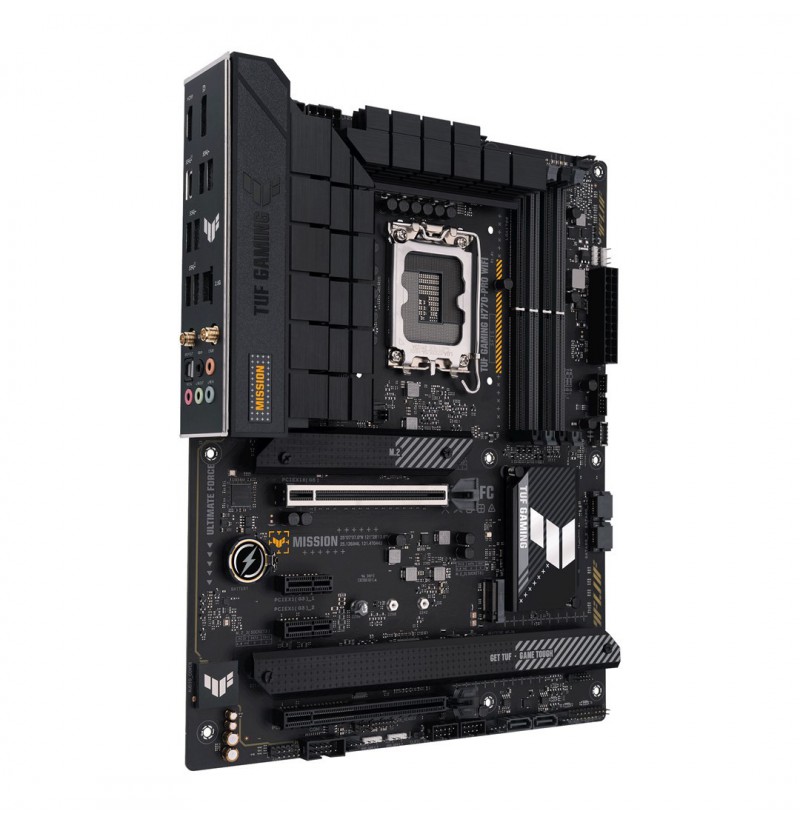

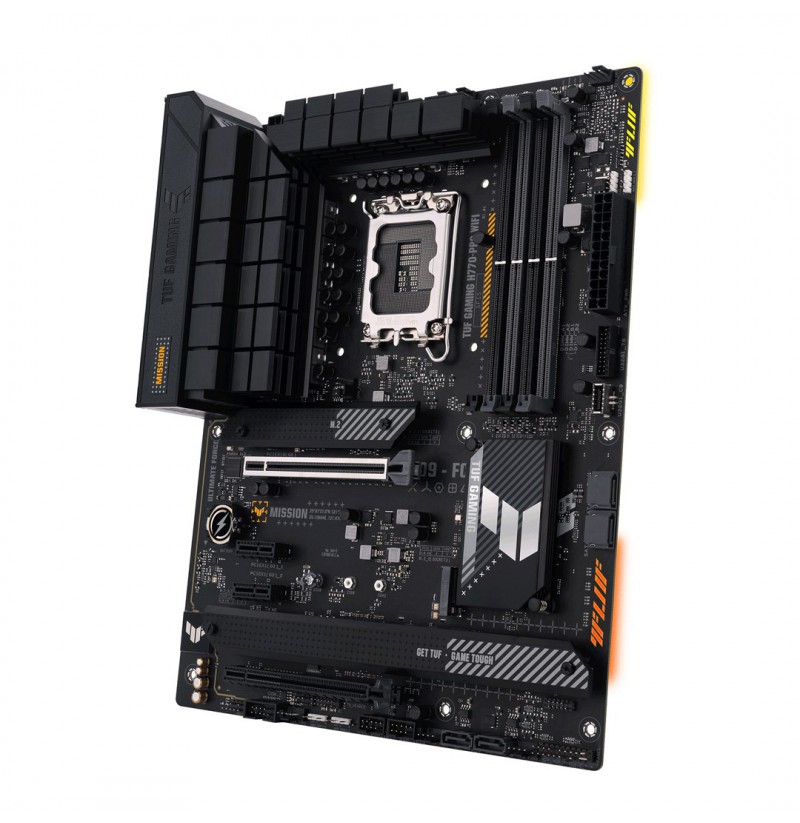

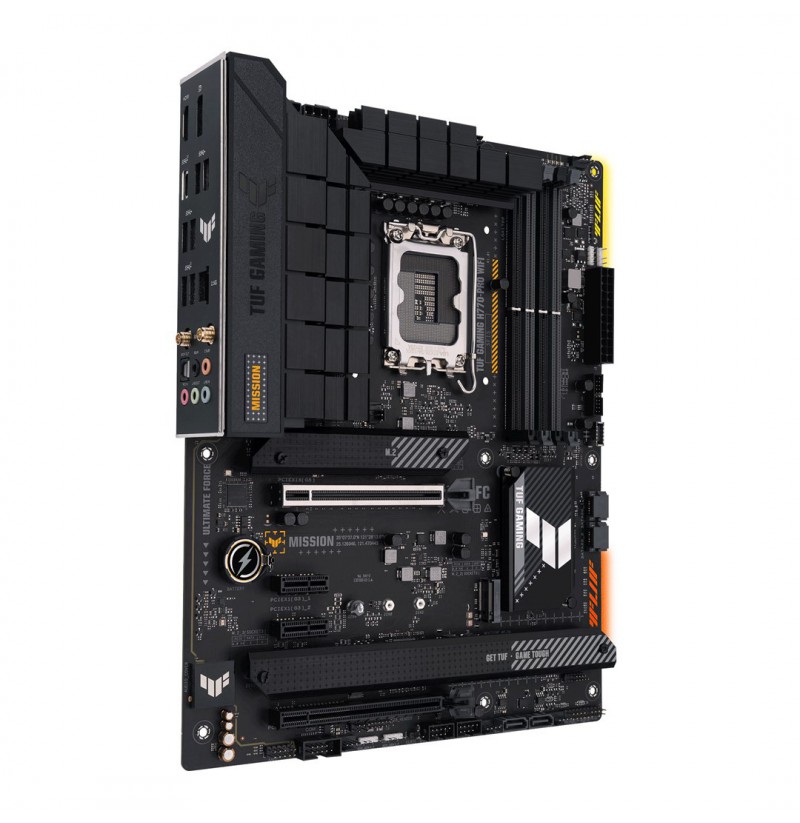

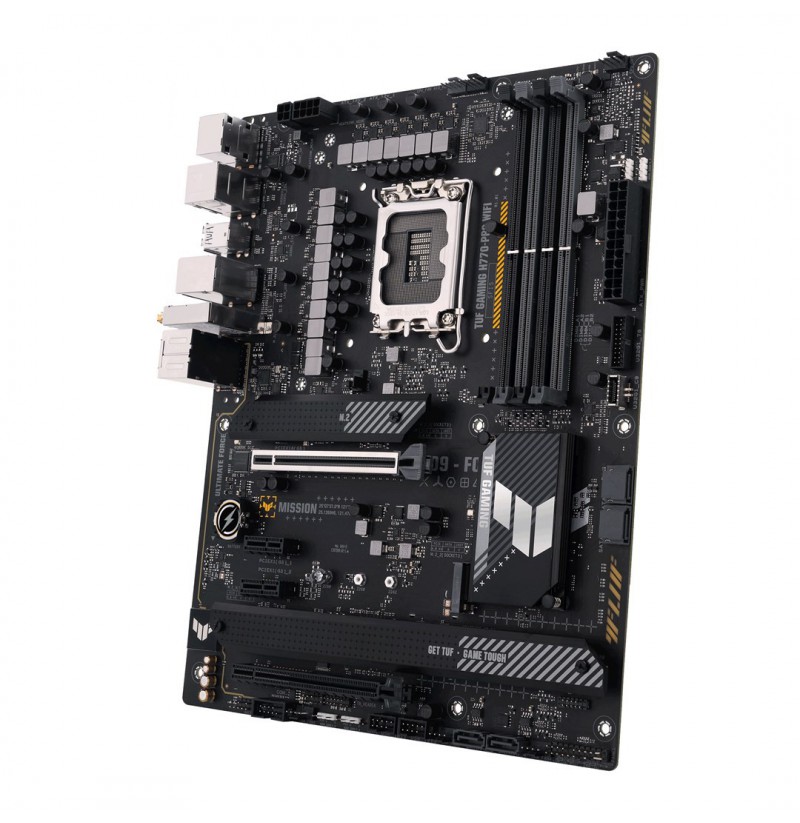

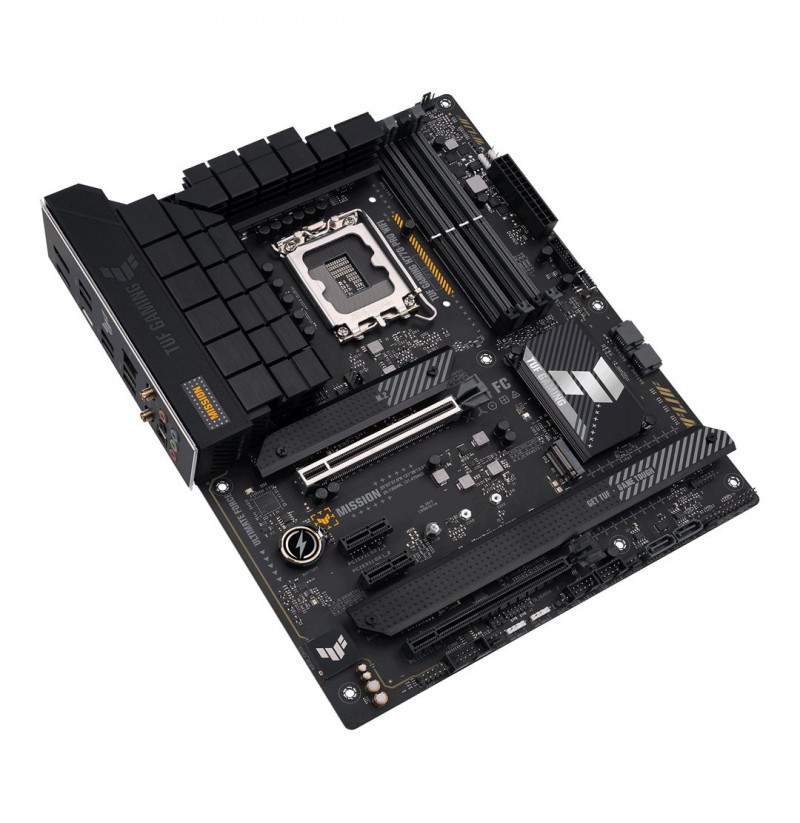

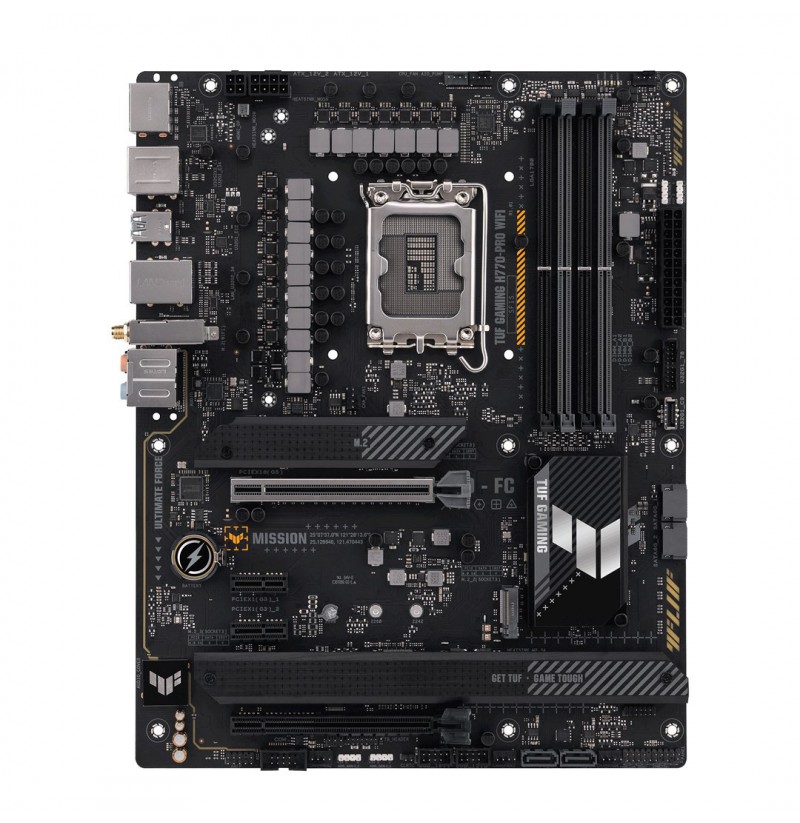

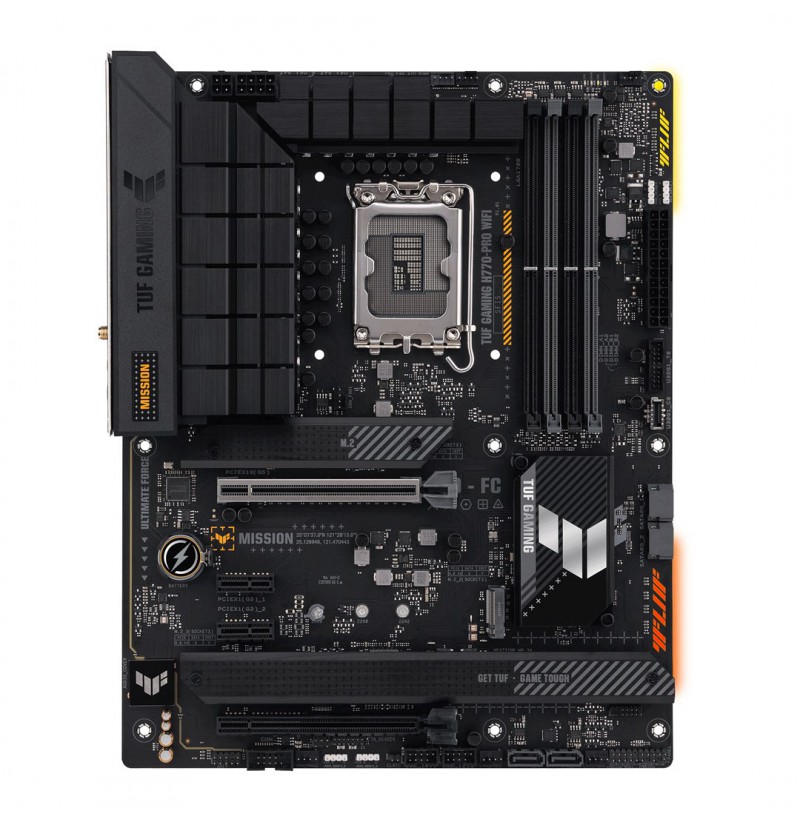

ASUS TUF GAMING H770-PRO WIFI LGA 1700 ATX

Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Parallel processing technology support: Not supported
Motherboard chipset: Intel H770
Motherboard form factor: ATX
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Power source type: ATX
Windows operating systems supported: Windows 11, Windows 10
Cooling type: Passive
Supported memory clock speeds: 6800, 6200, 5200, 6600, 4800, 5000, 7000, 5600, 7200, 6400, 6000, 5800, 5400
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 7200 MHz
ECC сompatibility: Non-ECC
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Depth: 244 mm
Width: 305 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Ethernet LAN: Yes
Wi-Fi: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Thunderbolt headers: 1
Peripheral (Molex) power connectors (4-pin): 1
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 4
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Front panel connector: Yes
Front panel audio connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
BIOS type: UEFI AMI
Package height: 270 mm
Package depth: 75 mm
Package weight: 1.98 kg
Package width: 340 mm
User guide: Yes
Cables included: SATA
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 10, 5, 1
Number of storage drives supported: 8
Number of HDDs supported: 4

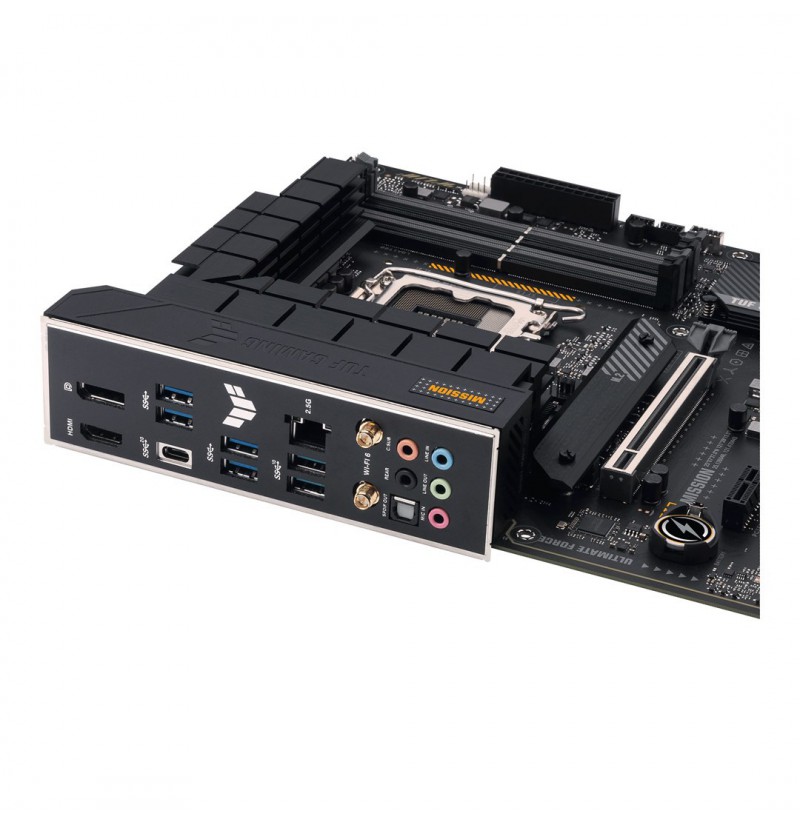

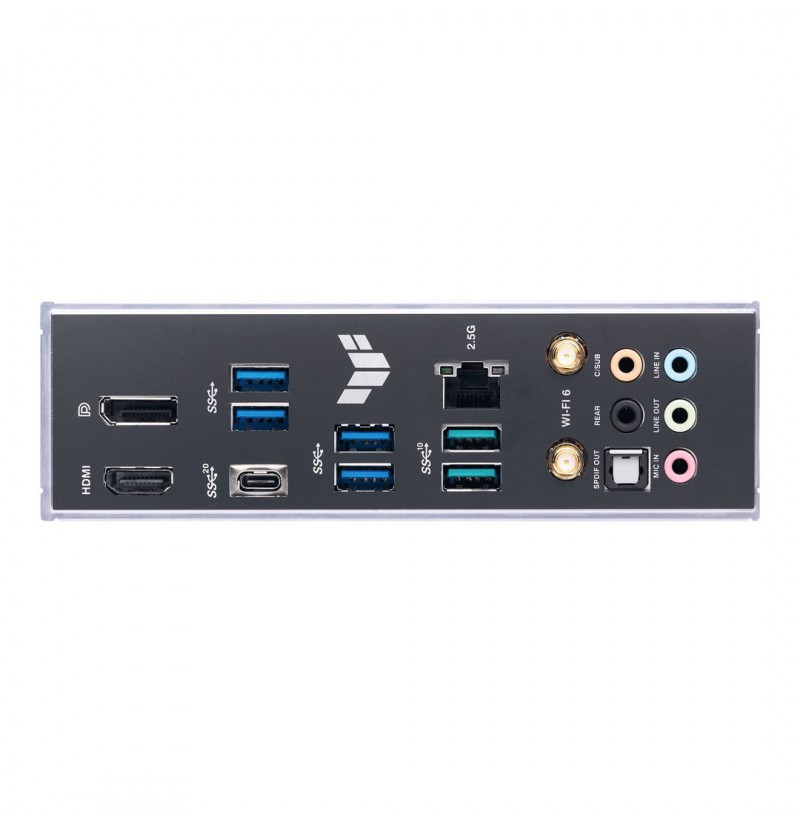

DisplayPort version: 1.4
S/PDIF out port: Yes
DisplayPorts quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
HDMI ports quantity: 1
WiFi-AP antenna jack: 2
Line-in: Yes
Microphone in: Yes
Headphone outputs: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 4.x) slots: 1
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
