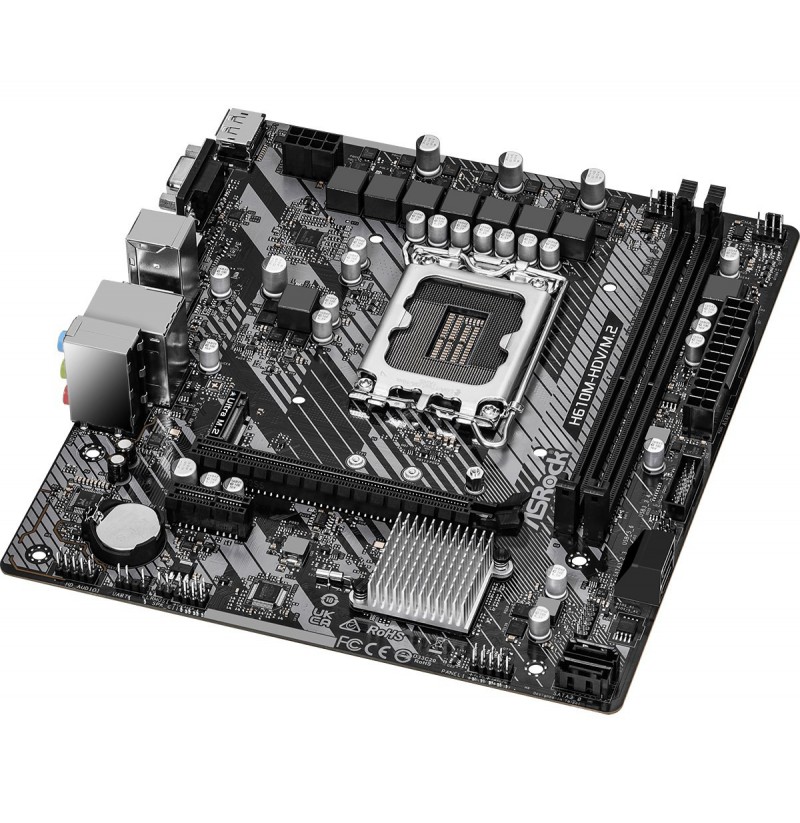

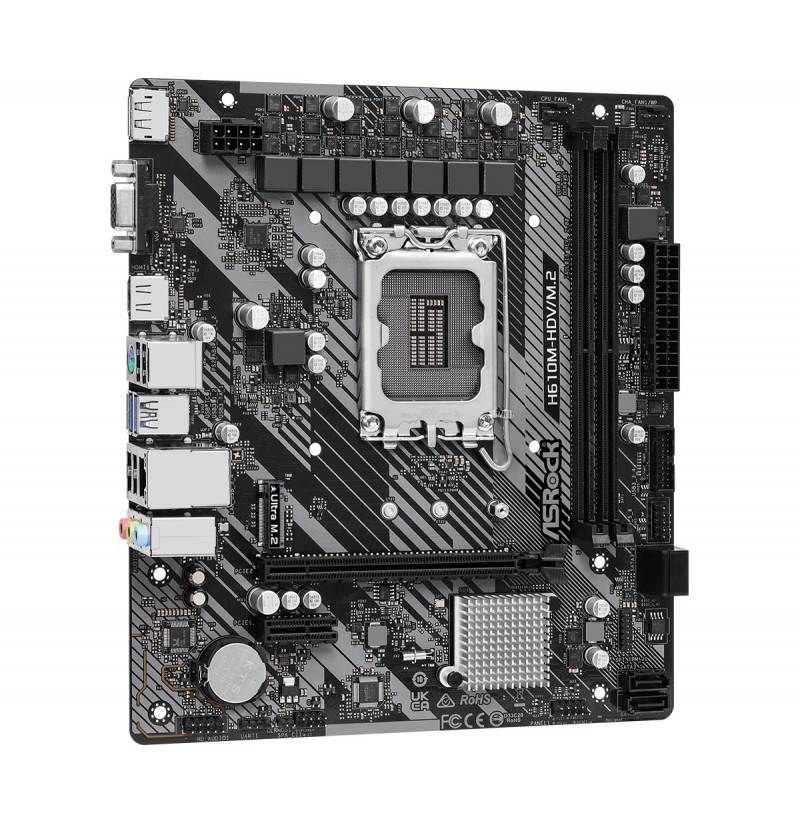

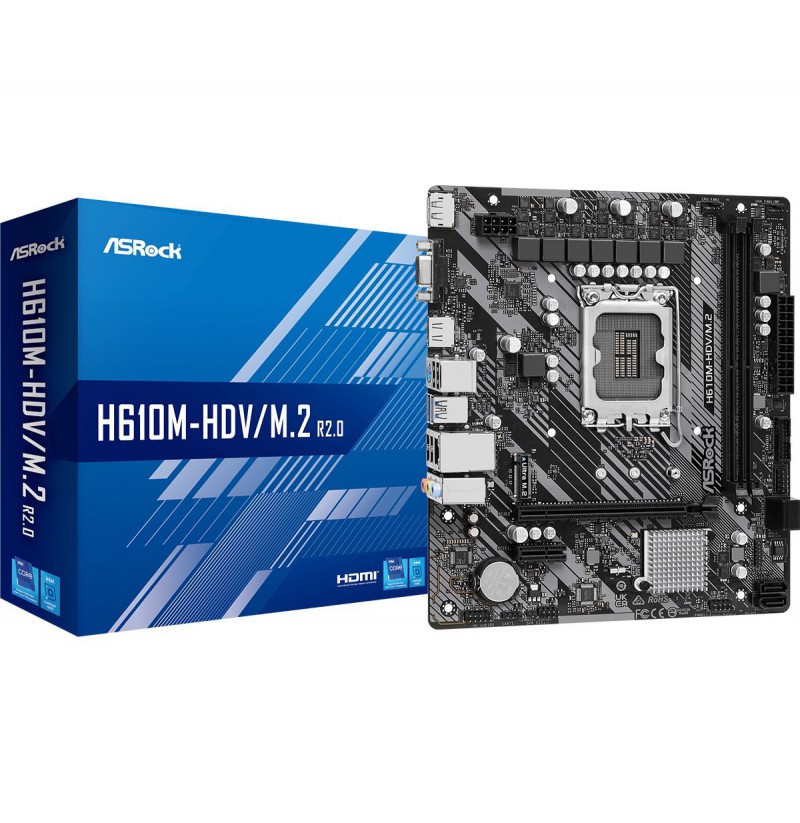

Mainboard ASRock H610M-HDV/M.2 R2.0

Sustainability compliance: Yes
Sustainability certificates: ErP
Compliance certificates: Federal Communications Commission (FCC), CE, EuP
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Celeron® G, Intel® Core™ i5
Processor manufacturer: Intel
Processor socket: LGA 1700
Discrete graphics support: Yes
Graphics card: Intel Iris Xe Graphics
Graphics card family: Intel
HDCP: Yes
Maximum resolution: 7680 x 4320 pixels
PC health monitoring: Voltage, Water cooling, CPU, Fan
Motherboard form factor: micro ATX
Motherboard chipset: Intel H610
Component for: PC
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Product colour: Black, Grey, Silver
Motherboard chipset family: Intel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 3200 MHz
Number of memory slots: 2
Maximum internal memory: 64 GB
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Unbuffered memory: Yes
Width: 220 mm
Depth: 193 mm
Wake-on-LAN ready: Yes
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
LAN controller: Realtek RTL8111H
Chassis intrusion connector: Yes
12V power connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
TPM connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 6.0
Drivers included: Yes
Cables included: SATA
Screws included: Yes
Supported storage drive interfaces: M.2

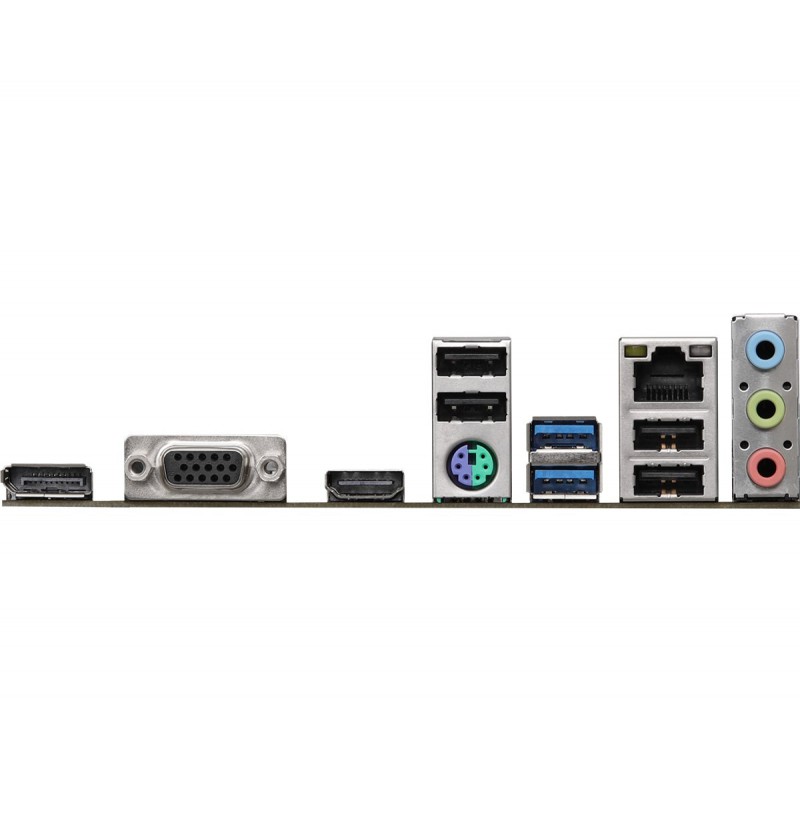

PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
Microphone in: Yes
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
USB connector type: USB Type-A
Line-in: Yes
HDMI version: 2.1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
