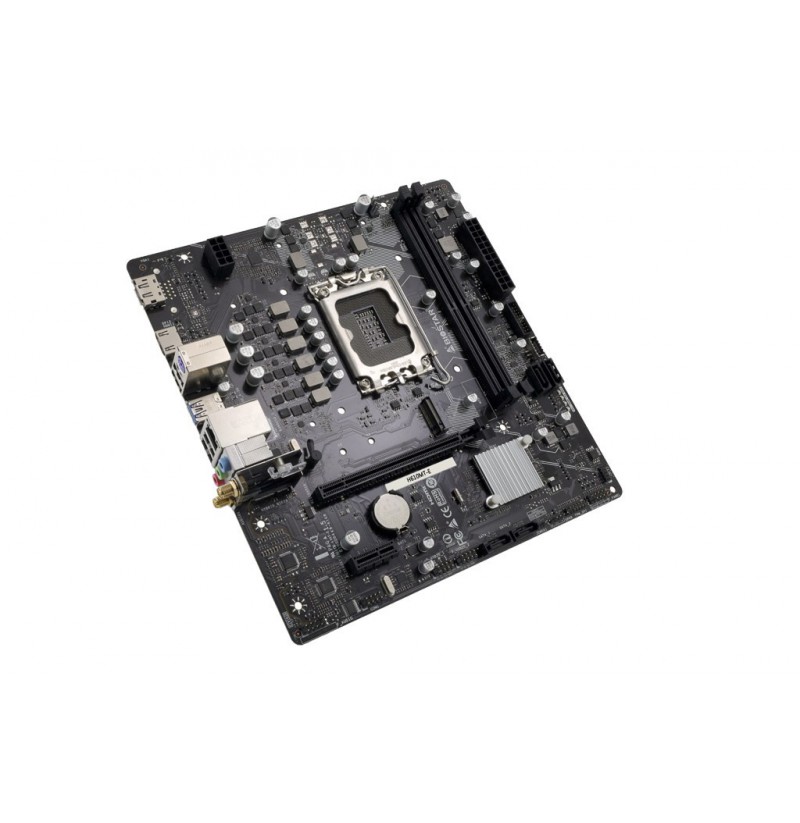

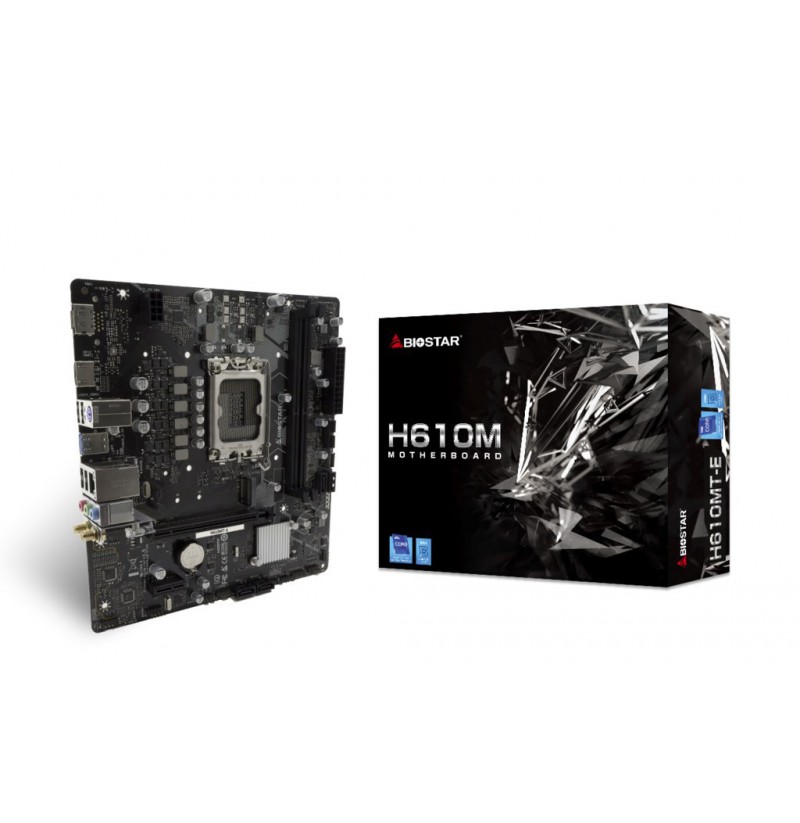

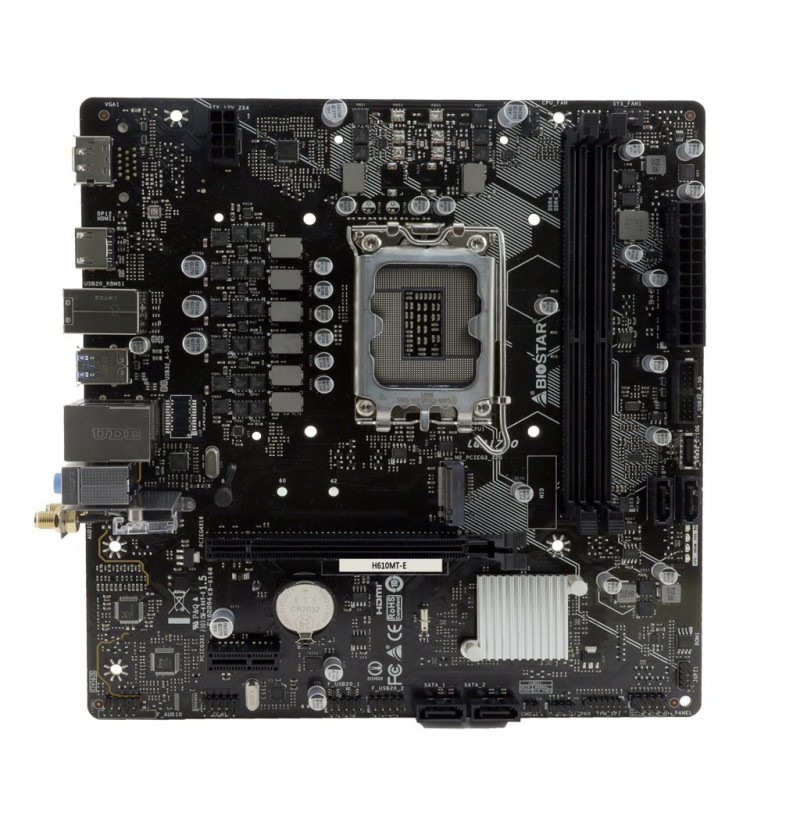

Mainboard BIOSTAR H610MTE

Compatible processor series: Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel Core i5 12th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel® Pentium®, Intel Core i3 13th Gen, Intel® Celeron®, Intel Core i3 12th Gen
Processor manufacturer: Intel
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: Intel H610
Motherboard form factor: micro ATX
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 2400, 3200, 2666, 1866, 2133 MHz, 2933
Memory channels: Dual-channel
Memory slots type: DIMM
Maximum internal memory: 64 GB
Number of memory slots: 2
ECC сompatibility: Non-ECC
Width: 216 mm
Depth: 228 mm
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Front panel audio connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of COM connectors: 1
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
CPU fan connector: Yes
TPM connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
BIOS type: UEFI AMI
Drivers included: Yes
Cables included: SATA
Supported storage drive interfaces: M.2, SATA III
Microphone in: Yes
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
