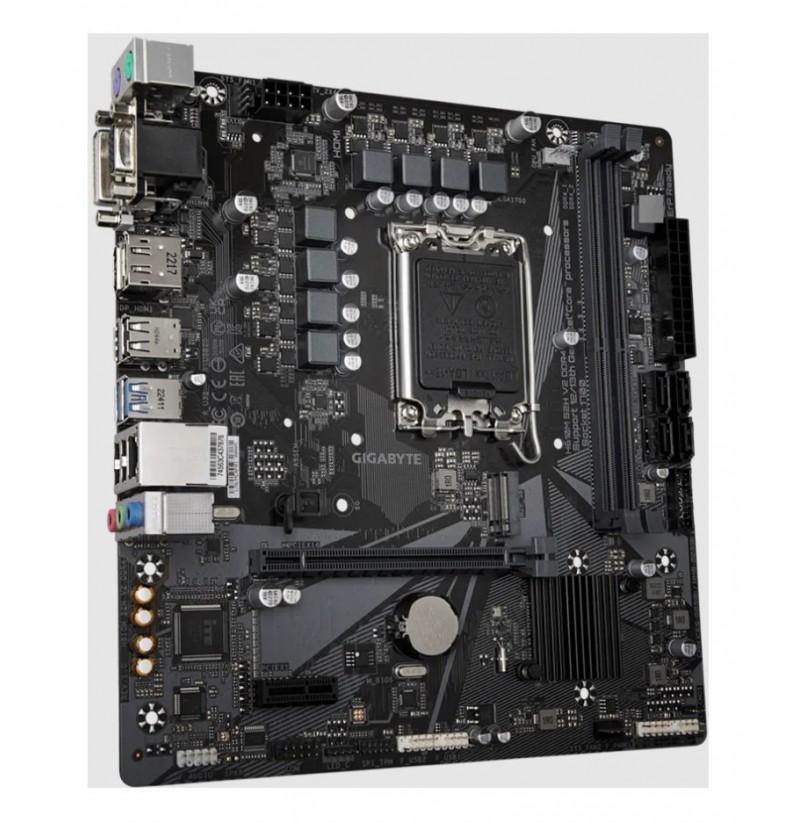

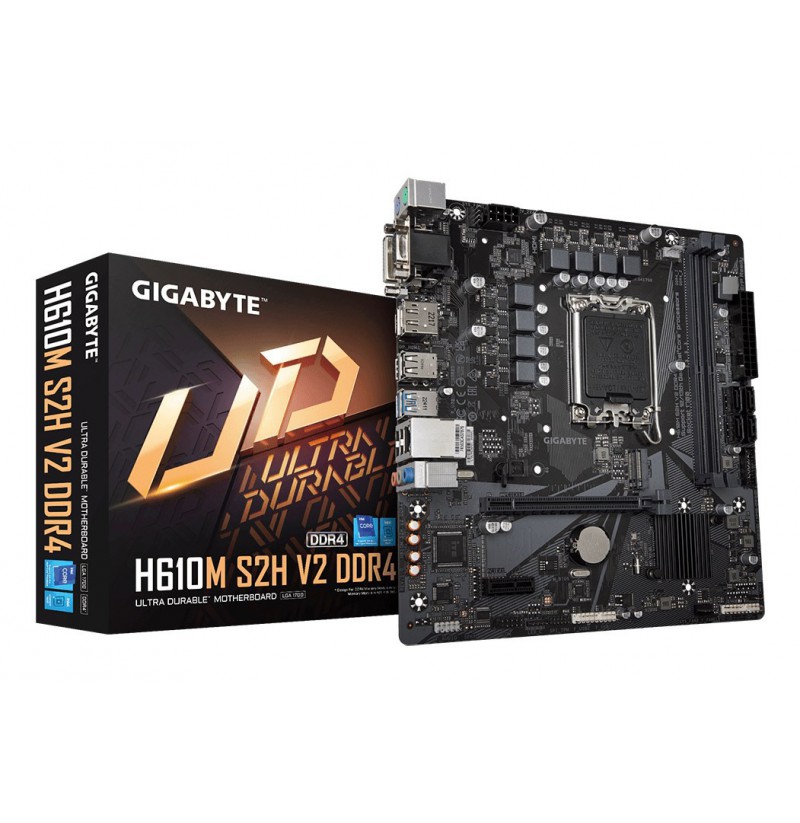

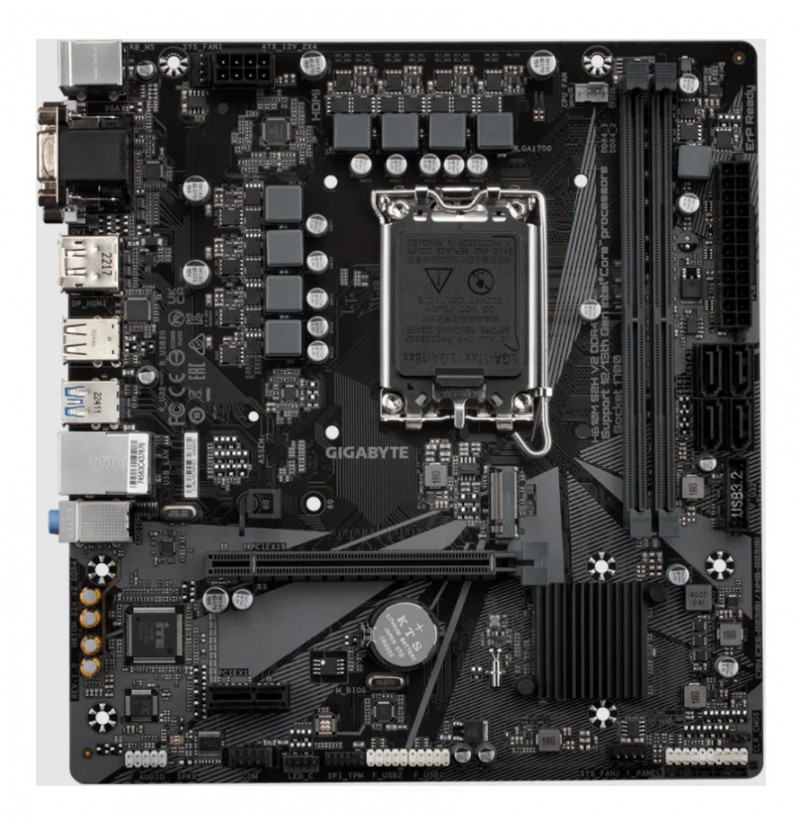

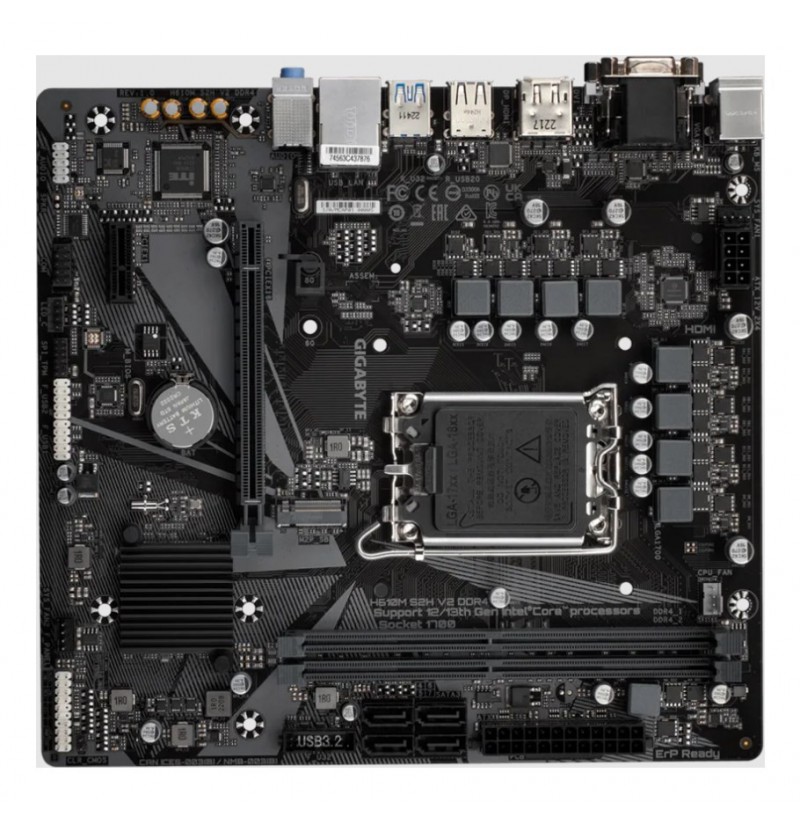

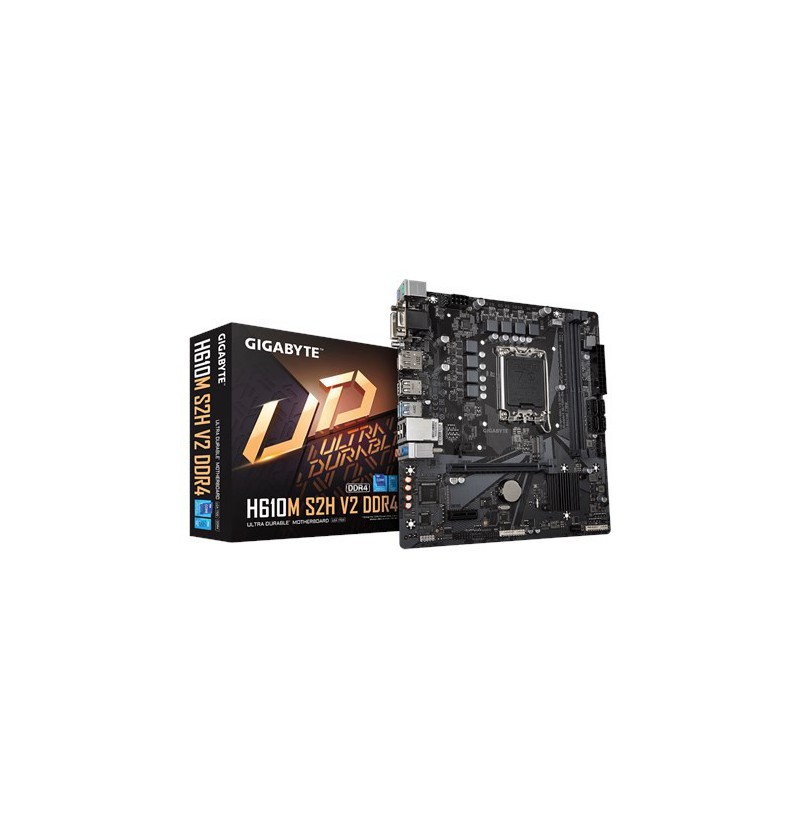

GIGABYTE H610M S2H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4

GIGABYTE H610M S2H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Warranty period: 3 year(s)
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Maximum internal memory supported by processor: 64 GB
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Graphics card family: Intel
On-board graphics card: Yes
Graphics card: HD Graphics
DirectX version: 12.0
On-board graphics card model: Intel® HD Graphics
HDCP: Yes
Cooling type: Active
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Component for: PC
PC health monitoring: Water cooling, Temperature, Voltage, Fan, LED
Motherboard form factor: micro ATX
Product colour: Bronze
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel H610 Express
Supported memory clock speed (max): 3200 MHz
Number of memory slots: 2
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
ECC сompatibility: ECC & Non-ECC
Supported memory module capacities: 12GB, 32GB, 2GB, 4GB, 16GB, 1GB, 8GB
Supported memory clock speeds: 2133 MHz, 2933, 3000, 2400, 3200, 2666 MHz
Unbuffered memory: Yes
Maximum internal memory: 64 GB
Height: 35 mm
Width: 230 mm
Depth: 215 mm
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Serial port headers: 1
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 2
Front panel connector: Yes
TPM connector: Yes
CPU fan connector: Yes
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
12V power connector: Yes
Total number of SATA connectors: 4
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Front panel audio connector: Yes
ACPI version: 5.0
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Clear CMOS button: Yes
System Management BIOS (SMBIOS) version: 2.7
BIOS memory size: 128 Mbit
Desktop Management Interface (DMI) version: 2.7
Package weight: 857 g
Package width: 265 mm
Package depth: 265 mm
Package height: 54 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included: Yes
Number of HDDs supported: 4
Number of storage drives supported: 5
Supported storage drive interfaces: M.2, SATA
Supported storage drive types: HDD & SSD

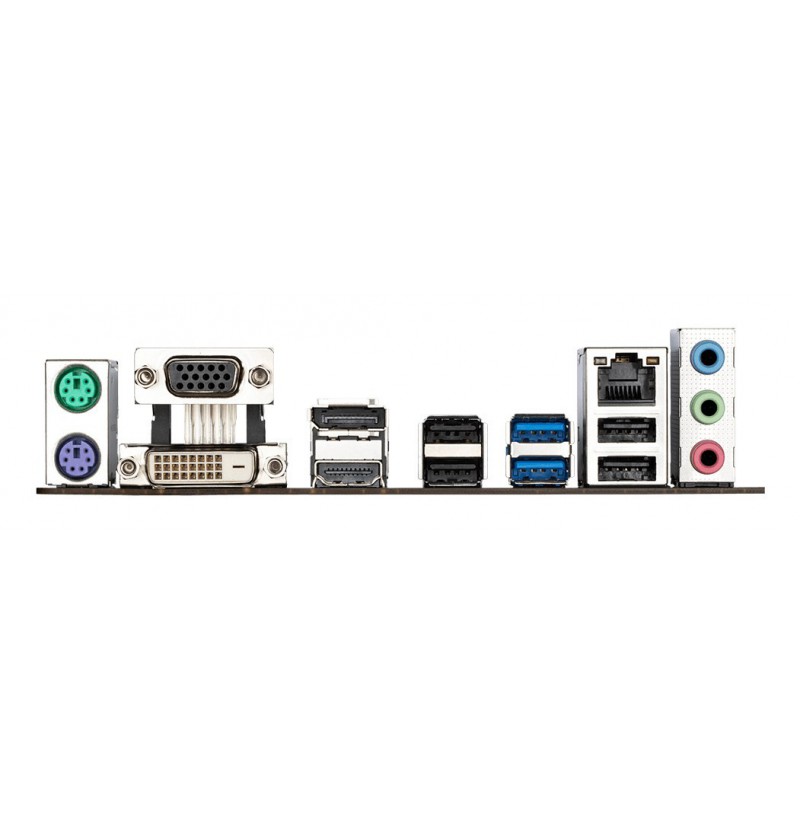

HDMI ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 2
DVI-D ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Headphone outputs: 1
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
Number of M.2 (M) slots: 1
PCI Express x1 slots: 1
PCI Express x16 slots: 1
Battery type: CR2032
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Supported DIMM module capacities: 16GB, 8GB
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
