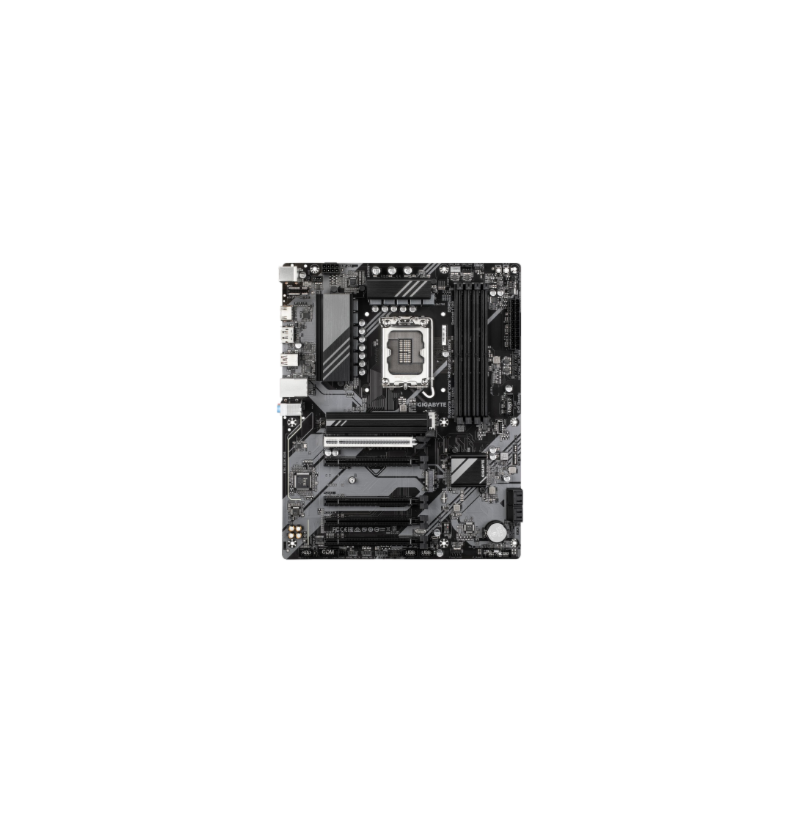

Płyta główna Gigabyte B760 DS3H GEN5

Warranty period: 3 year(s)
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Compatible processor series: Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel® Celeron®, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i7 13th Gen, Intel Core i3 12th Gen, Intel Core i9 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i3 13th Gen, Intel Core i9 13th Gen
Processor manufacturer: Intel
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
DirectX version: 12.0
PC health monitoring: Voltage, Temperature, Water cooling, Fan
Product colour: Dark brown
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard form factor: ATX
Motherboard chipset: Intel B760 Express
Motherboard chipset family: Intel
Power source type: ATX
Cooling type: Passive
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Maximum internal memory: 256 GB
Supported memory clock speeds: 5600, 5200, 4400, 4800
Unbuffered memory: Yes
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 5600 MHz
ECC сompatibility: ECC & Non-ECC
Memory channels: Dual-channel
Maximum internal memory per slot: 64 GB
Depth: 244 mm
Height: 35 mm
Width: 305 mm
LAN controller: Realtek RTL8111H
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
Serial port headers: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
RGB LED pin header: Yes
Number of EPS power connectors (8-pin): 1
Front panel connector: Yes
TPM connector: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 4
Number of chassis fan connectors: 4
CPU fan connector: Yes
Number of water pump connectors: 2
EPS power connector (8-pin): Yes
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Package weight: 1.5 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Screws included: Yes
Batteries included: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0, 1, 10, 5
DisplayPort version: 1.2
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
PCI Express x16 (Gen 3.x) slots: 4
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 largest key size: 2280
Number of M.2 (M) slots: 2
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
Number of battery cells: 1
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Weight: 1.32 kg
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
