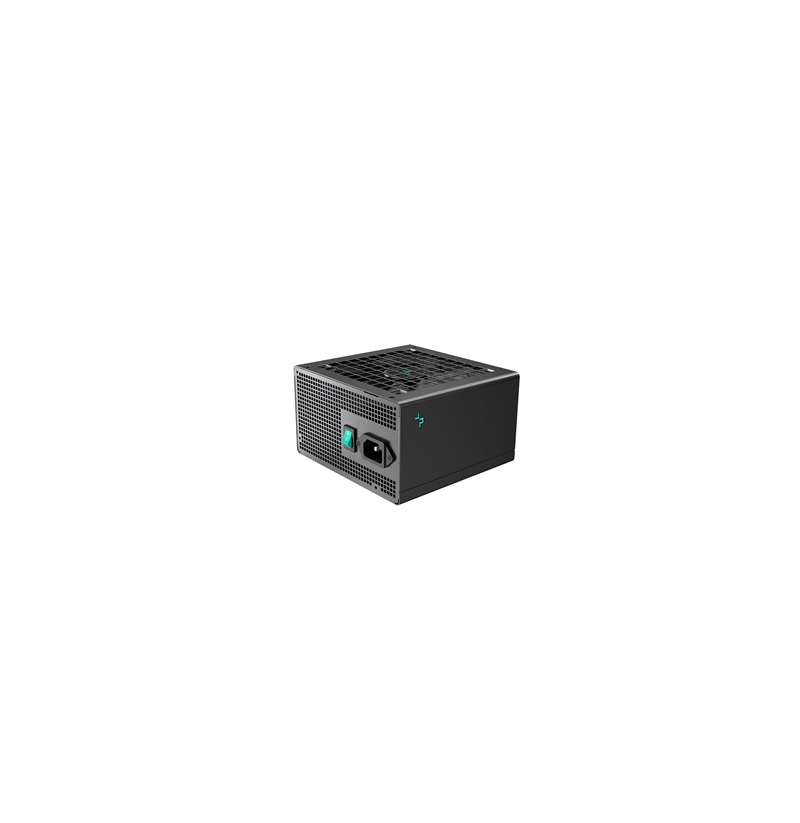

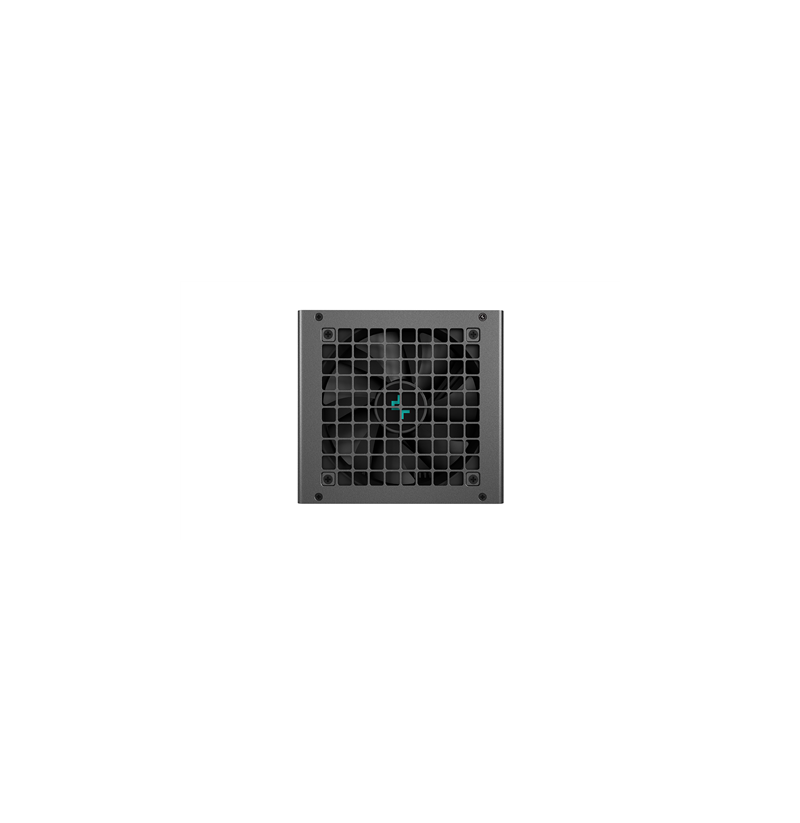

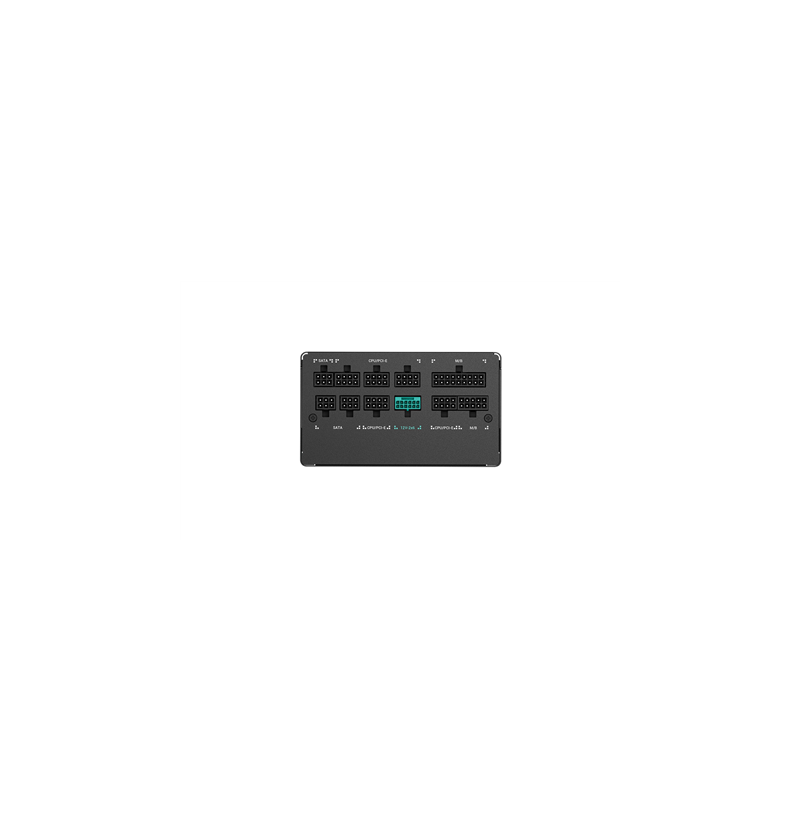

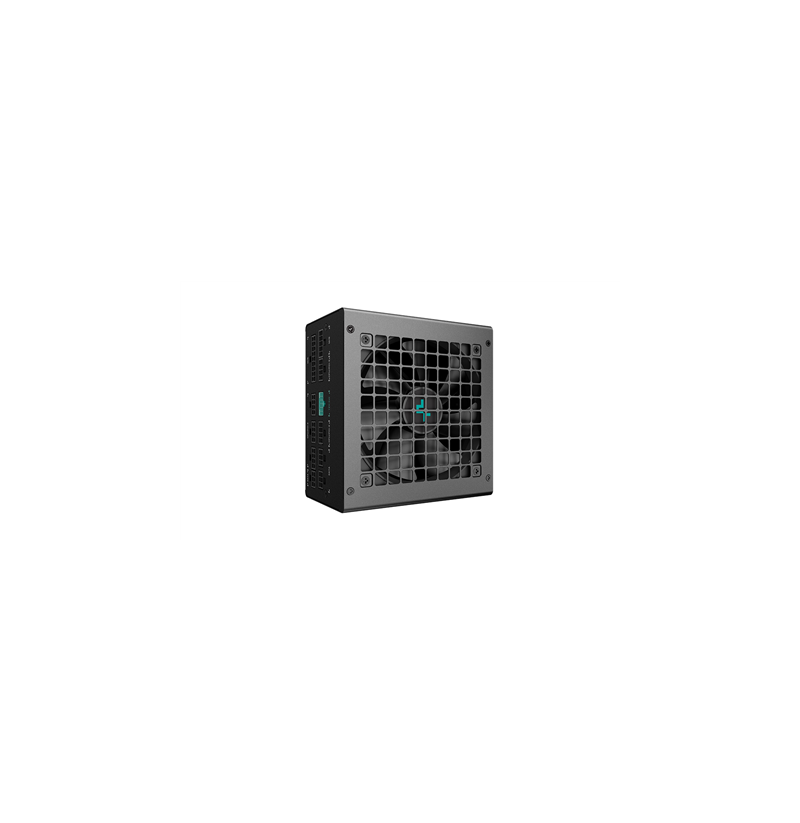

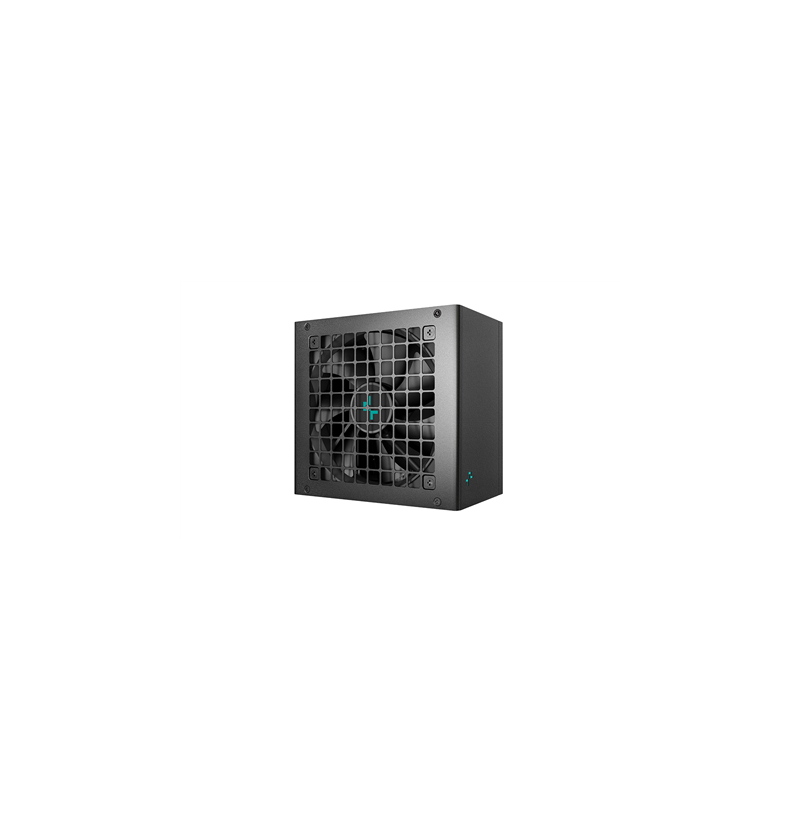

Deepcool 80Plus Gold PSU | PN650M | 650 W Padidinti

Deepcool | 80Plus Gold PSU | PN650M | 650 W

100,33 €

R-PN650M-FC0B-EU

6933412719236

Galimas pasirinkimas

 1..4 d.d.


Compliance certificates: Federal Communications Commission (FCC), CCC, RoHS, CE, WEEE, RCM, EAC
Warranty period: 10 year(s)
Sustainability certificates: Triman
Product colour: Black
Cooling type: Active
Fan location: Top
On/off switch: Yes
Fan diameter: 12 cm
Number of fans: 1 fan(s)
AC input voltage: 100 - 240 V
Input current: 10 - 5 A
AC input frequency: 50/60 Hz
Power protection features: Overheating, Surge protection, Short circuit, Over voltage, Surge & inrush protection (SIP), No load operation, Over power, Under voltage
Efficiency: 90%
Combined power (+5Vsb): 15 W
Max output current (+5V): 20 A
Combined power (+12V): 648 W
Max output current (+3.3V): 20 A
Combined power (+5V): 100 W
Max output current (-12V): 0.3 A
Total power: 650 W
Combined power (-12V): 3.6 W
Hold time: 16 ms
Max output current (+12V): 54 A
Combined power (+3.3V): 100 W
Power Factor Correction (PFC) type: Active
Max output current (+5Vsb): 3 A
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Bearing technology: FDB
Purpose: PC
ATX version: 3.1
Package type: Box
Cables included: AC
Cable tie(s) included: Yes
CPU power cable length: 70 cm
Motherboard power cable length: 55 cm
Cabling type: Fully-Modular
PCI Express power connectors (6+2 pin): 3
Peripheral (Molex) power connectors (4-pin): 2
SATA power cable length: 750, 450, 650 mm, 550
Peripheral (Molex) power cable length: 450 mm
Number of SATA power connectors: 8
PCI Express power connectors (16-pin): 1
ATX power connector (20+4 pin): Yes
CPU power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Hazard pictogram(s): GHS09: Environmental hazard, GHS02: Flammable, GHS07: Harmful
