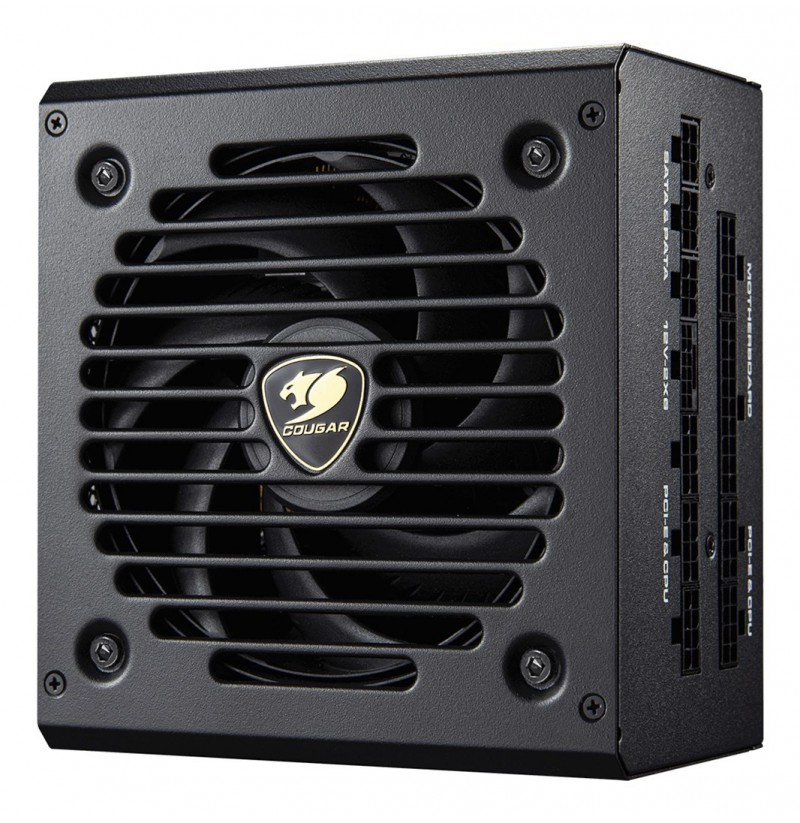

COUGAR CGR GEXP-650 power supply unit 650 W 20+4 pin ATX ATX Black

Product colour: Black

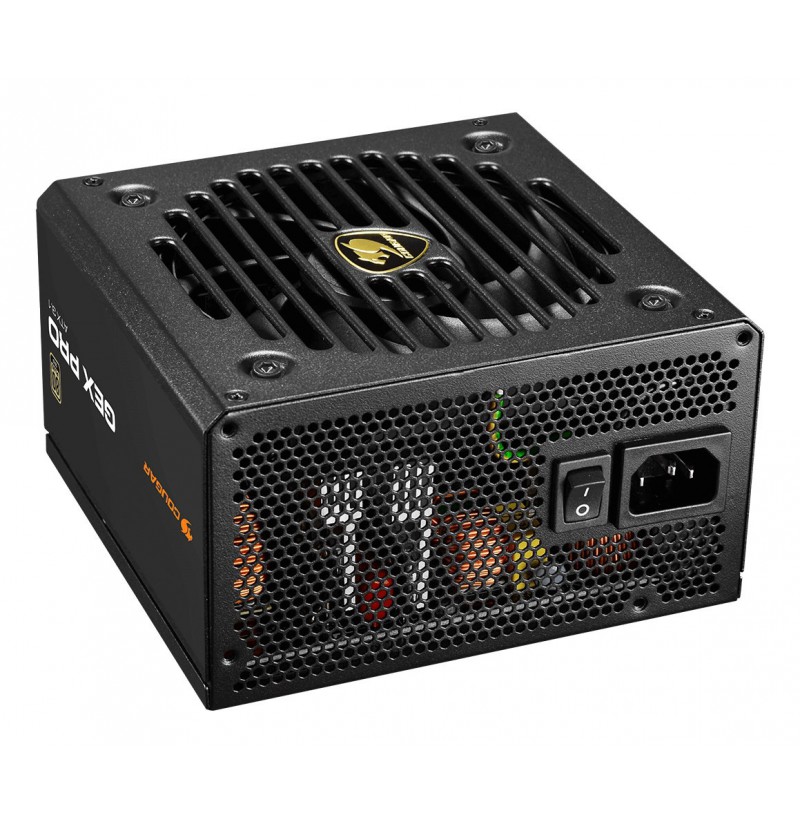

On/off switch: Yes

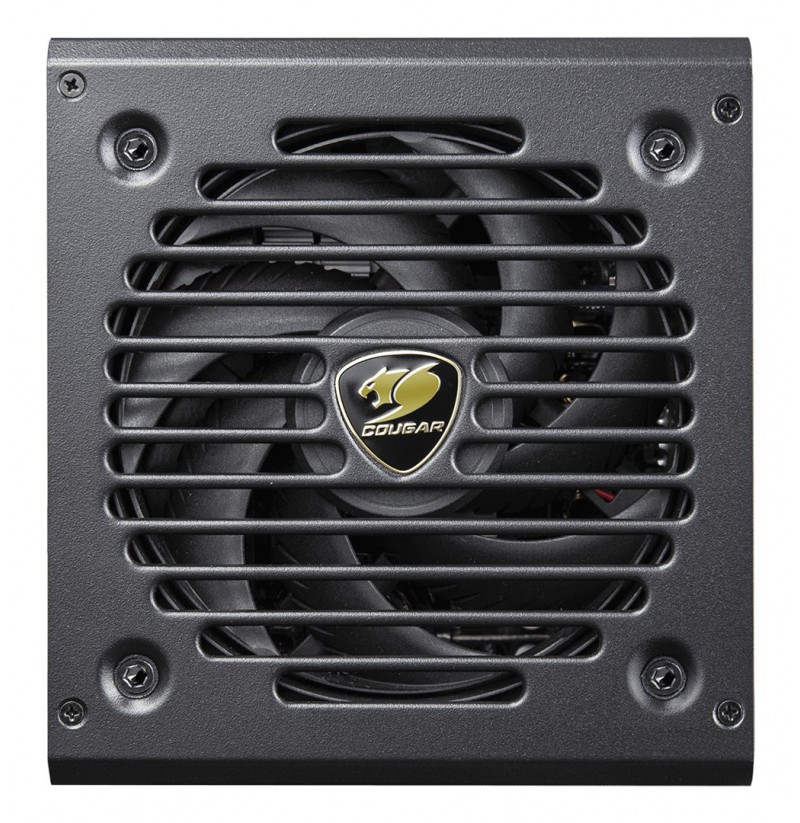

Number of fans: 1 fan(s)
Fan location: Top
Fan diameter: 12 cm
Cooling type: Active
AC input frequency: 50/60 Hz
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Under voltage, Over current, Short circuit, Over voltage, Over power
Combined power (+3.3V): 100 W
Combined power (+5V): 100 W
Total power: 650 W
Max output current (+12V): 54.1 A
Max output current (+3.3V): 20 A
Efficiency: 91%
Combined power (+12V): 649.2 W
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Input current: 10-5 A
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 15 W
Max output current (+5V): 20 A
Operating relative humidity (H-H): 20 - 85%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 40 °C
Height: 56 mm
Width: 150 mm
Depth: 140 mm
Weight: 2.05 kg
Power supply unit (PSU) form factor: ATX
Purpose: PC
Bearing technology: HDB
ATX version: 3.1

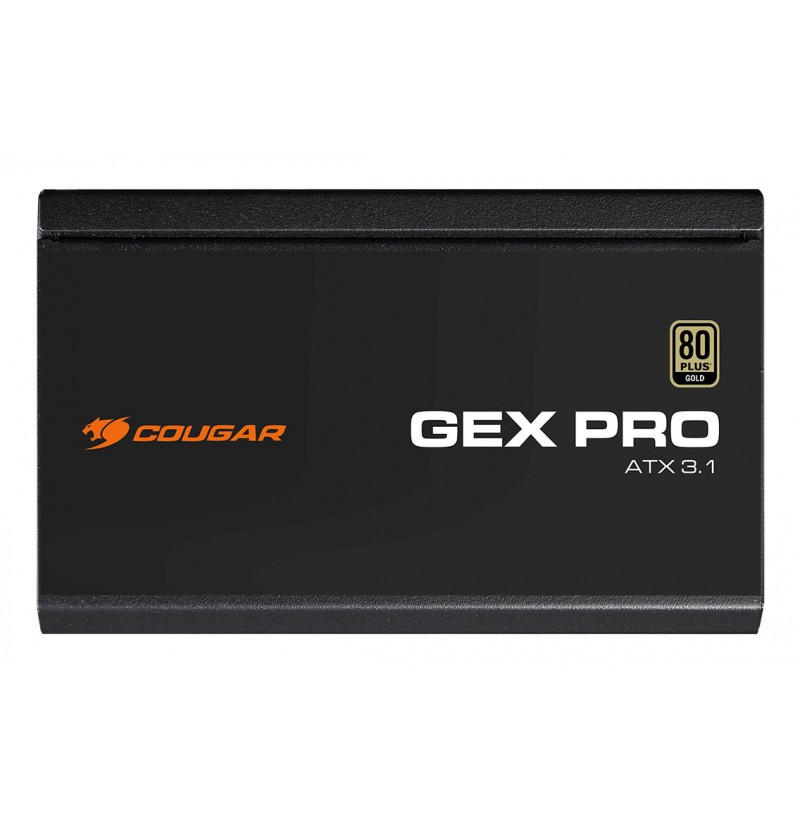

80 PLUS certification: 80 PLUS Gold
Package weight: 2.07 kg
Package depth: 330 mm

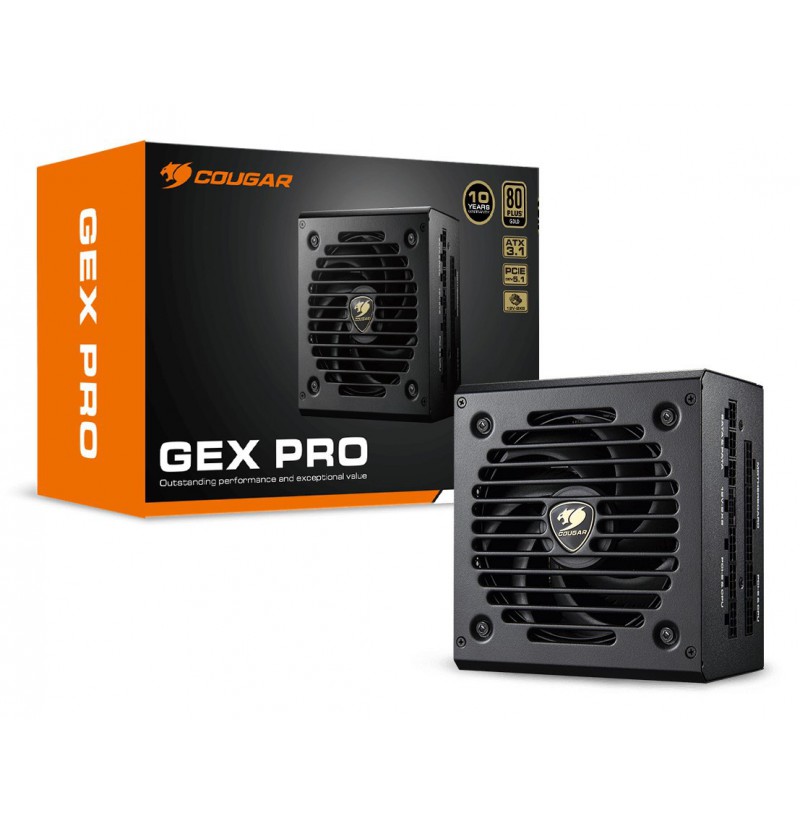

Package type: Box
Package height: 107 mm
Package width: 215 mm
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE, EAC, UKCA

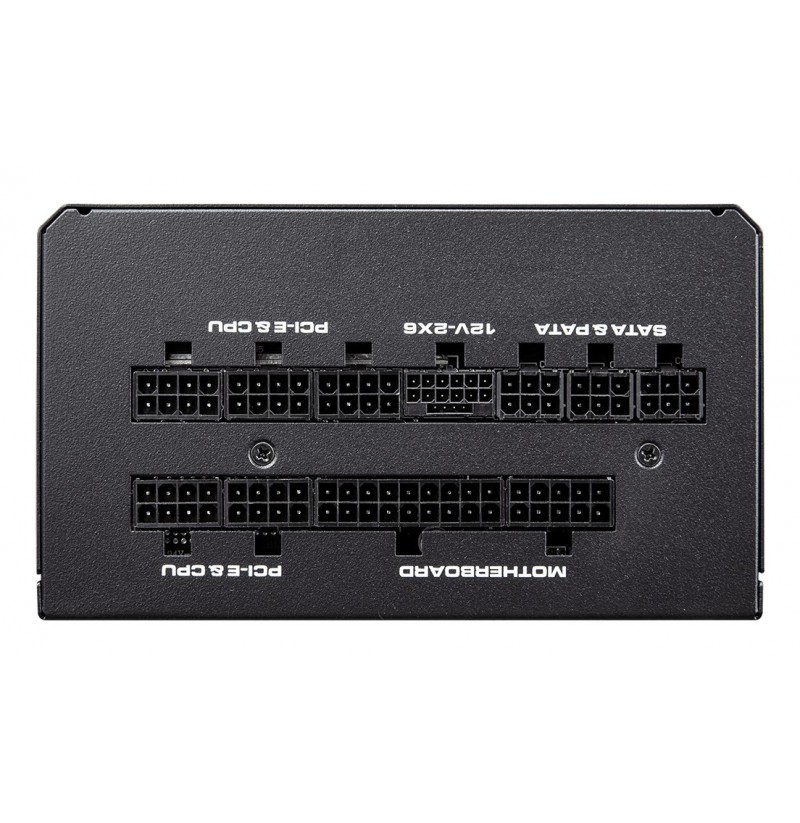

PCI Express connector: Yes
Number of SATA power connectors: 8
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
SATA power cable length: 640, 520, 400 mm, 760 mm
CPU power connector (4+4 pin): Yes
Number of PATA power connectors: 3

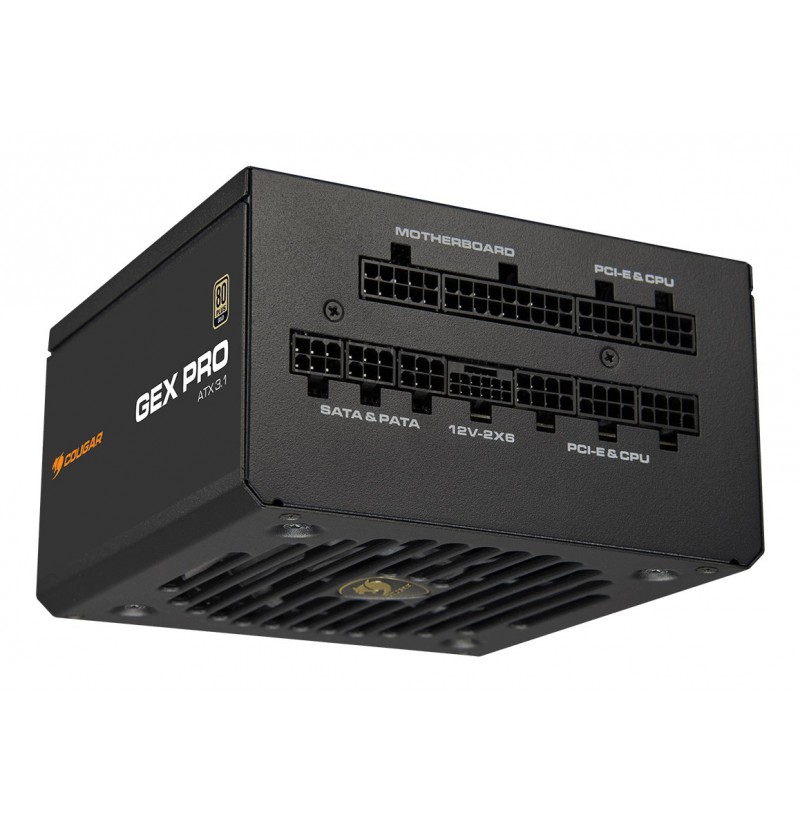

Cabling type: Fully-Modular
CPU power cable length: 70 cm
PCI Express power connectors (12+4 pin) cable length: 650 mm
PCI Express power connectors (12+4 pin): 1
