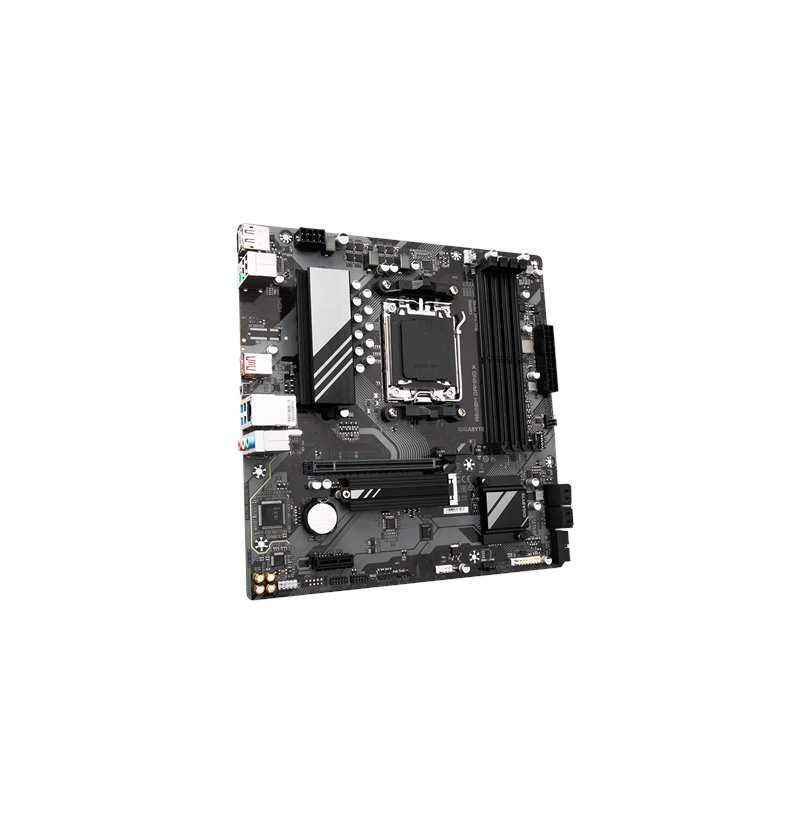

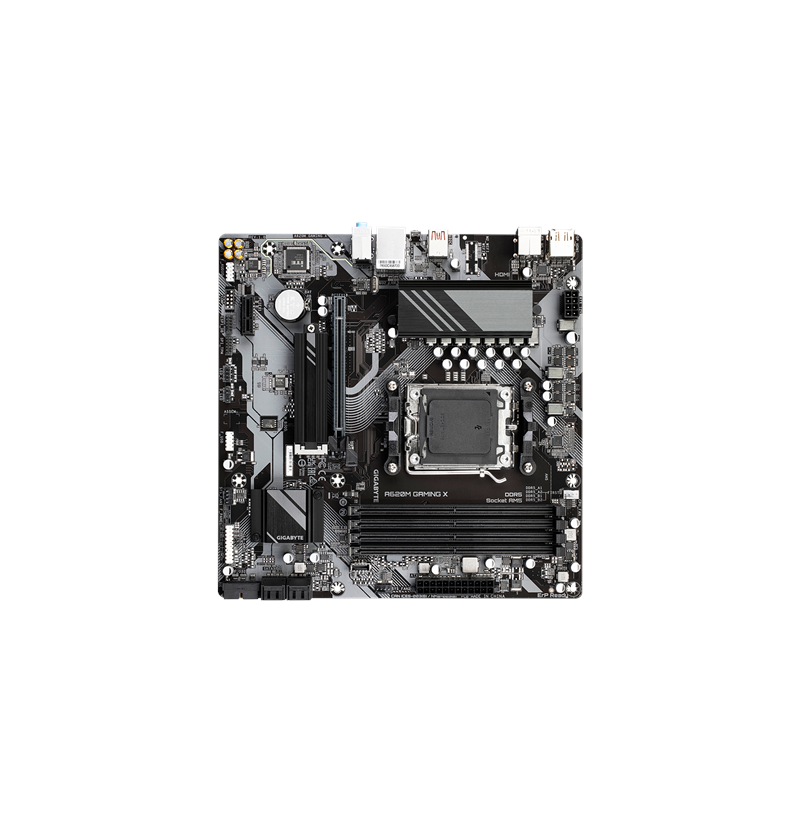

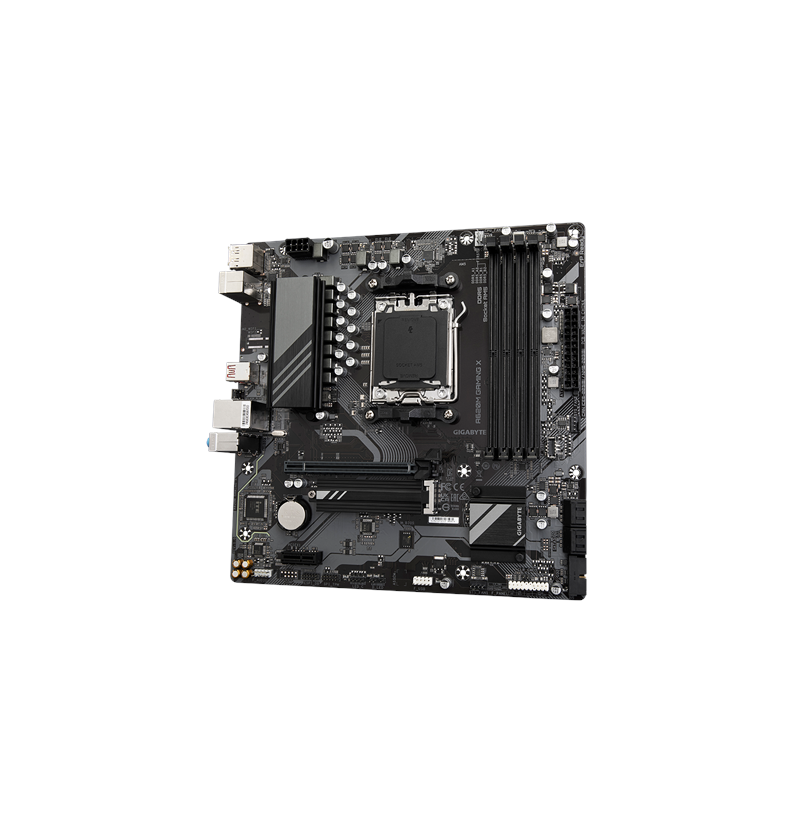

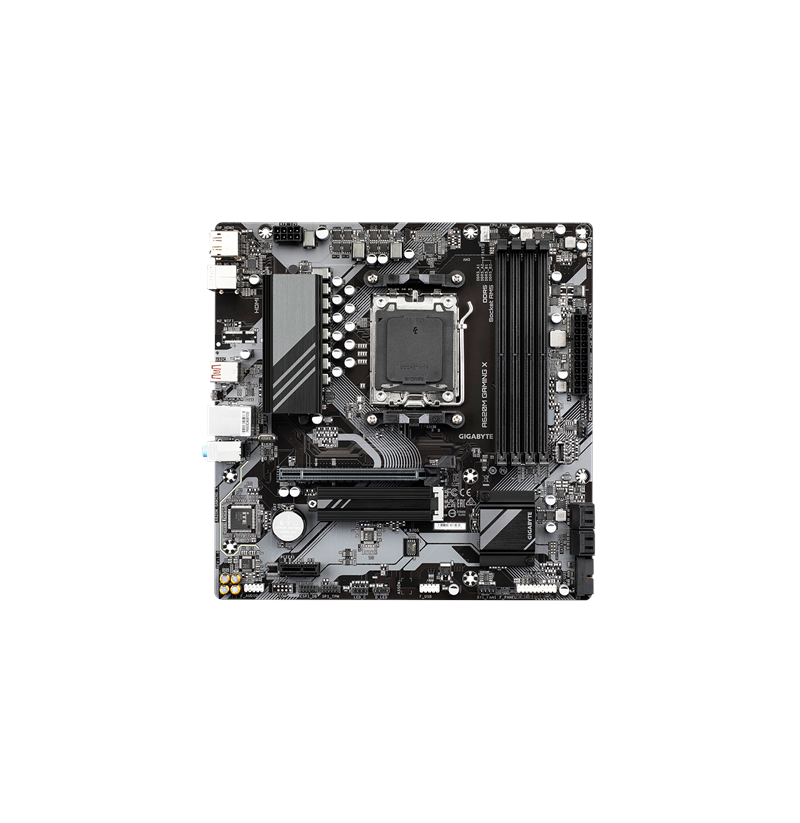

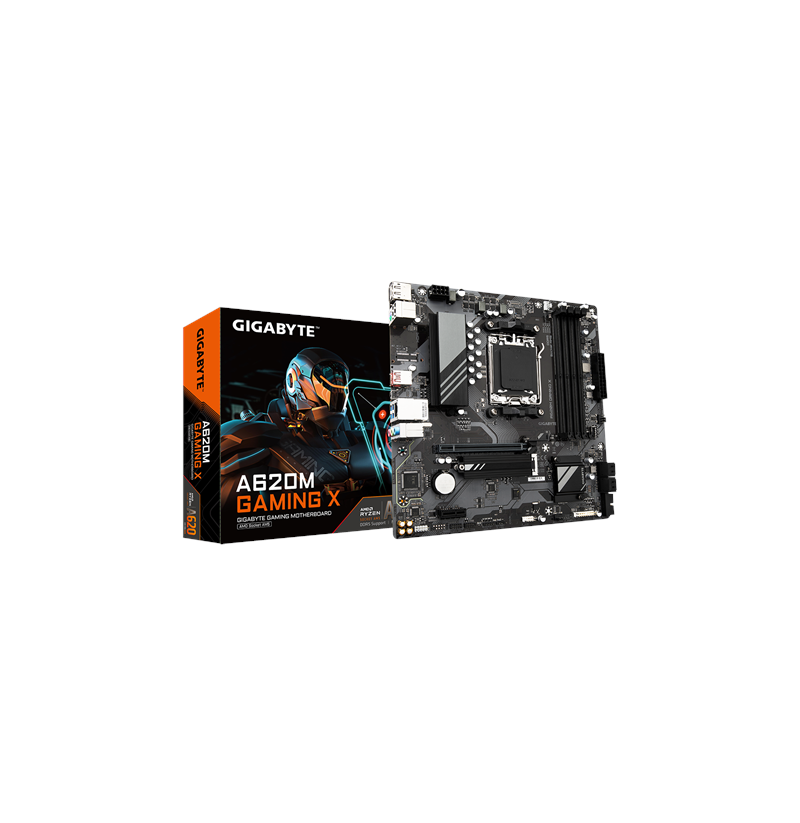

Mainboard Gigabyte A620M GAMING X

Warranty period: 3 year(s)
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 192 GB
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
PC health monitoring: Temperature, Voltage, Fan, Water cooling
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD A620
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Product colour: Bronze
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8000 MHz
Supported memory module capacities: 48GB, 32GB, 16GB, 1GB, 8GB, 2GB, 4GB, 12GB
Supported memory clock speeds: 8000 MHz, 4400, 5200, 6800, 6200, 6000, 6400, 7600 MHz, 7800, 7000 MHz, 4800, 5600, 7200 MHz
Maximum internal memory: 192 GB
Width: 244 mm
Height: 35 mm
Depth: 244 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Front panel connector: Yes
CPU fan connector: Yes
USB 2.0 connectors: 1
TPM connector: Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Total number of SATA connectors: 4
12V power connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Package depth: 268 mm
Package height: 68 mm
Package weight: 892 g
Package width: 270 mm
Bundled software: Norton Internet Security
Batteries included: Yes
Cables included: SATA
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
RAID levels: 10, 0, 1
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
RAID support: Yes
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
DisplayPorts quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 3
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 1
Number of M.2 (M) slots: 1
PCI Express x1 slots: 1
PCI Express x16 slots: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
