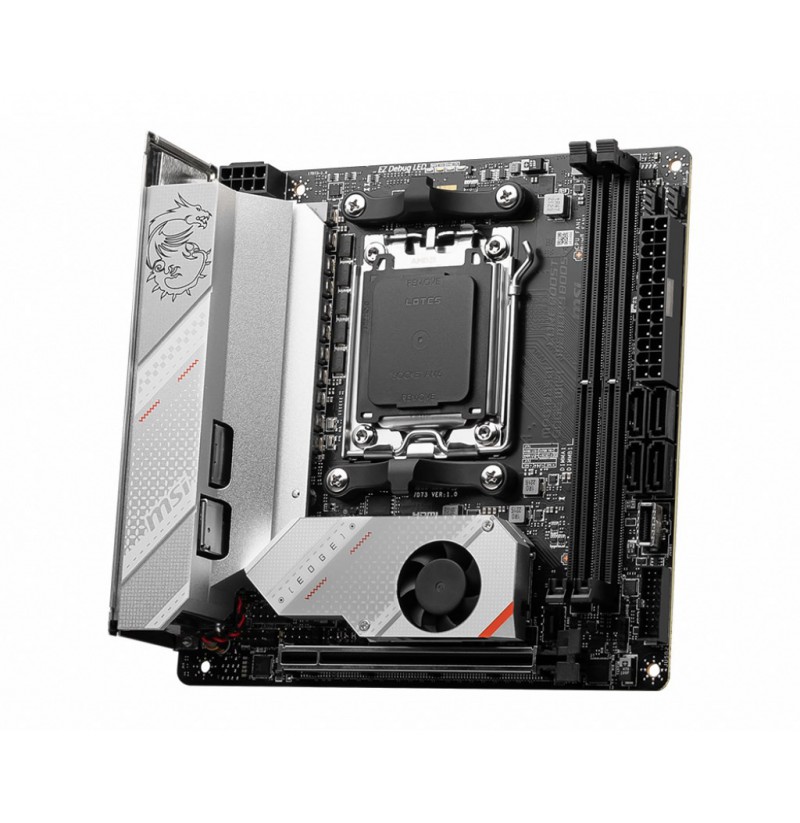

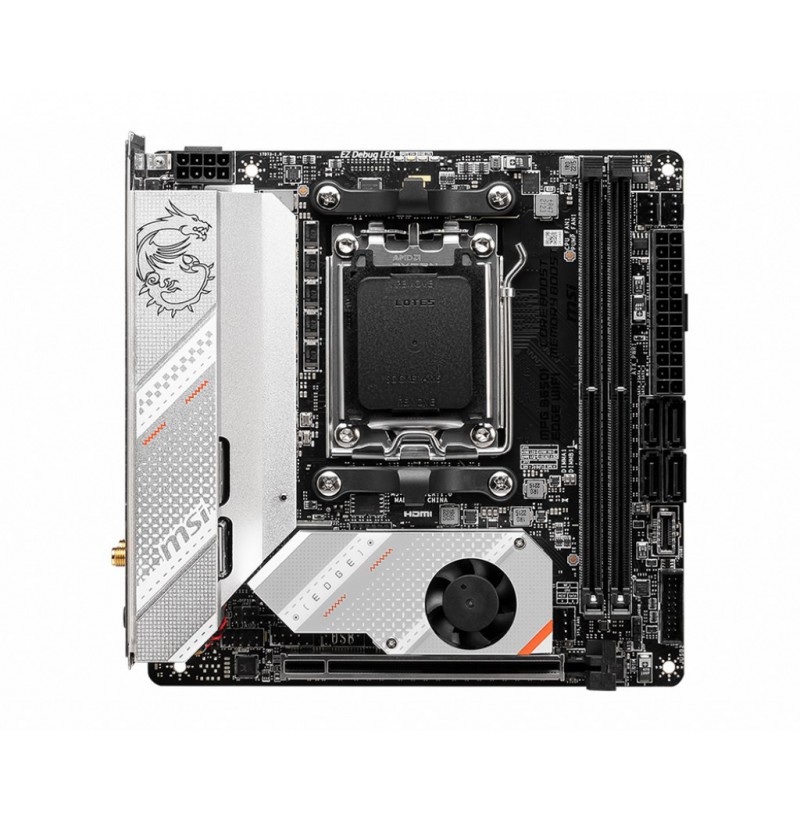

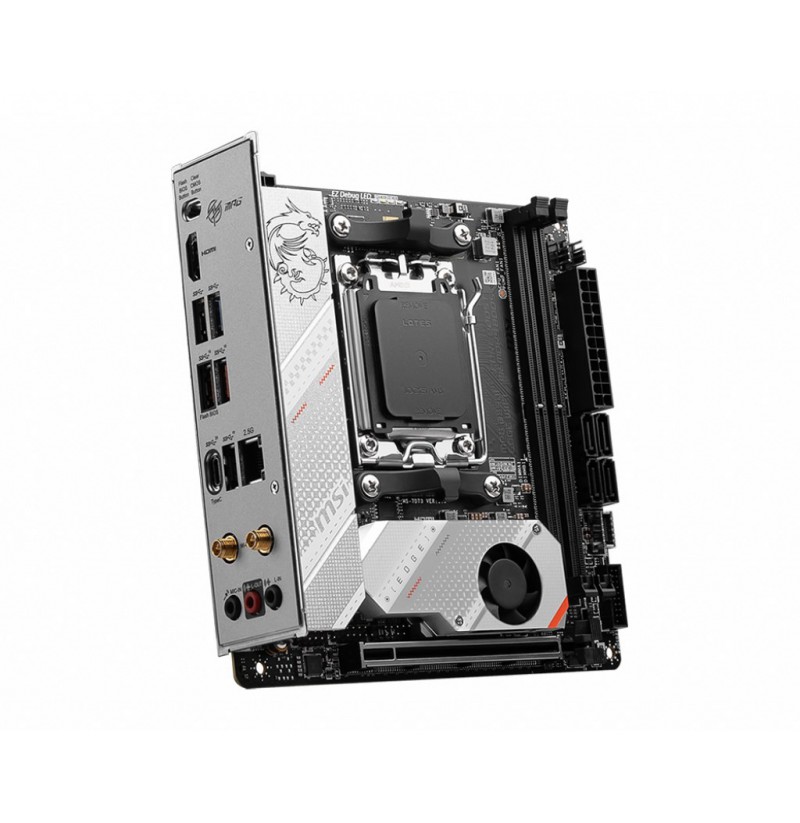

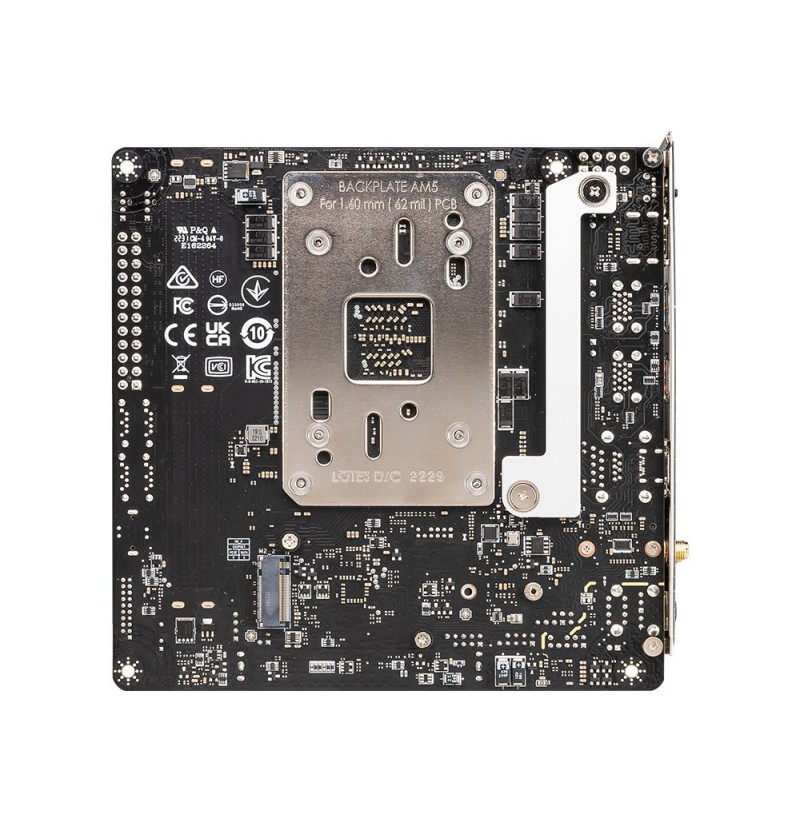

MSI | MPG B650I EDGE WIFI | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive

Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series
Processor socket: Socket AM5
On-board graphics card: No
Motherboard form factor: mini ATX
Product colour: Aluminium, Black
Motherboard chipset family: AMD
Audio chip: Realtek ALC4080
Windows operating systems supported: Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset: AMD B650
PC health monitoring: Fan
Supported memory clock speeds: 5600, 5800, 5400, 5200, 6000, 6200, 5000, 6400 MHz, 4800 MHz
Maximum internal memory: 64 GB
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Depth: 170 mm
Width: 170 mm
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth: Yes
LAN controller: Realtek RTL8125B
Number of SATA III connectors: 4
Front panel connector: Yes
CPU fan connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
Supported storage drive interfaces: M.2, SATA
RAID levels: 10, 1, 0
RAID support: Yes

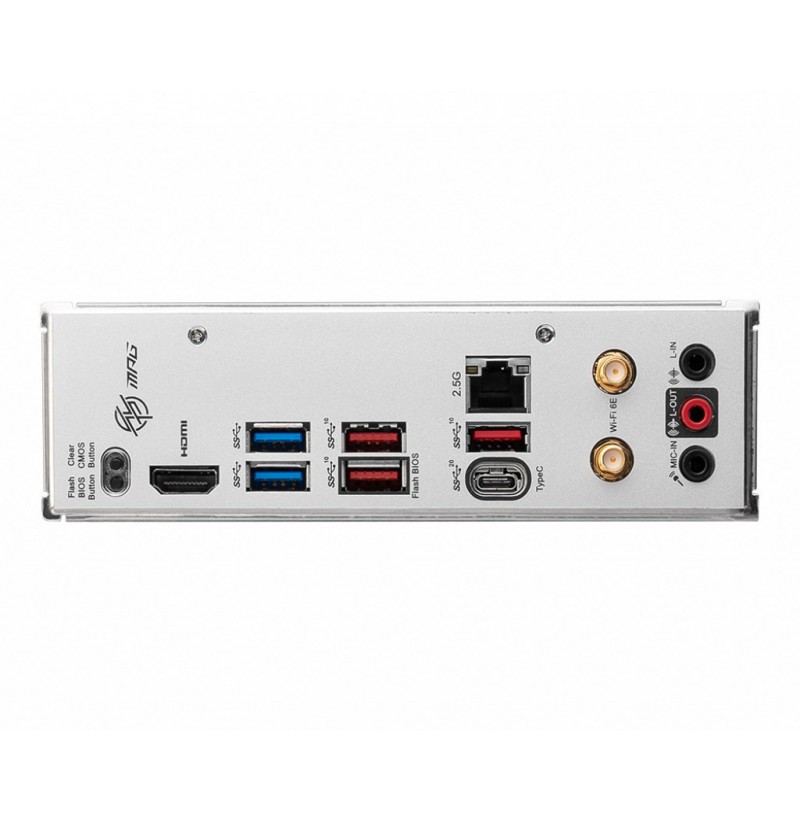

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
HDMI version: 2.1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
