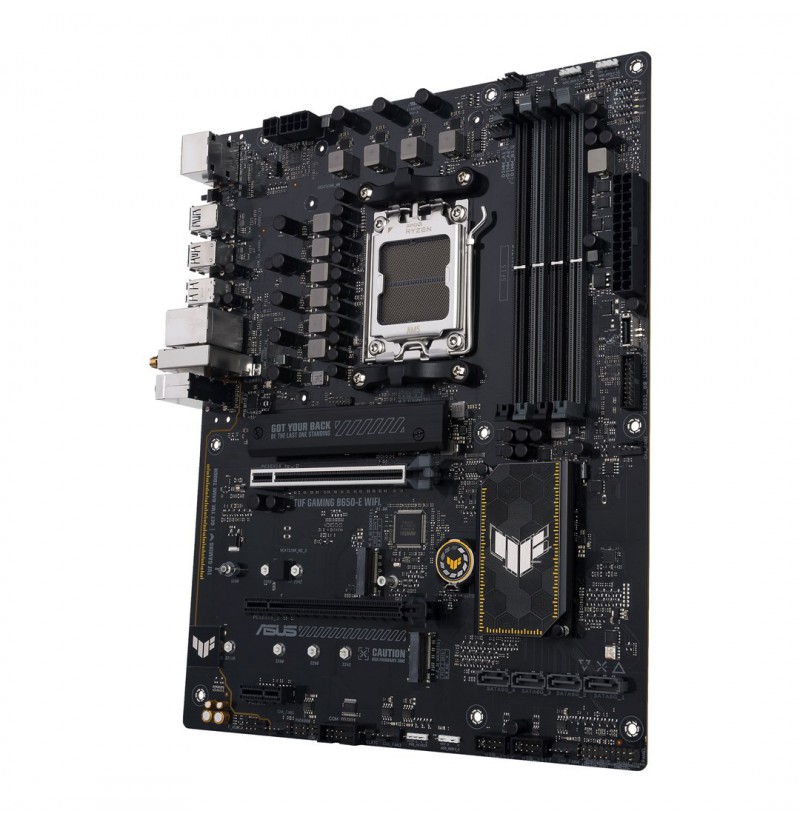

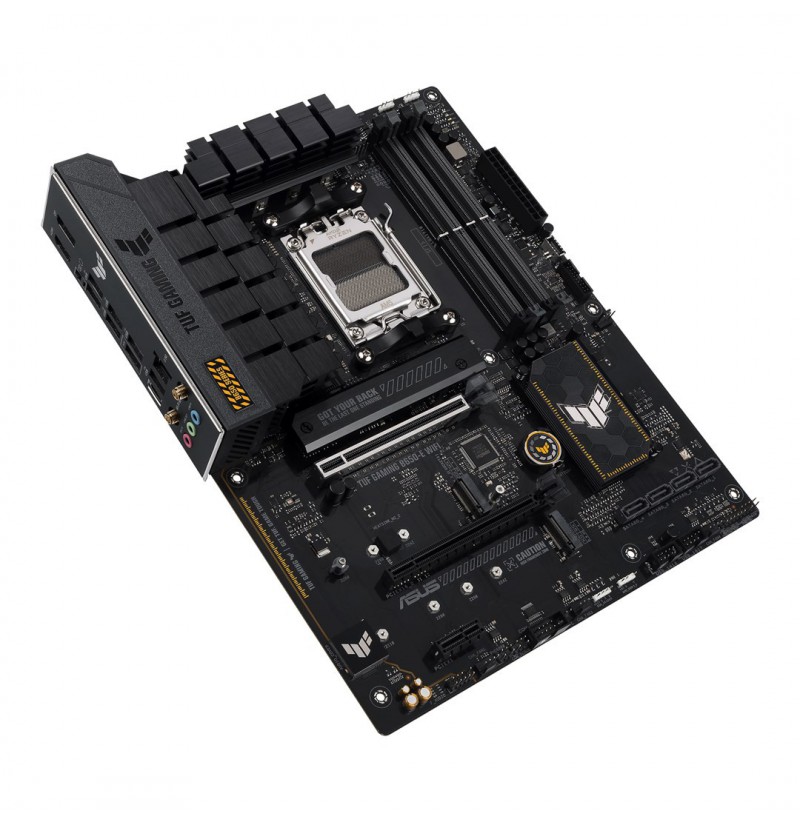

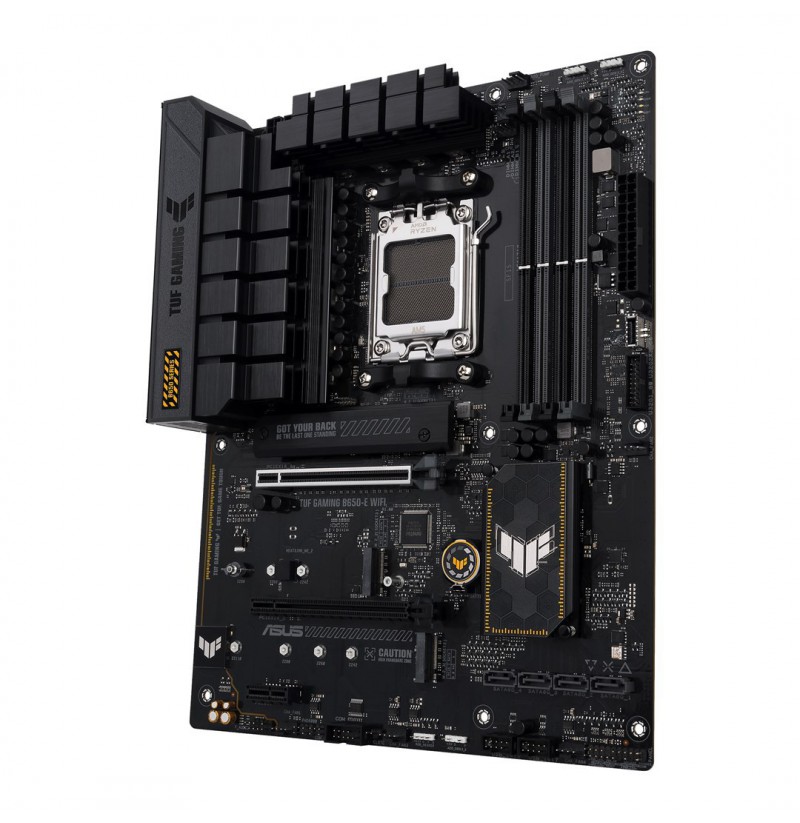

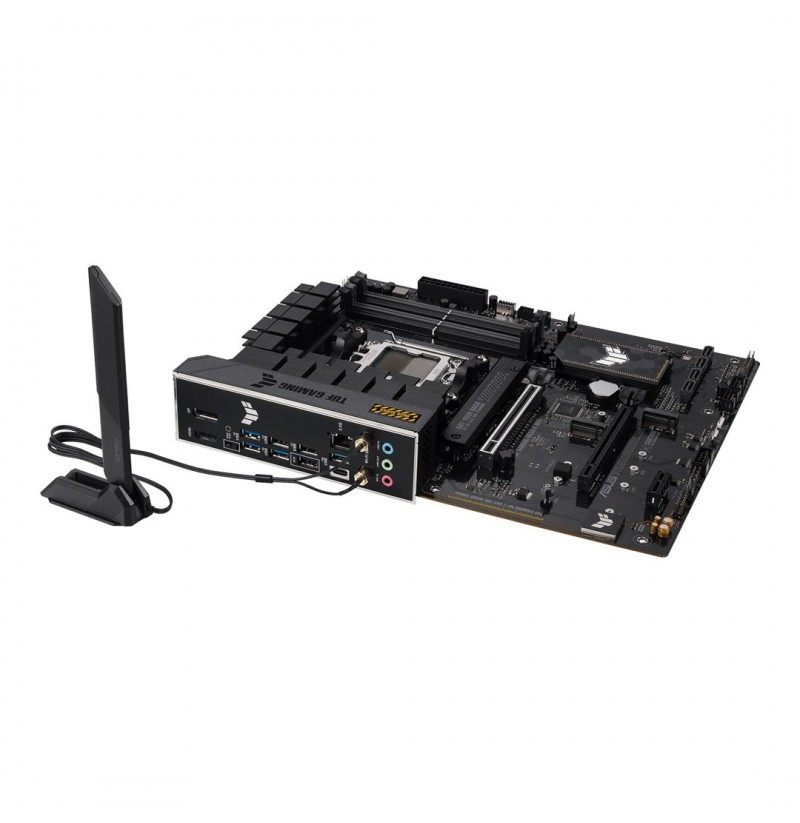

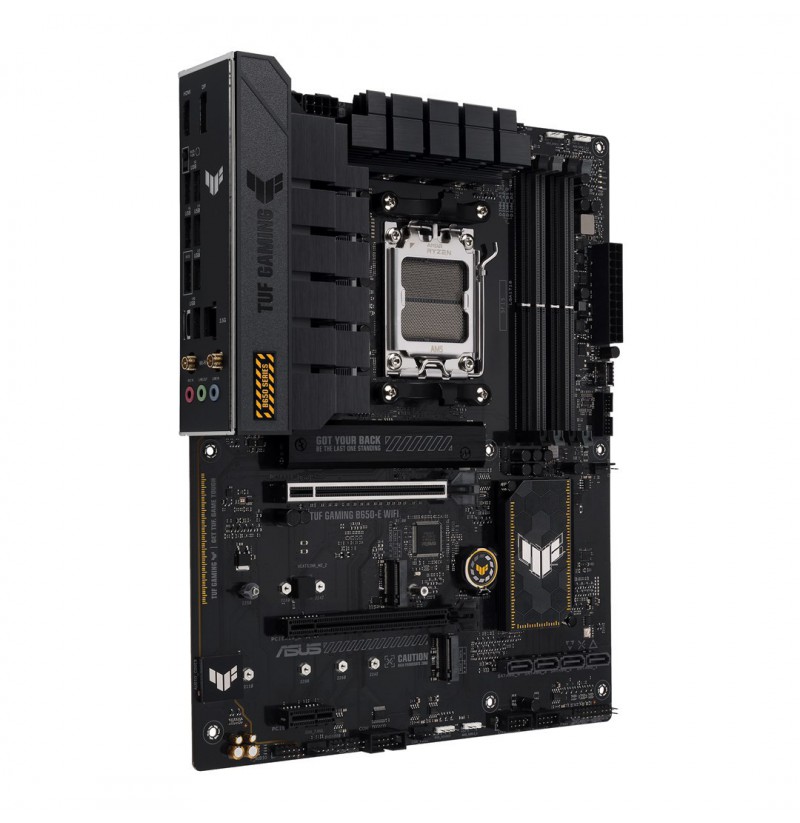

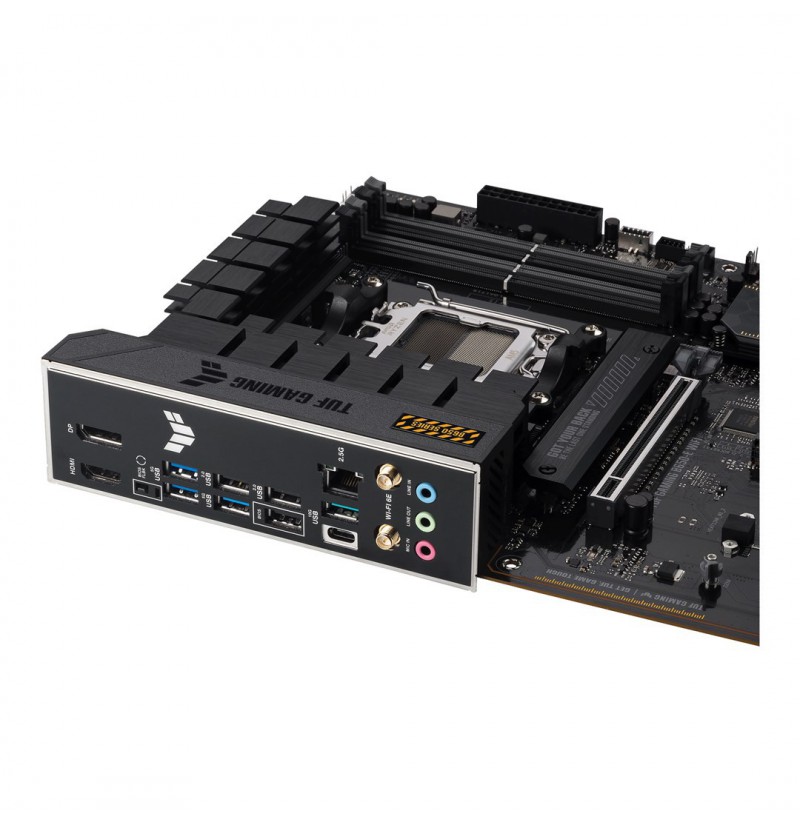

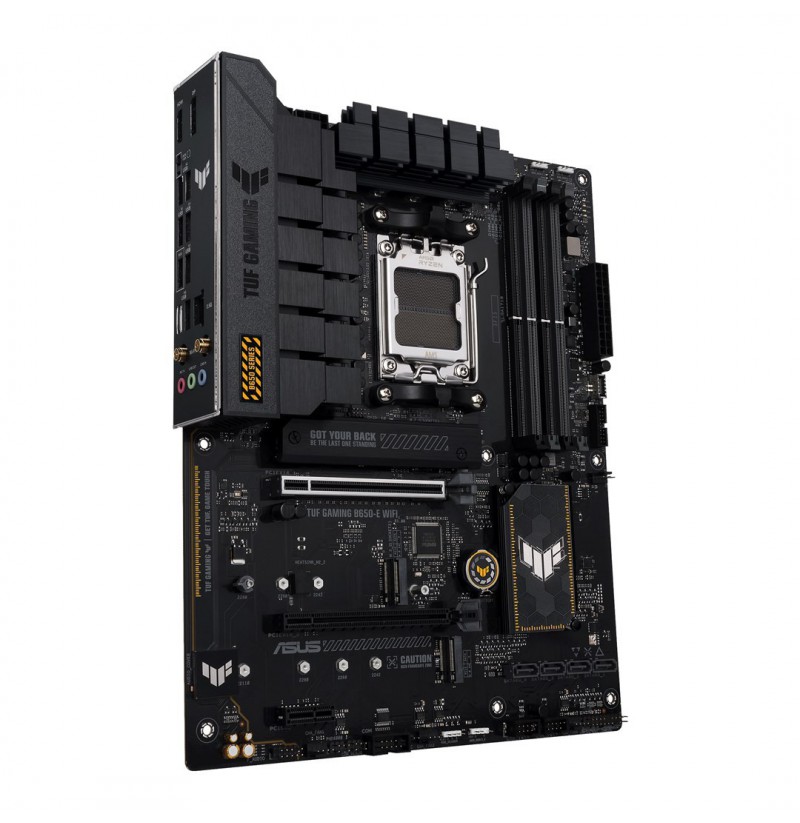

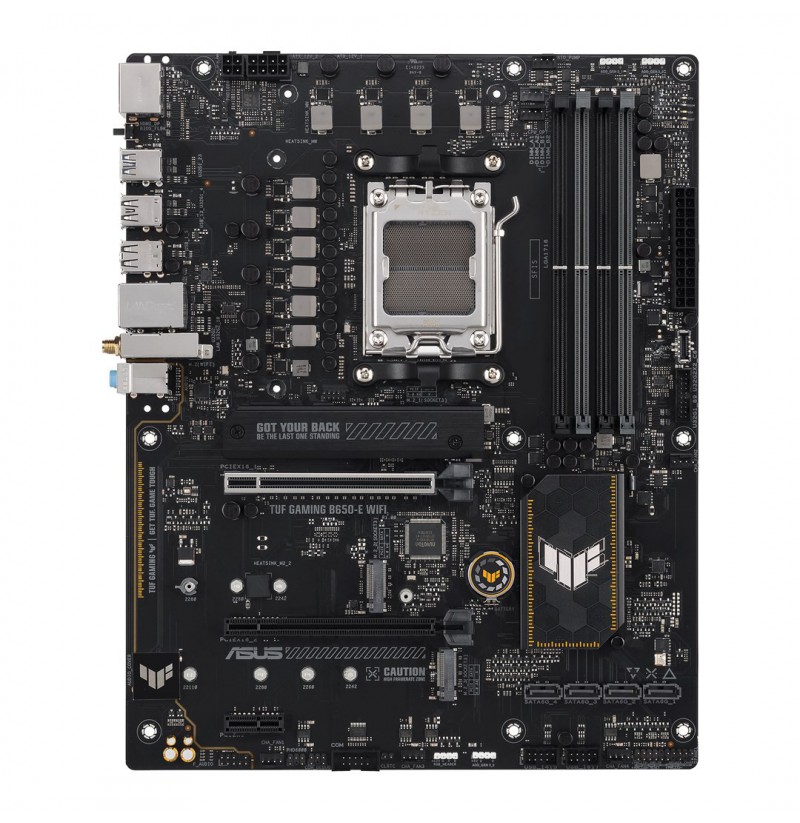

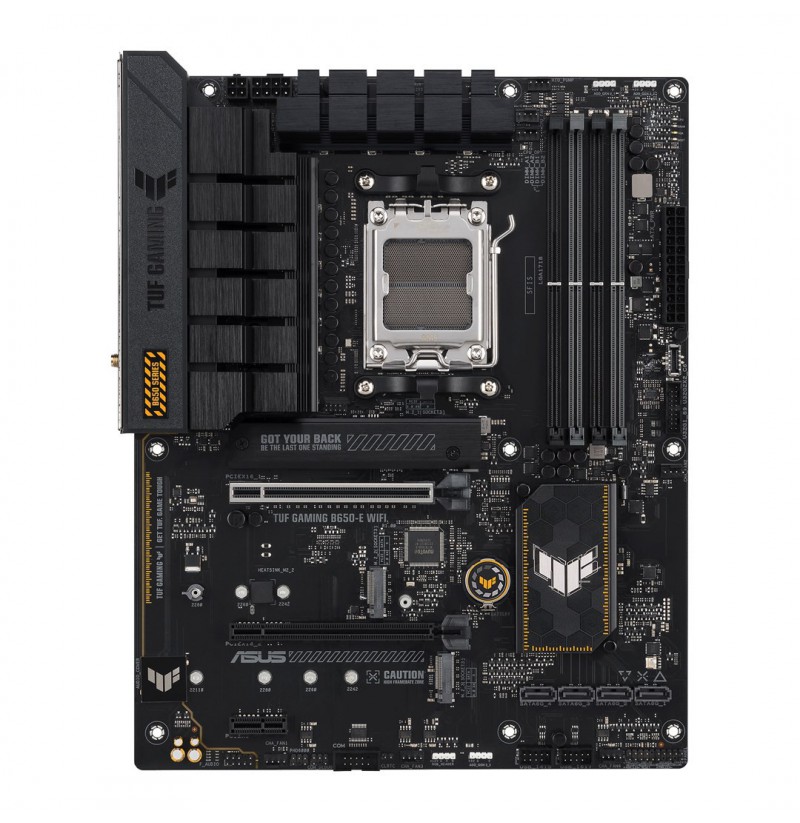

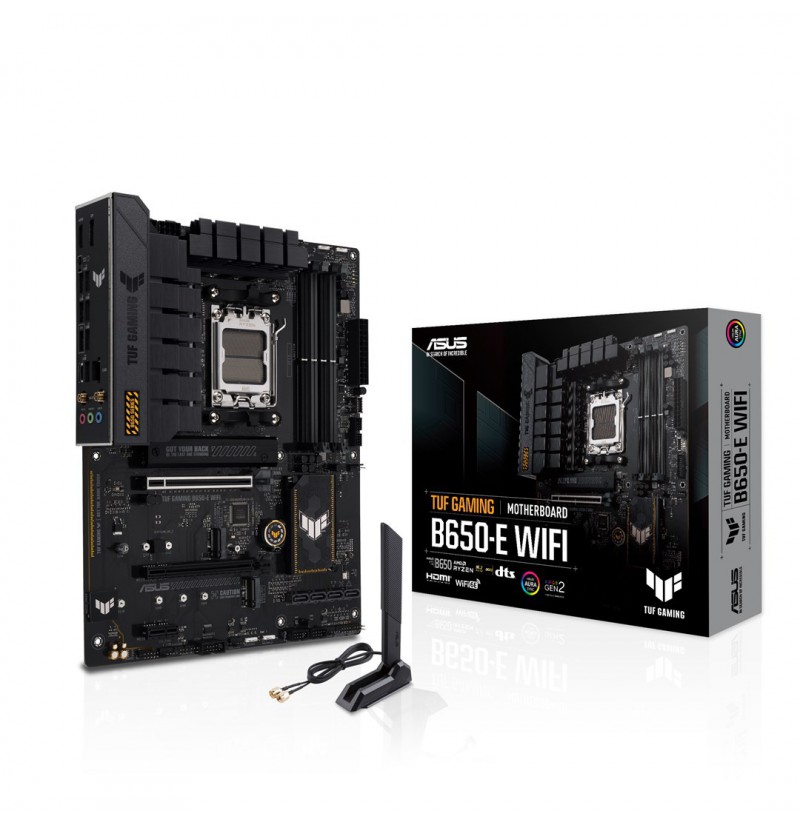

ASUS TUF GAMING B650-E WIFI AMD B650 Socket AM5 ATX

Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5
Parallel processing technology support: Not supported
On-board graphics card: No
Motherboard chipset family: AMD
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Product colour: Black
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard form factor: ATX
Supported memory clock speeds: 6600, 6200, 5000, 7600, 7800, 7000, 4800, 6400, 8000, 5200, 6800, 6000, 5600, 7200, 5800, 5400
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8000 MHz
Width: 305 mm
Depth: 244 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes
Wi-Fi standards: 802.11g, 802.11b, 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
CPU fan connector: Yes
Number of COM connectors: 1
Number of SATA III connectors: 4
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
Peripheral (Molex) power connectors (4-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
RGB LED pin header: Yes
BIOS type: UEFI AMI
Package width: 338 mm
Package weight: 1.36 kg
Package depth: 273 mm
Package height: 68 mm
RAID levels: 0, 10, 1
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 7
Number of HDDs supported: 4

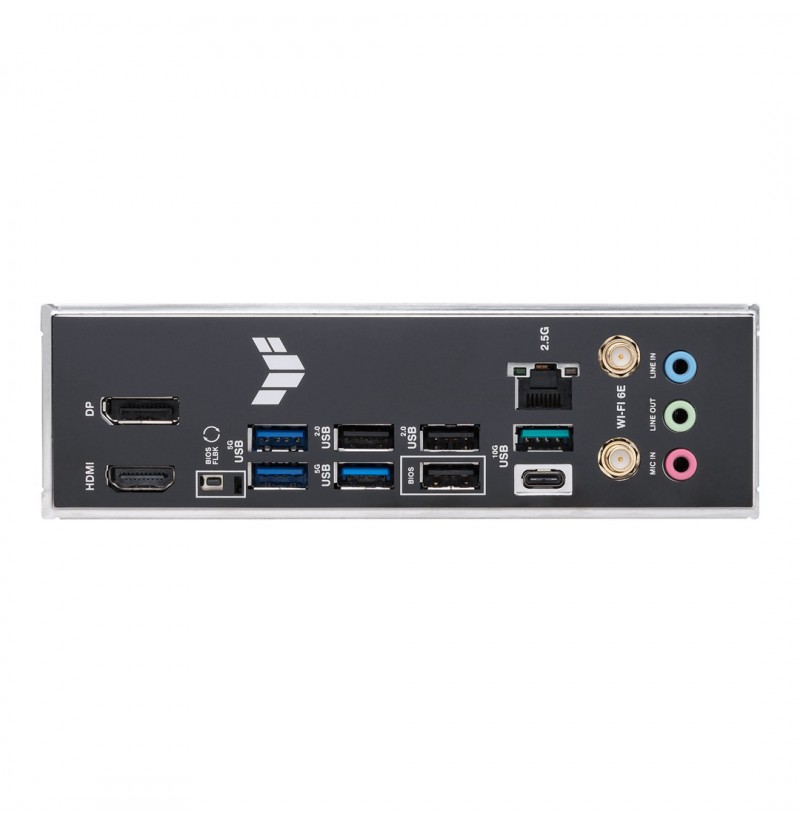

Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 3
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
WiFi-AP antenna jack: 1
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x1 (Gen 4.x) slots: 1
Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.
