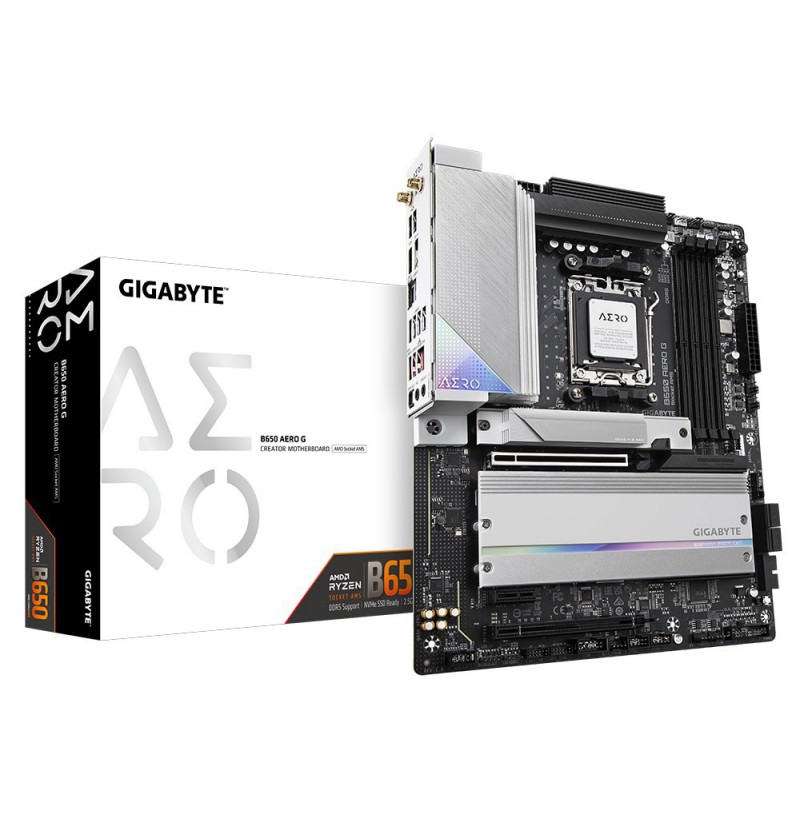

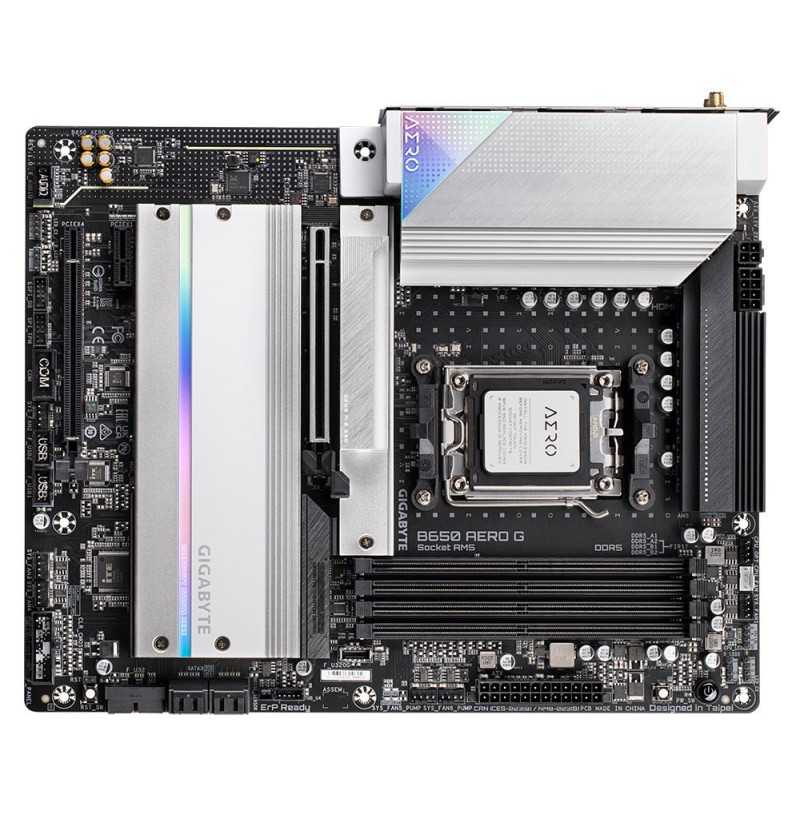

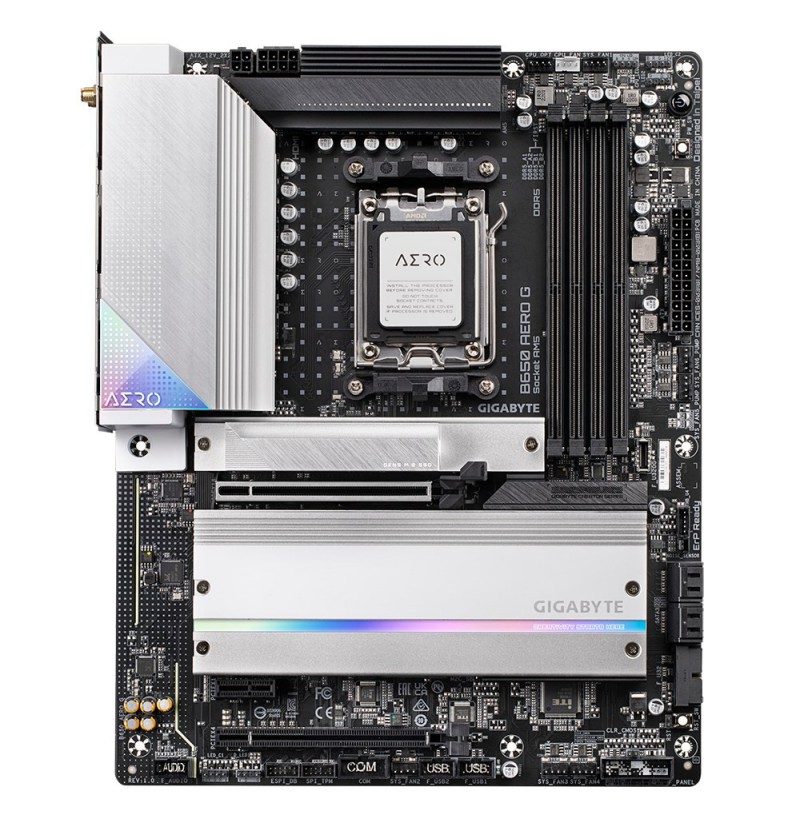

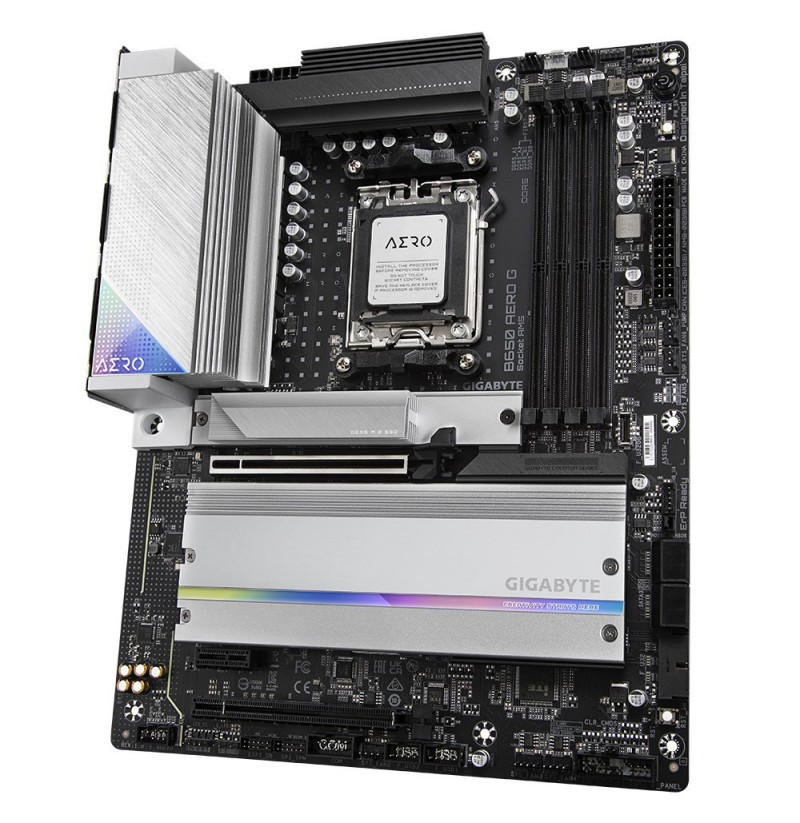

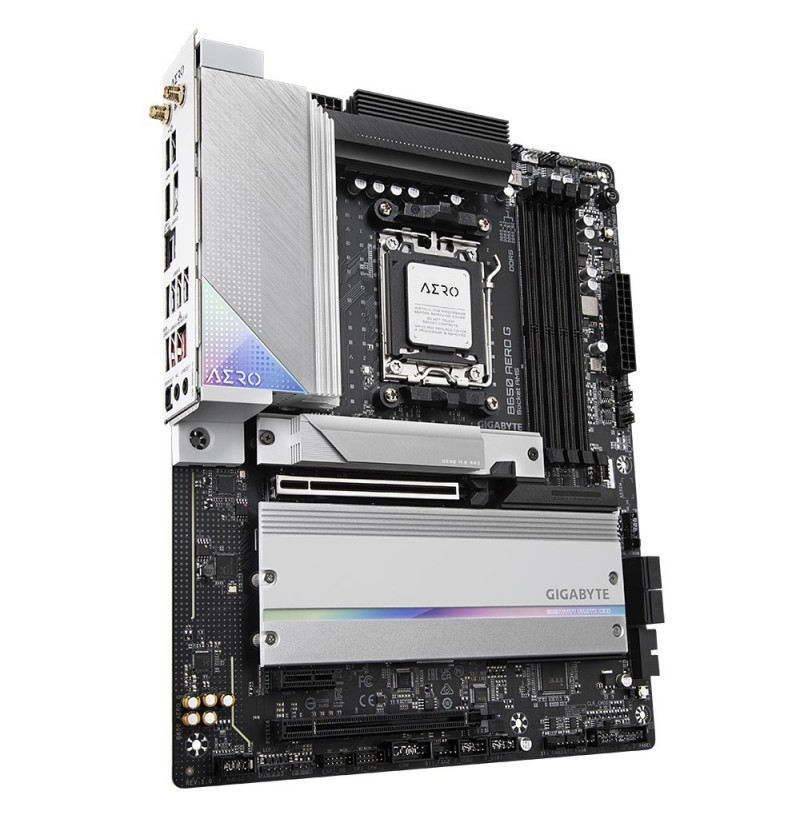

Gigabyte B650 AERO G - 1.0 - motherboa

Warranty period: 3 year(s)
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
DirectX version: 12.0
Discrete graphics support: Yes
Motherboard chipset: AMD B650
PC health monitoring: Voltage, Water cooling, Fan, Temperature, Noise
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
Motherboard chipset family: AMD
Power source type: ATX
Product colour: Black
Component for: PC
Supported memory clock speeds: 8000 MHz, 5200, 6600 MHz, 6000, 6800, 7000, 6400, 4400, 6200, 6666, 7600, 7800, 5600, 7200, 4800
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
Maximum internal memory per slot: 64 GB
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Maximum internal memory: 256 GB
Supported memory clock speed (max): 8000 MHz
Depth: 244 mm
Height: 35 mm
Width: 305 mm
Bluetooth version: 5.2
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 5 (802.11ac)
WLAN controller model: RZ616
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes
Bluetooth: Yes
Number of chassis fan connectors: 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
Serial port headers: 1
Number of SATA III connectors: 4
Number of RGB LED pin headers: 5
USB 2.0 connectors: 2
Front panel audio connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Number of water pump connectors: 3
12V power connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 2x2 connectors: 1
Number of temperature sensor headers: 2
BIOS type: UEFI AMI
ACPI version: 5.0
Clear CMOS jumper: Yes
BIOS memory size: 256 Mbit
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
Package height: 80 mm
Package weight: 2.49 kg
Package depth: 270 mm
Package width: 335 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes
Batteries included: Yes
Antenna included: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 10, 1
Number of HDDs supported: 4
RAID support: Yes
Number of storage drives supported: 7

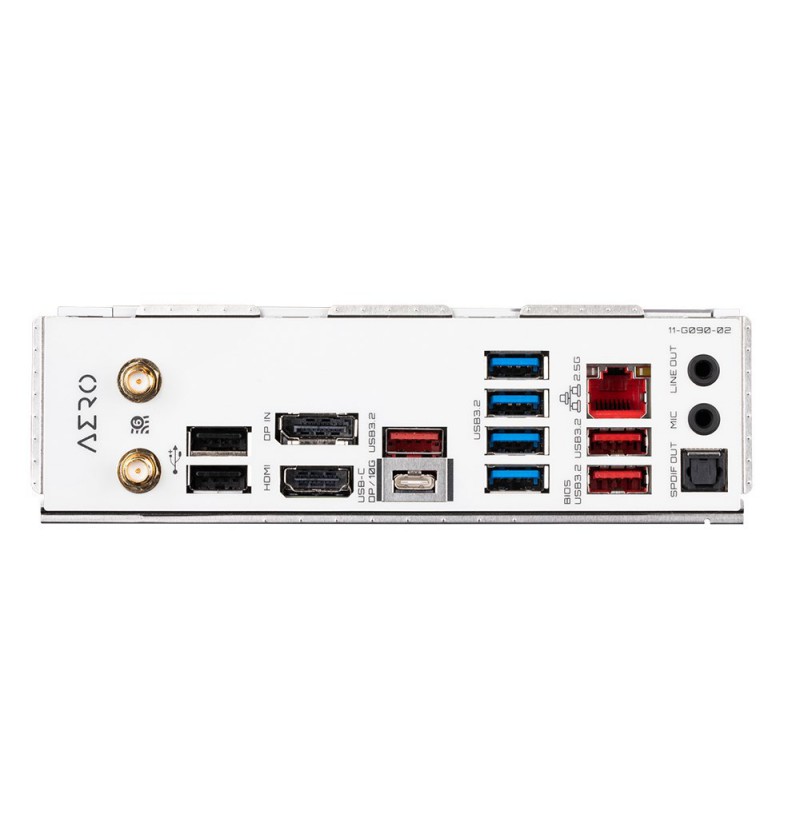

HDMI ports quantity: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
Line-in: Yes
DisplayPort version: 1.4
HDMI version: 2.1
WiFi-AP antenna jack: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Microphone in: Yes
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
2nd M.2 largest key size: 25110
1st M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 25110
Battery type: CR2032
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
