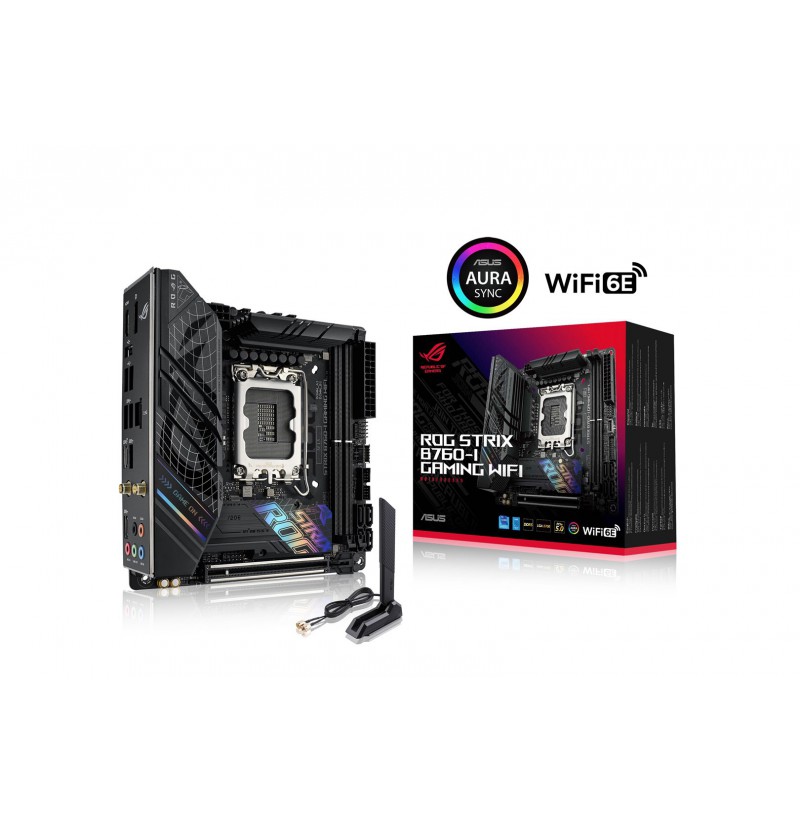

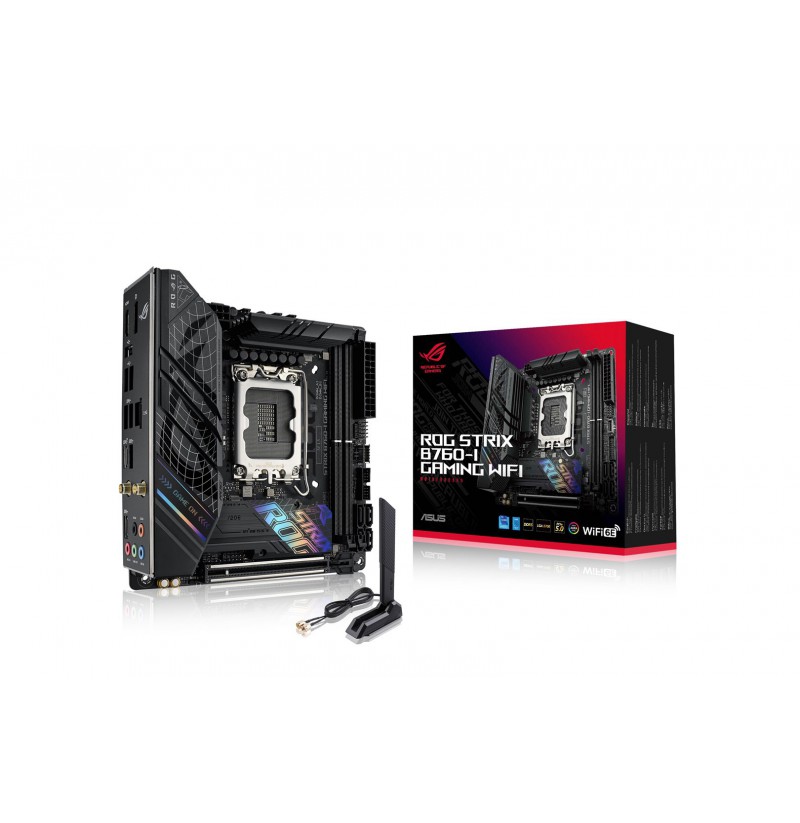

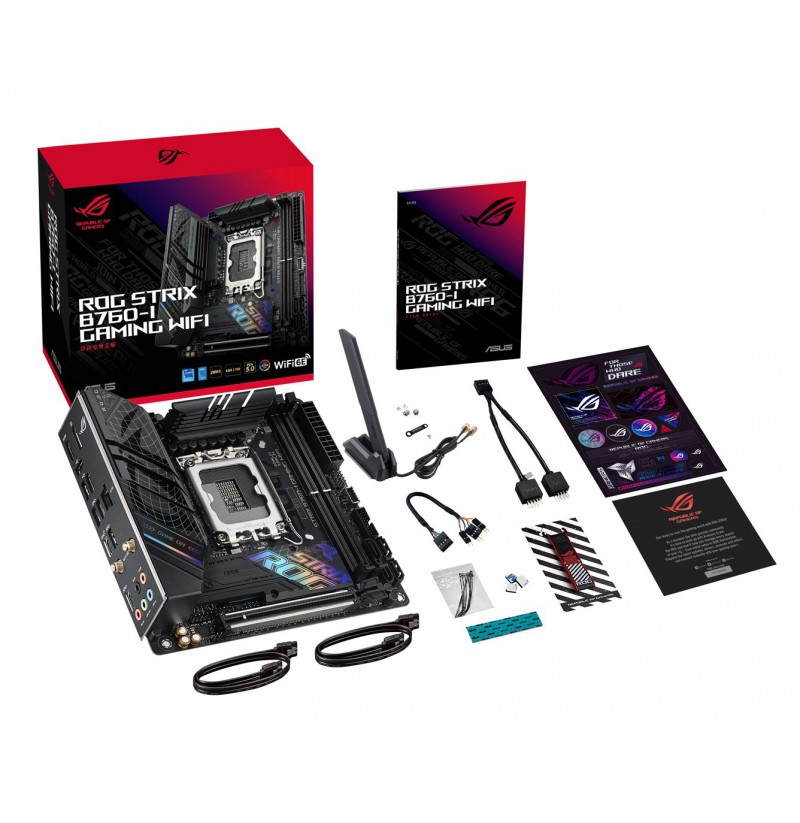

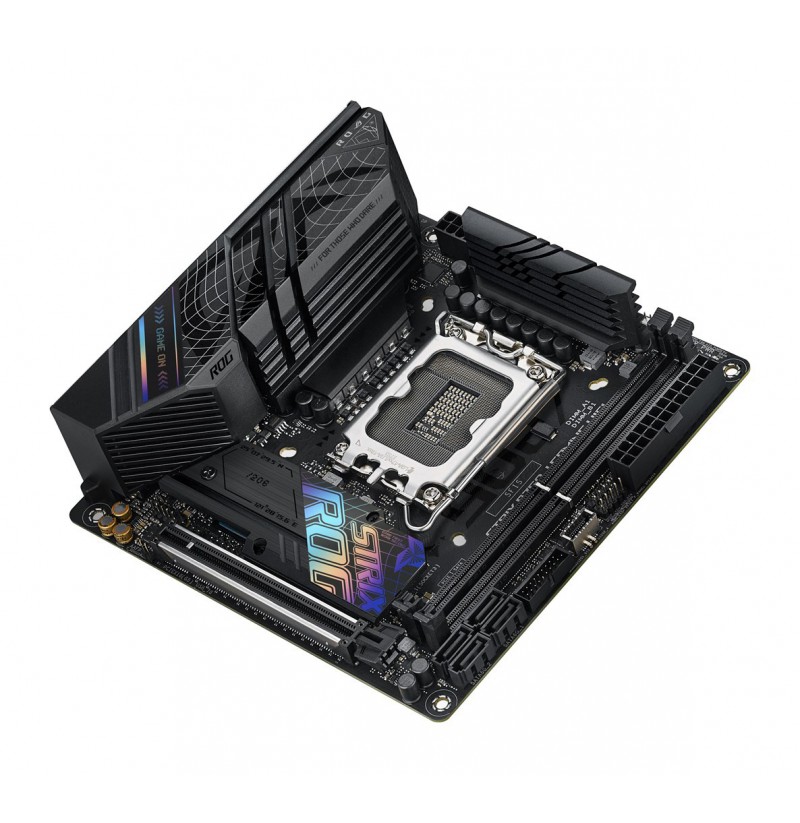

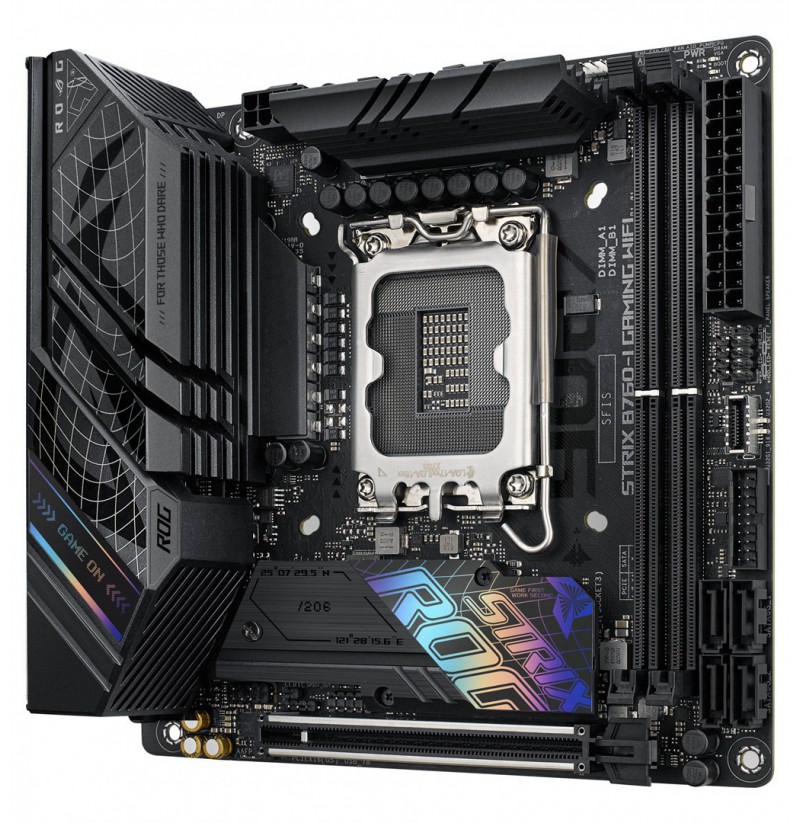

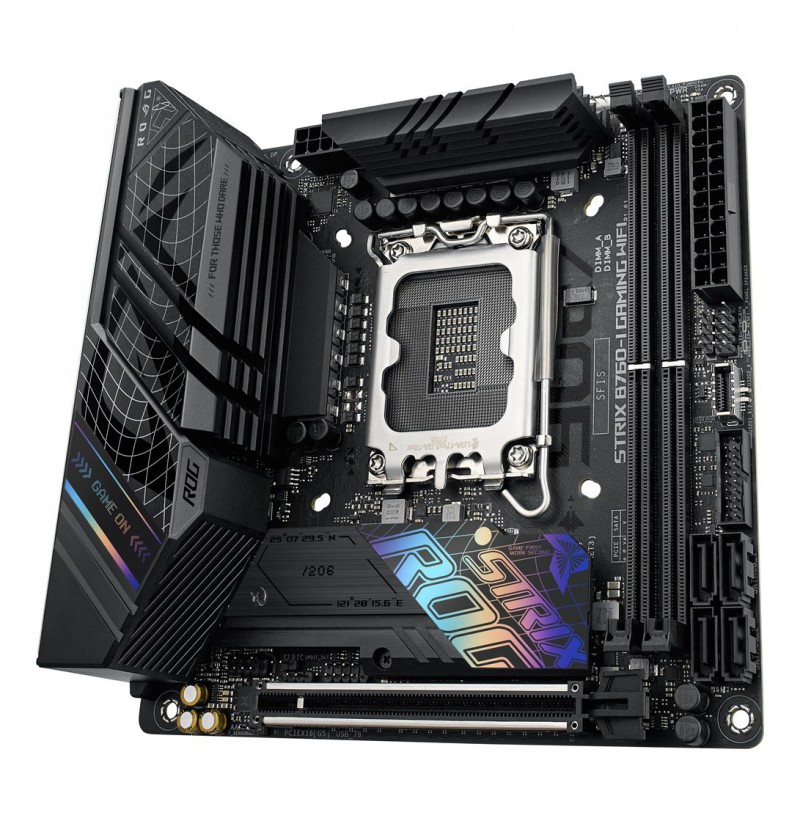

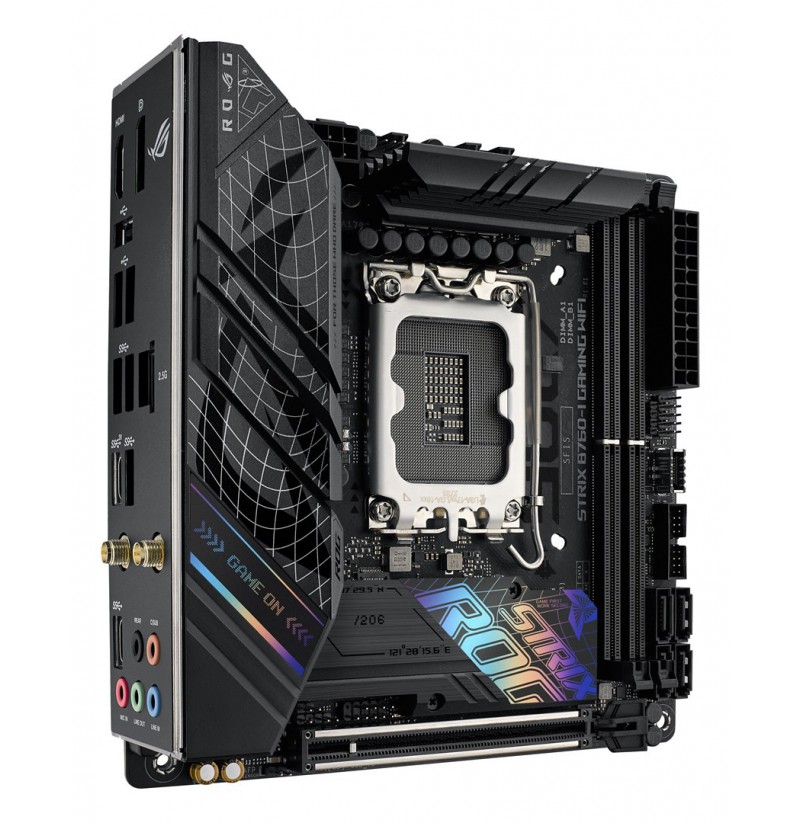

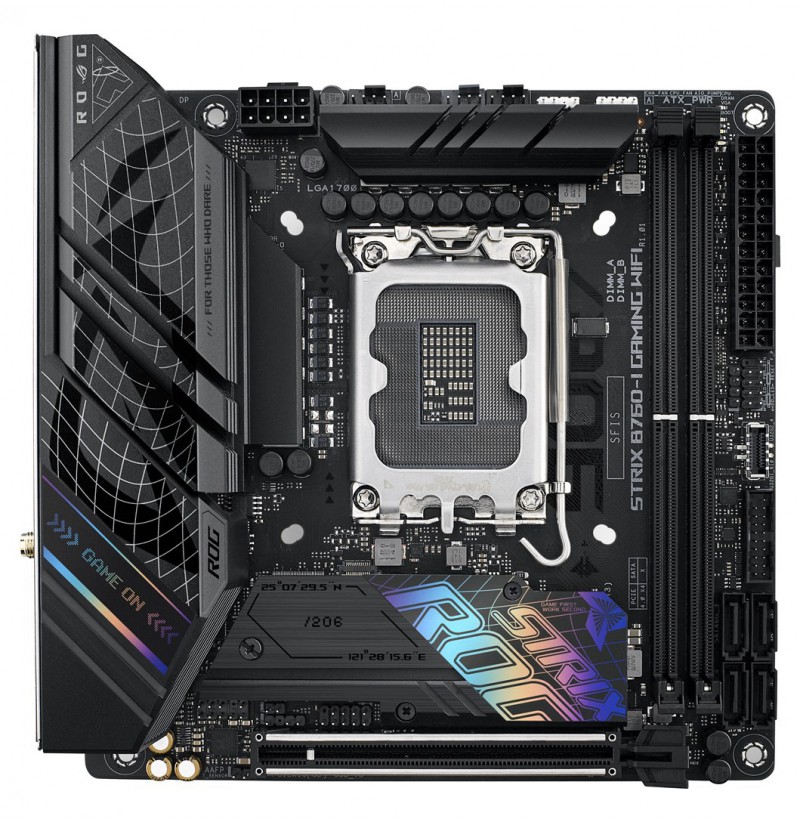

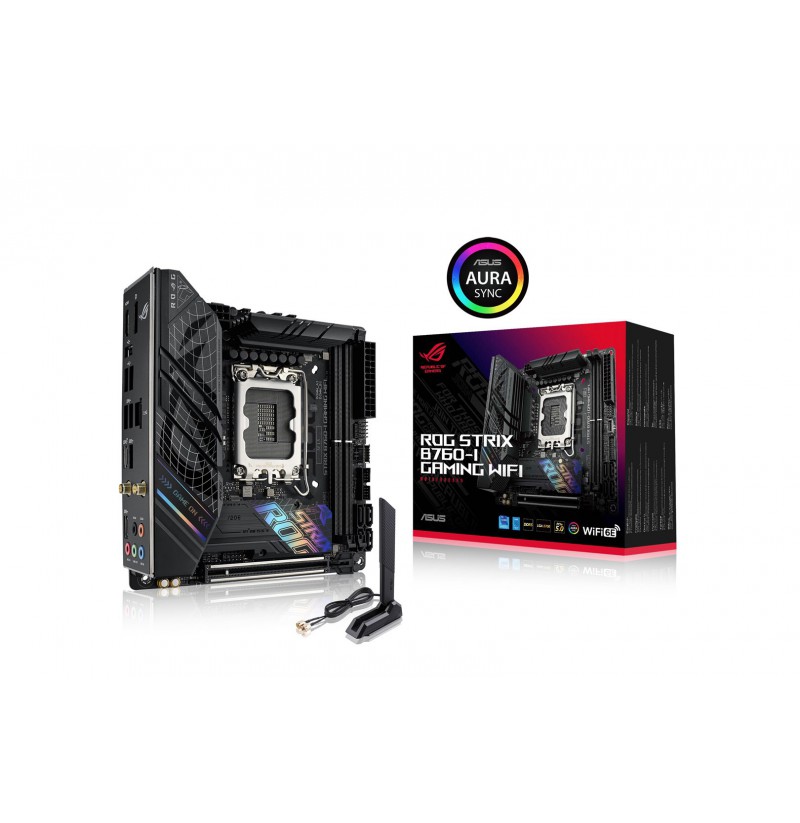

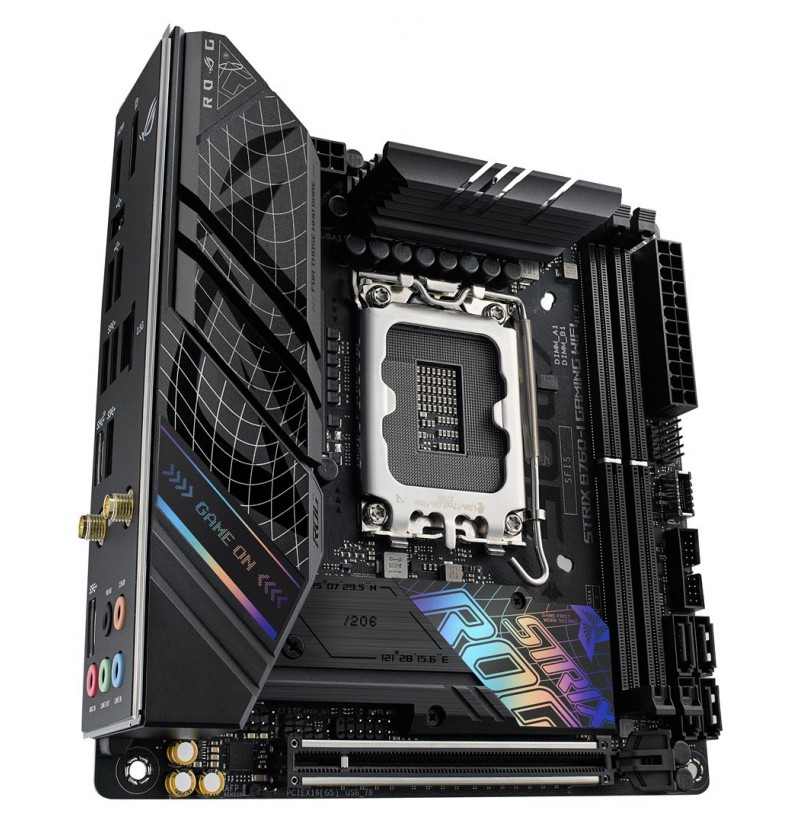

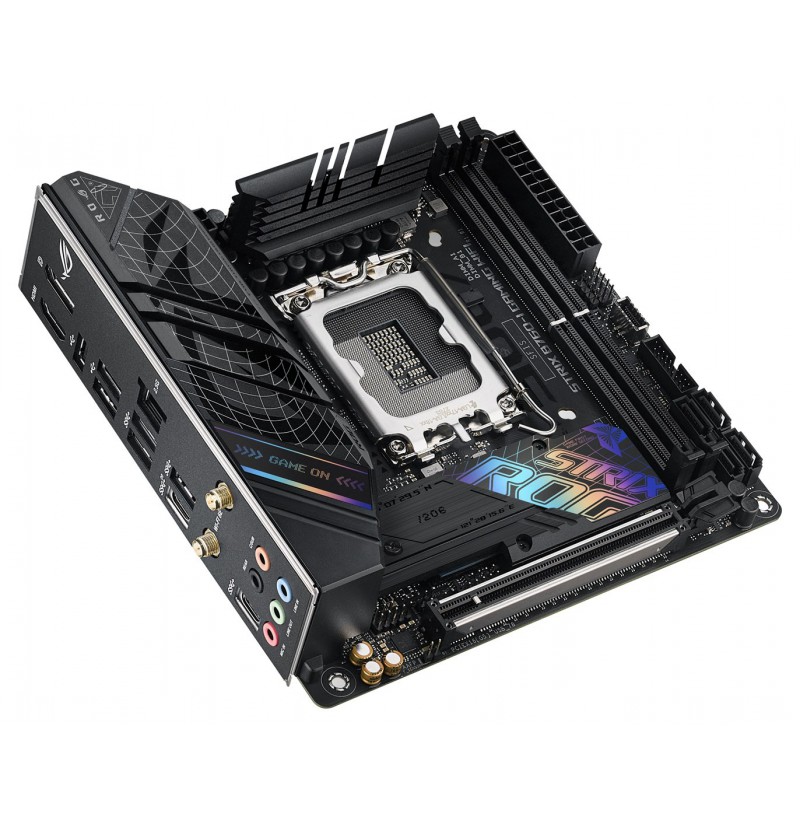

Mainboard ASUS ROG STRIX B760-I GAMING WIFI Padidinti

Mainboard ASUS ROG STRIX B760-I GAMING WIFI

207,41 €

4711081997658

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Motherboard chipset: Intel B760
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio chip: SupremeFX S1220A
Motherboard chipset family: Intel
Motherboard form factor: mini ITX
Audio output channels: 7.1 channels
Supported memory clock speeds: 6600, 6200, 5000, 5200 MHz, 6000, 5600, 7200, 7600, 5800, 5400, 6400, 6800, 4800, 7000
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 7600 MHz
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Depth: 170 mm
Height: 50 mm
Width: 170 mm
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Wi-Fi standards: 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)
Ethernet LAN: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 1
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
12V power connector: Yes
BIOS type: UEFI AMI
Package width: 226 mm
Package weight: 1.28 kg
Package depth: 94 mm
Package height: 185 mm
User guide: Yes
Cables included: SATA
RAID levels: 0, 1, 10, 5
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4

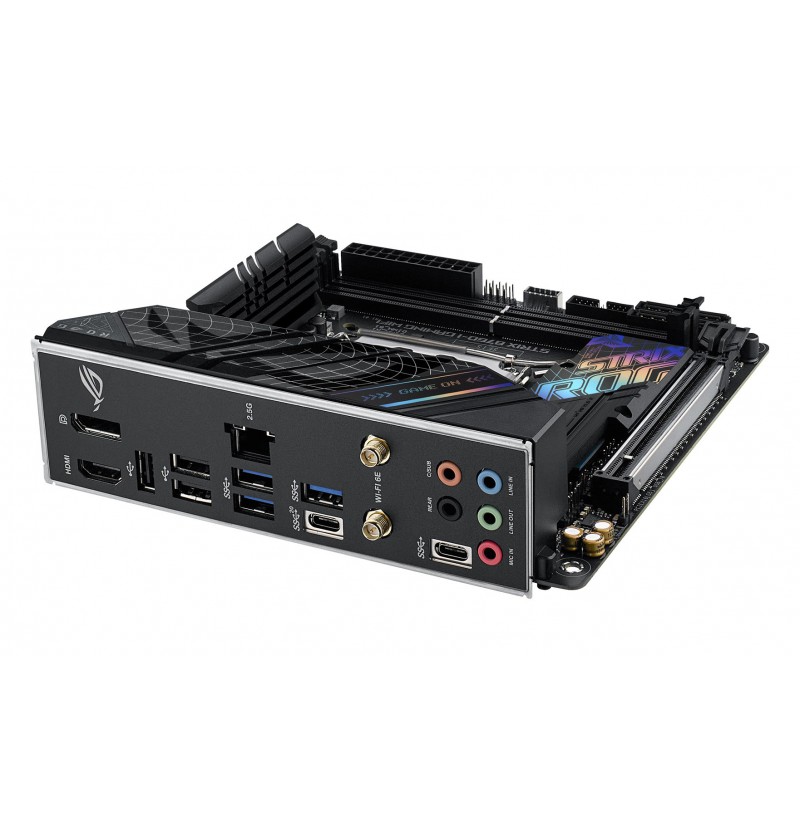

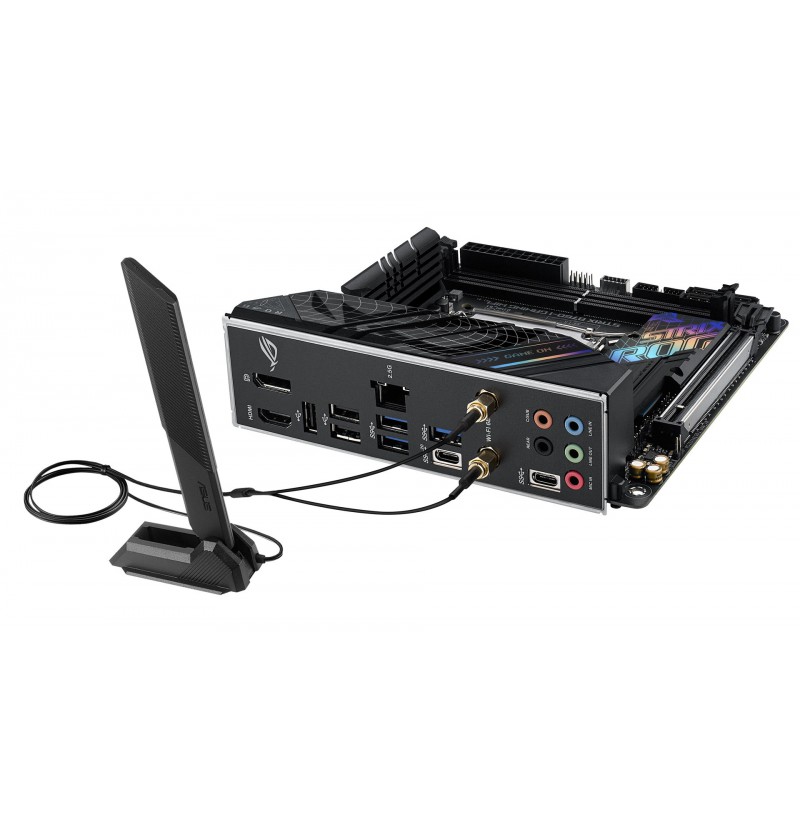

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 3
Headphone outputs: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Line-in: Yes
Microphone in: Yes
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Weight: 644 g
