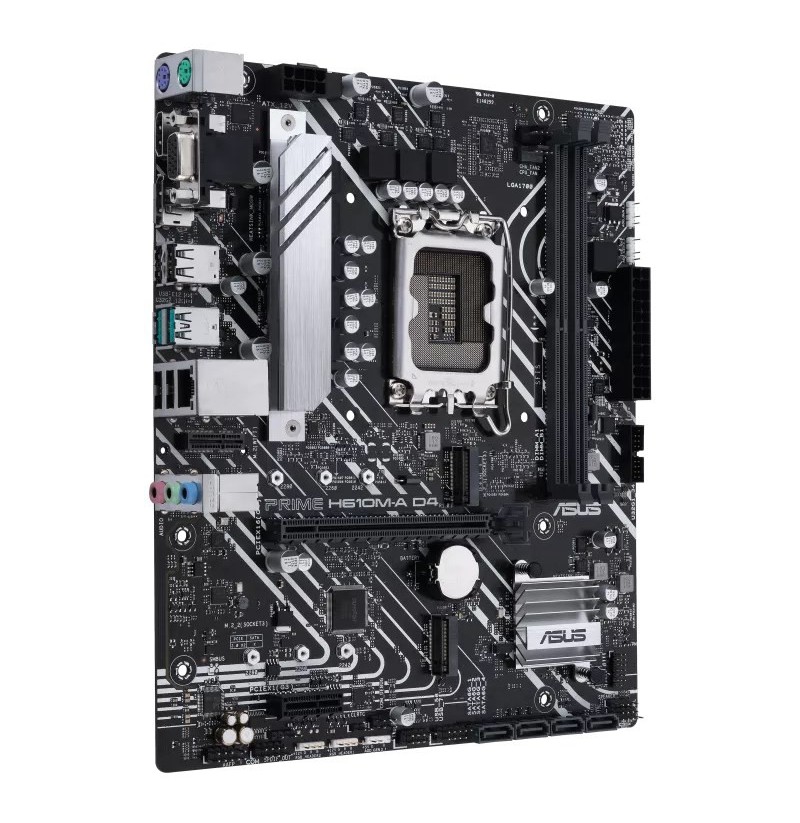

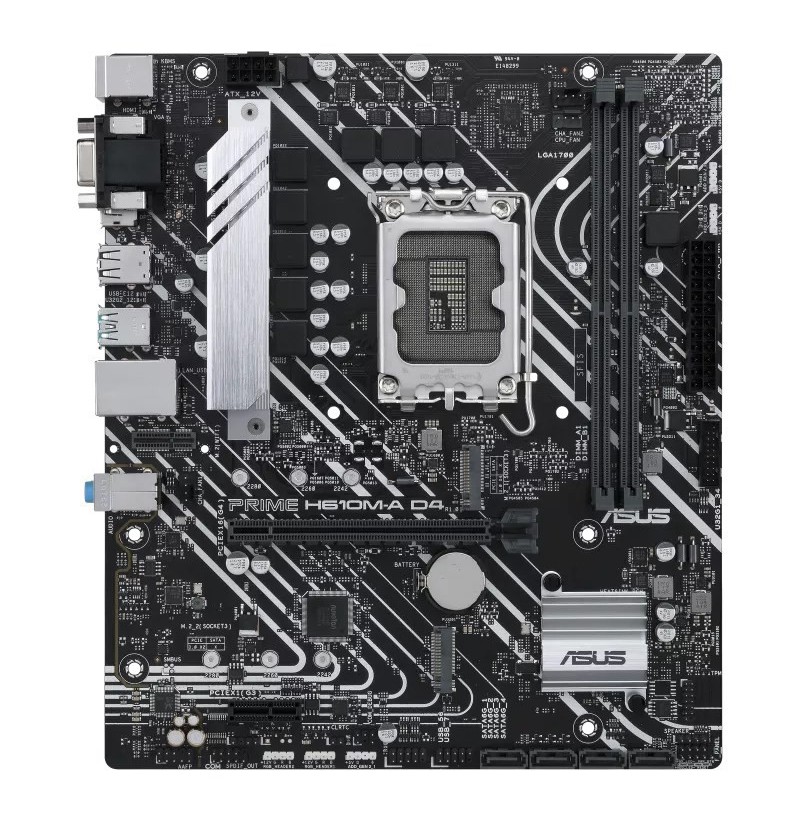

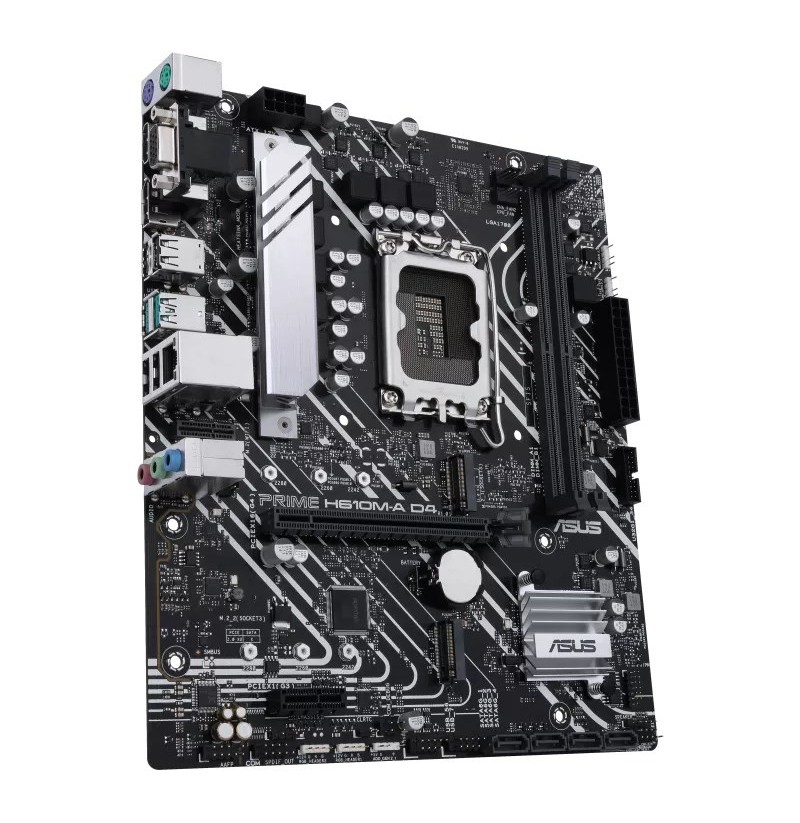

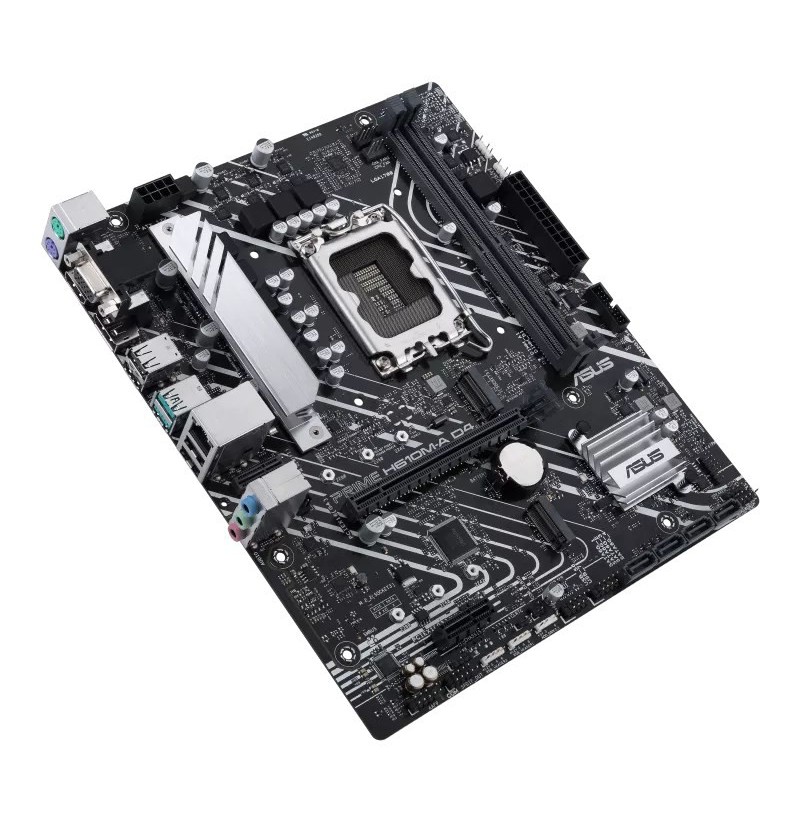

ASUS PRIME H610M-A D4-CSM Intel H610 LGA 1700 micro ATX

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Processor manufacturer: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset: Intel H610
Motherboard chipset family: Intel
Supported memory clock speeds: 2933, 2400, 2800, 3200, 2666, 3000, 2133 MHz
Memory slots type: DIMM
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM, LPDDR3-SDRAM
Maximum internal memory: 64 GB
Number of memory slots: 2
ECC сompatibility: Non-ECC
Depth: 211 mm
Width: 244 mm
Height: 221 mm
Wake-on-LAN ready: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Not available
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
USB 2.0 connectors: 1
TPM connector: Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Number of COM connectors: 1
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
12V power connector: Yes
Number of chassis fan connectors: 2
RGB LED pin header: Yes
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6

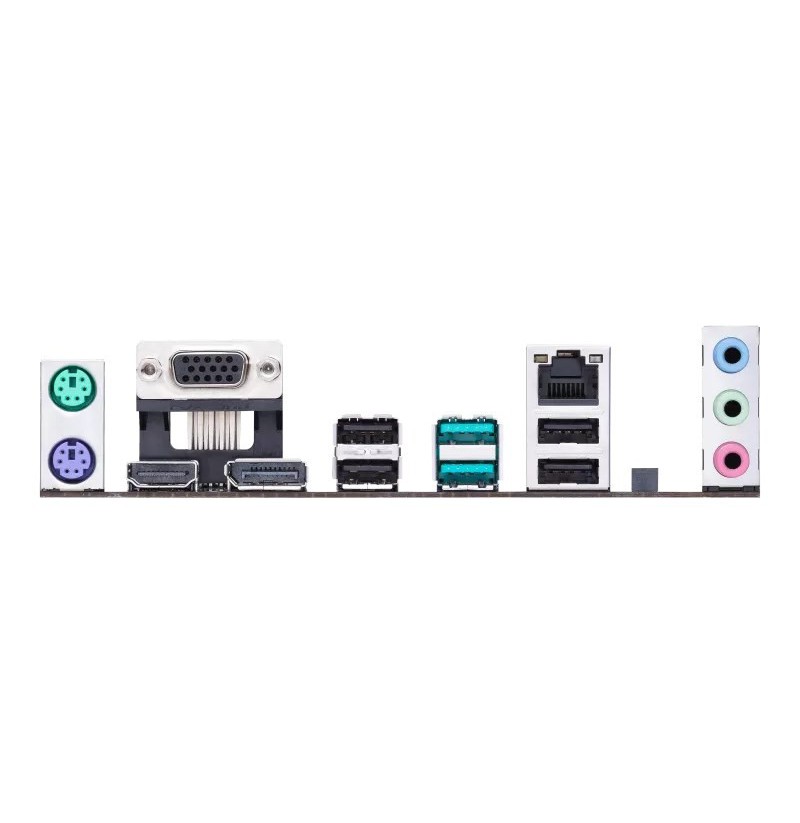

DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
PS/2 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Weight: 382 g
Harmonized System (HS) code: 84733020
