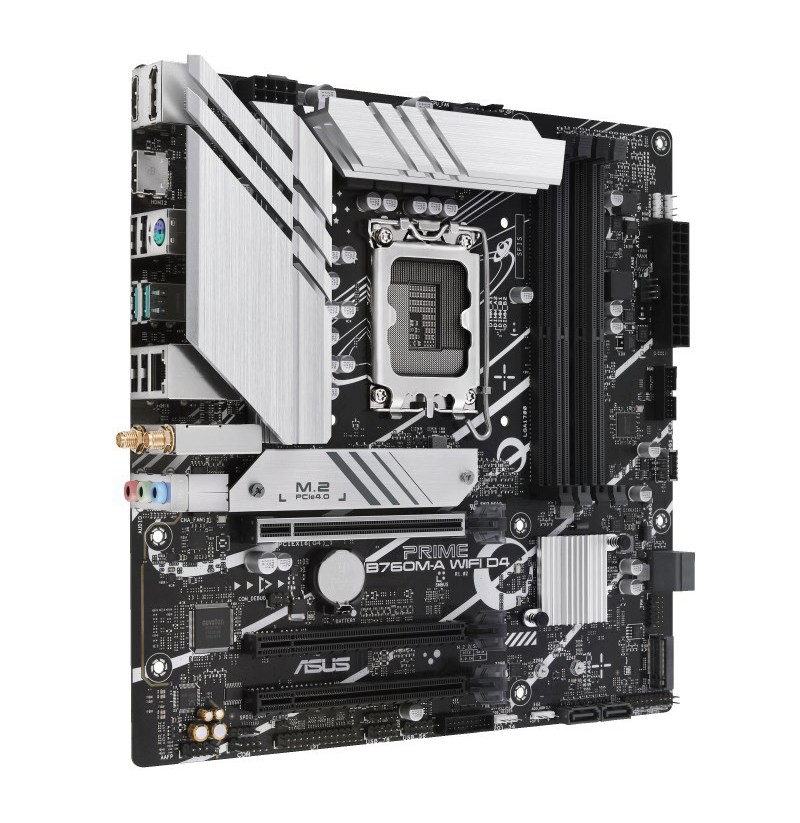

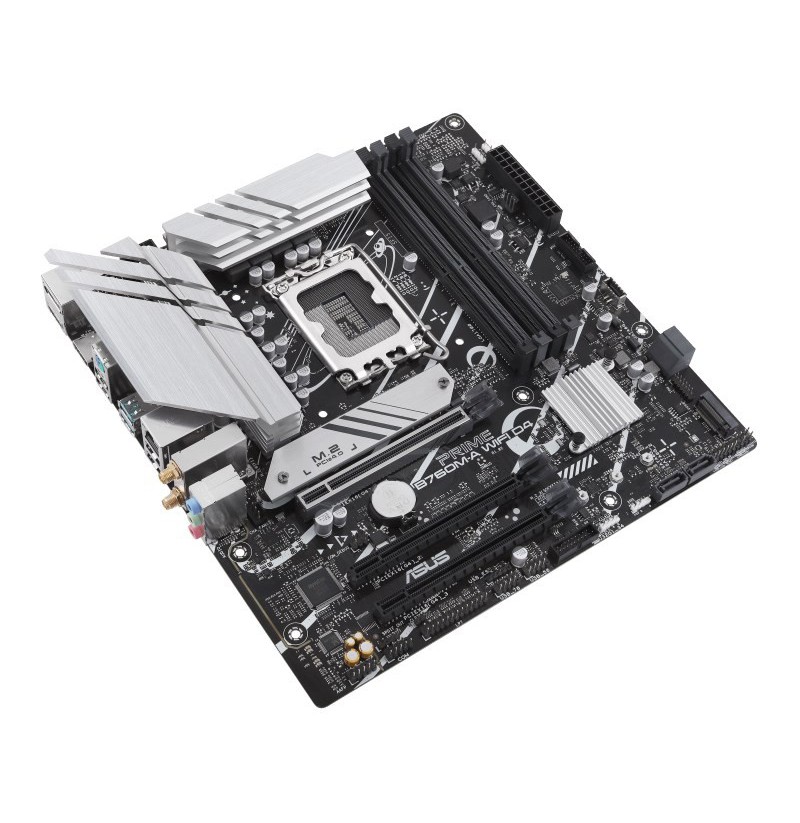

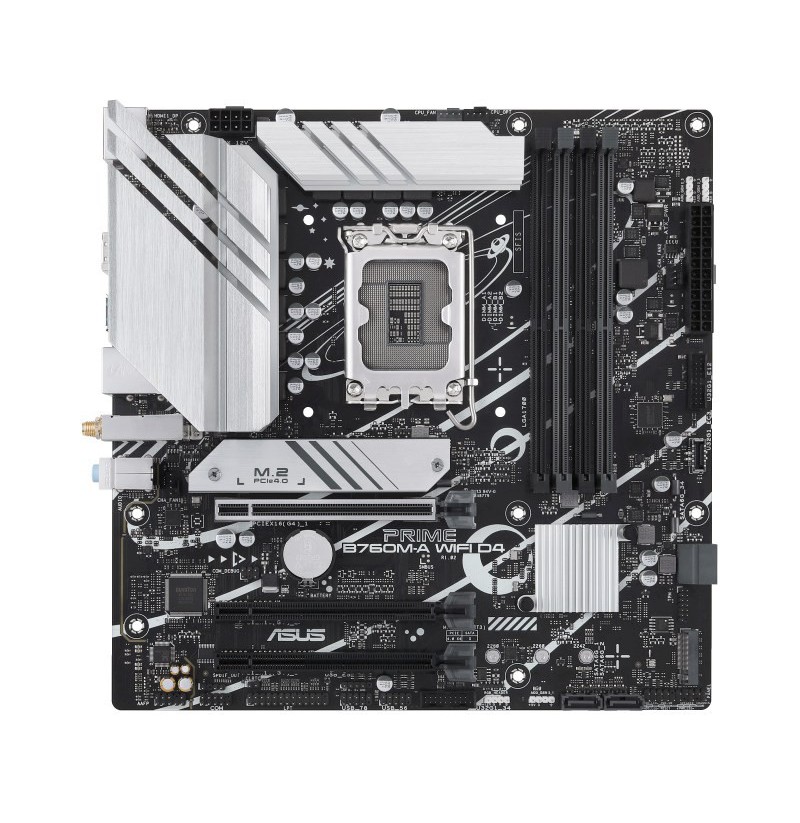

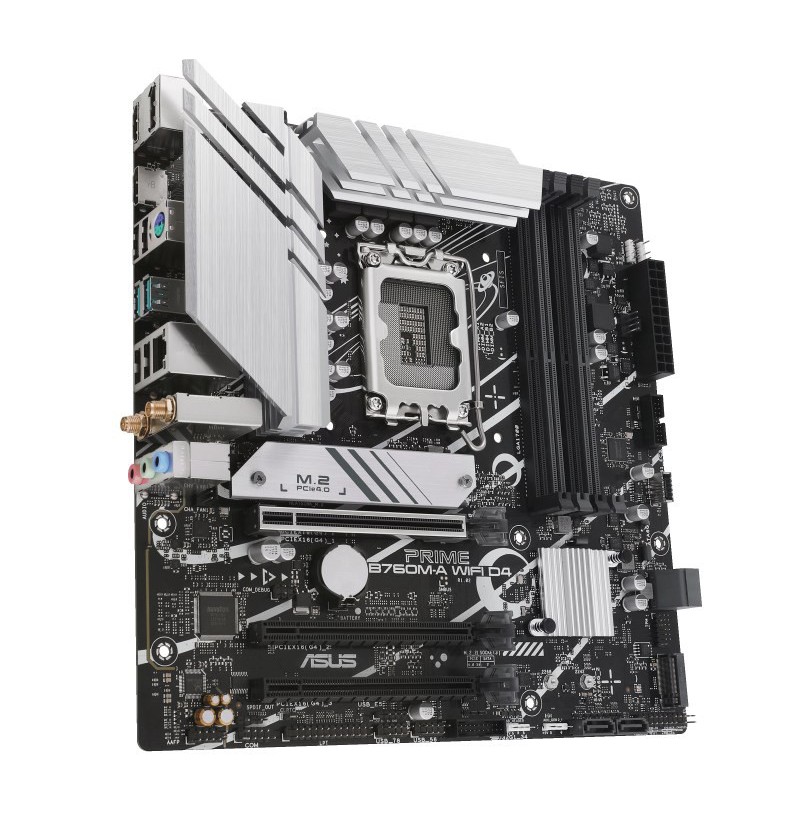

Mainboard ASUS PRIME B760M-A WIFI D4

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 5333 MHz
Memory channels: Dual-channel
Supported memory clock speeds: 2400, 2800, 3200, 2666, 3400, 3000, 2133, 2933, 3600, 4000, 3333, 5066, 5333 MHz, 4600, 3733, 4400, 5000, 3466, 4266, 4800
Maximum internal memory: 128 GB
ECC сompatibility: Non-ECC
Unbuffered memory: Yes
Width: 244 mm
Depth: 244 mm
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth version: 5.2
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n)
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth: Yes
CPU fan connector: Yes
TPM connector: Yes
12V power connector: Yes
Number of SATA III connectors: 4
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 2
S/PDIF out connector: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI
Package width: 275 mm
Package depth: 275 mm
Package height: 67.5 mm
Package weight: 1.4 kg

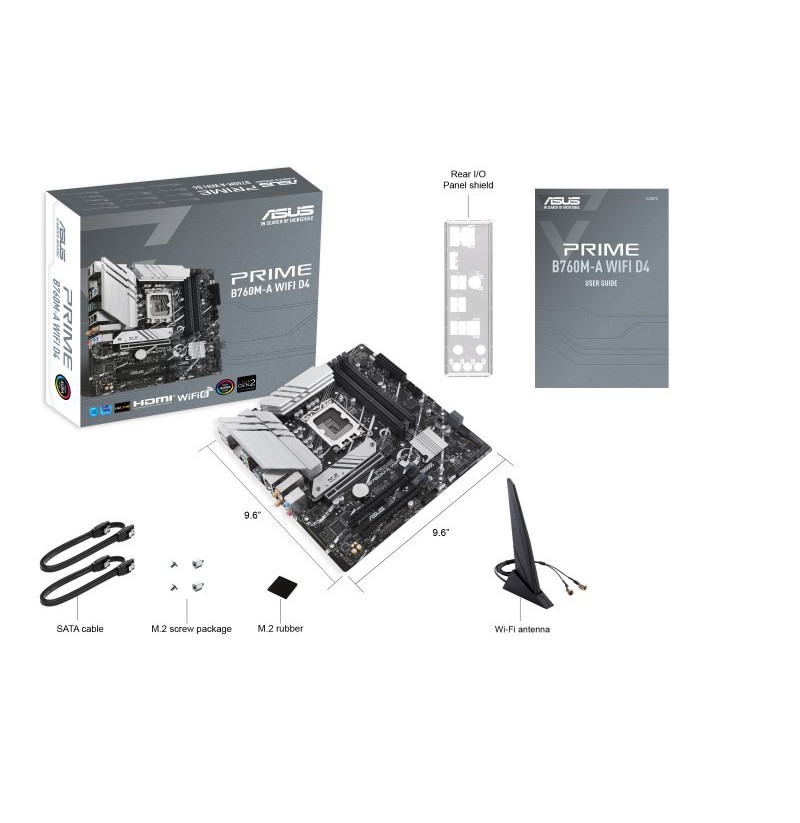

Cables included: SATA
Supported storage drive interfaces: M.2, SATA III
RAID levels: 10, 1, 0, 5
Number of storage drives supported: 6
RAID support: Yes
Supported storage drive types: HDD & SSD

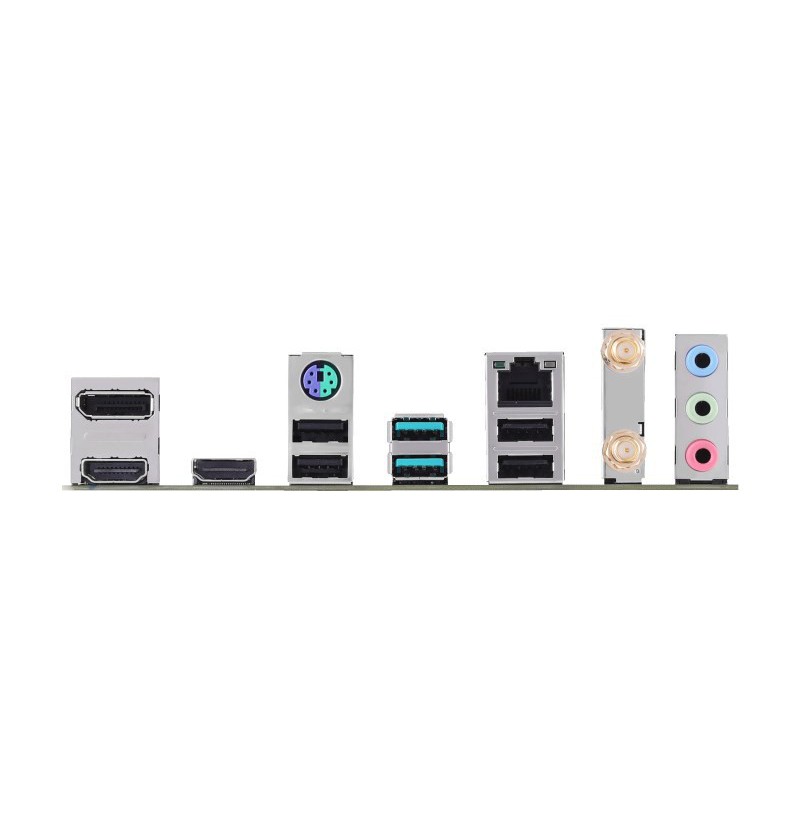

USB 2.0 ports quantity: 4
HDMI ports quantity: 2
Headphone outputs: 3
DisplayPort version: 1.4
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 1
Microphone in: Yes
Line-in: Yes
PS/2 ports quantity: 1
PCI Express x16 (Gen 4.x) slots: 3
Number of M.2 (M) slots: 2
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
