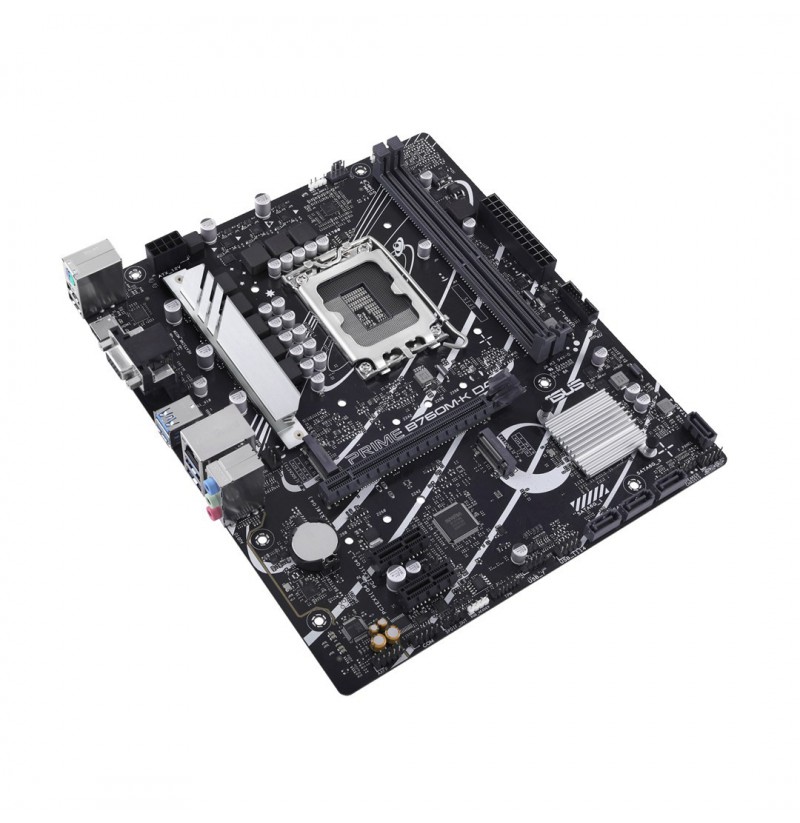

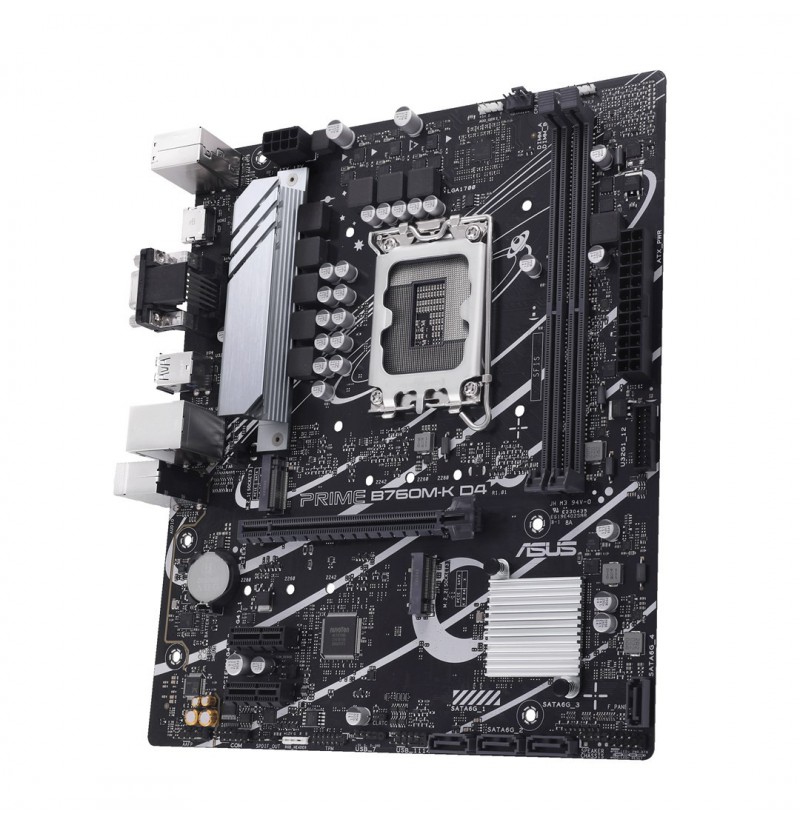

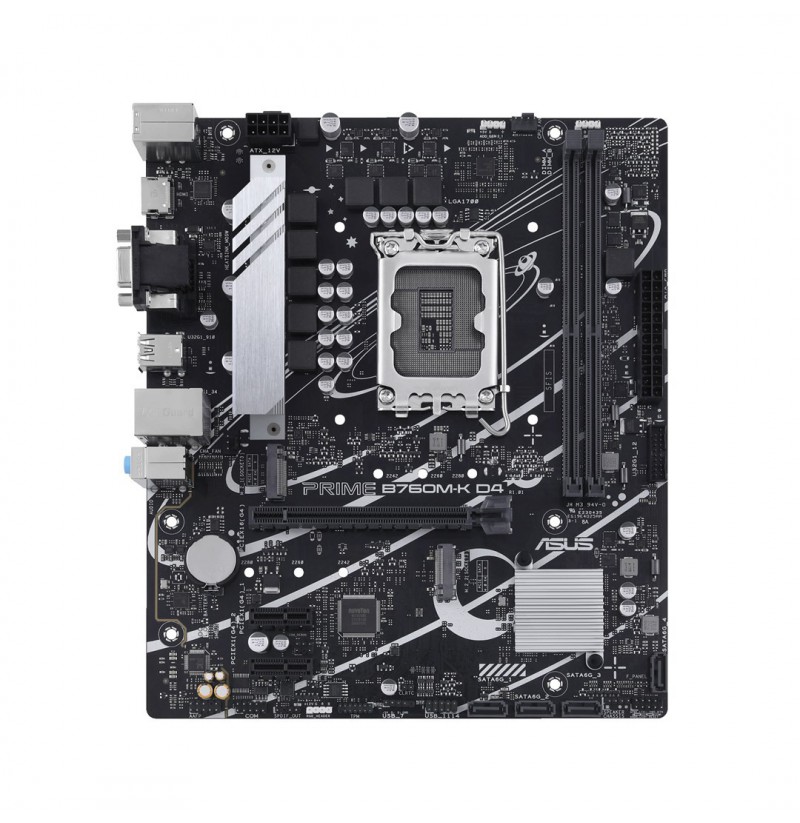

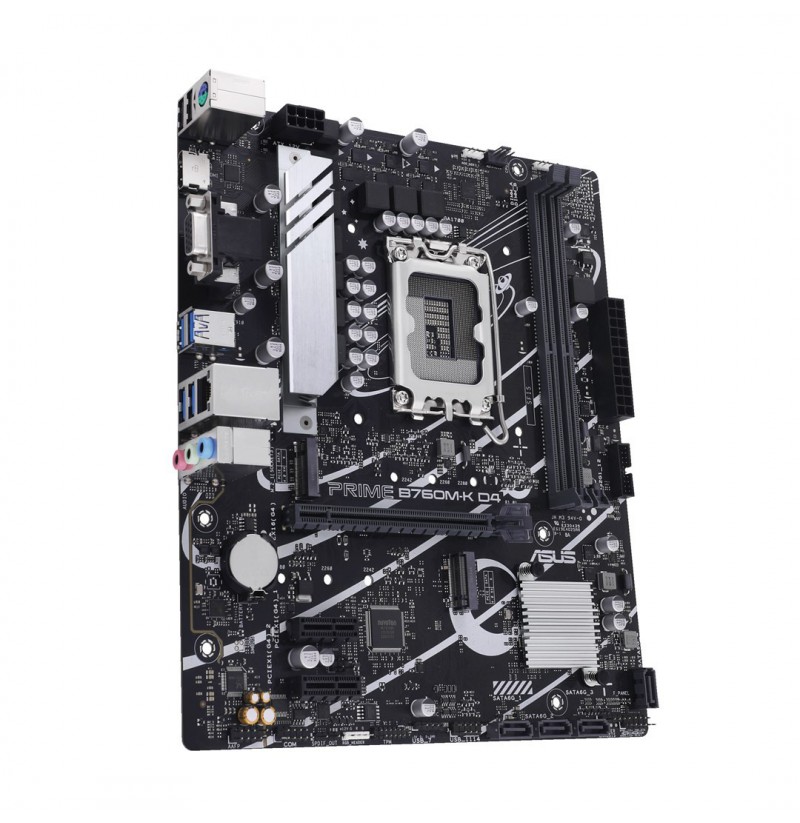

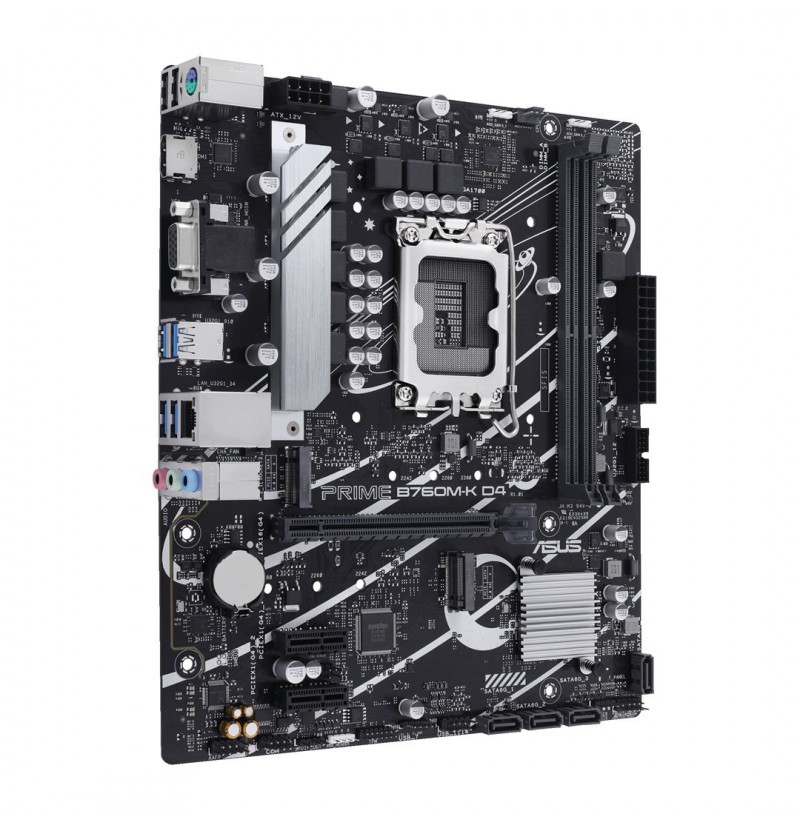

Mainboard ASUS PRIME B760M-K D4

Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Parallel processing technology support: Not supported
Motherboard chipset: Intel B760
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11, Windows 10 x64
Supported memory clock speeds: 3466, 3000, 5333 MHz, 2400, 2800, 5066, 2933, 3600, 3333, 3200, 2666, 4266, 3400, 2133, 4600 MHz, 4000, 4800, 3733, 4400, 5000
Unbuffered memory: Yes
Maximum internal memory: 64 GB
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speed (max): 5333 MHz
ECC сompatibility: Non-ECC
Depth: 211 mm
Height: 36 mm
Width: 244 mm
Wake-on-LAN ready: Yes
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Number of SATA III connectors: 4
S/PDIF out connector: Yes
USB 2.0 connectors: 2
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
TPM connector: Yes
CPU fan connector: Yes
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
BIOS type: UEFI AMI
Package height: 263 mm
Package weight: 926.3 g
Package depth: 51.5 mm
Package width: 270 mm
Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
RAID levels: 0, 1, 10, 5
Number of HDDs supported: 4
RAID support: Yes

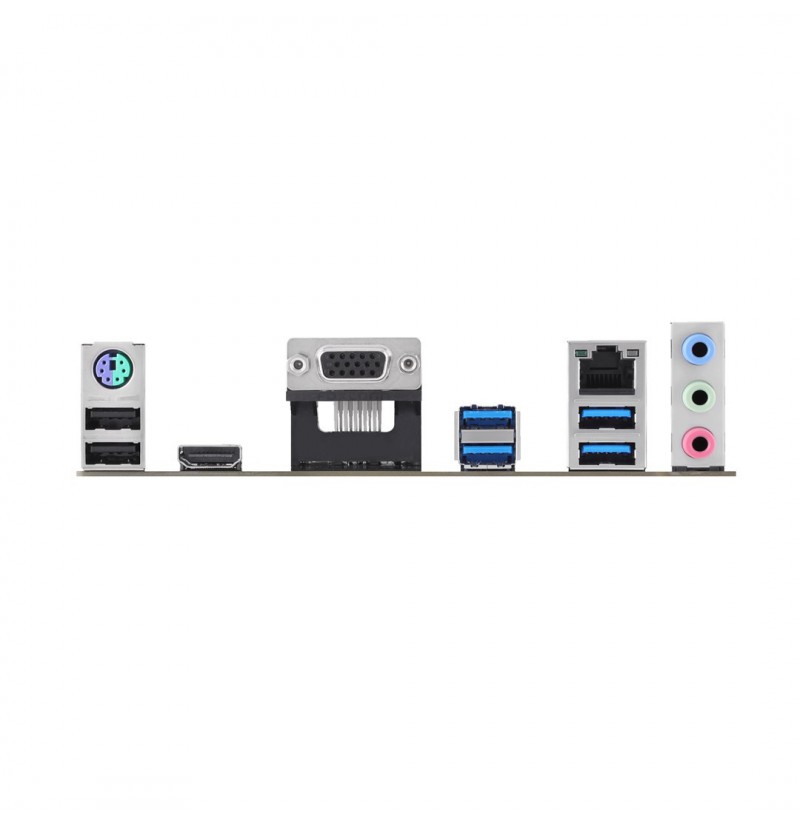

VGA (D-Sub) ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 1
USB connector type: USB Type-A
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2
Weight: 528 g
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
