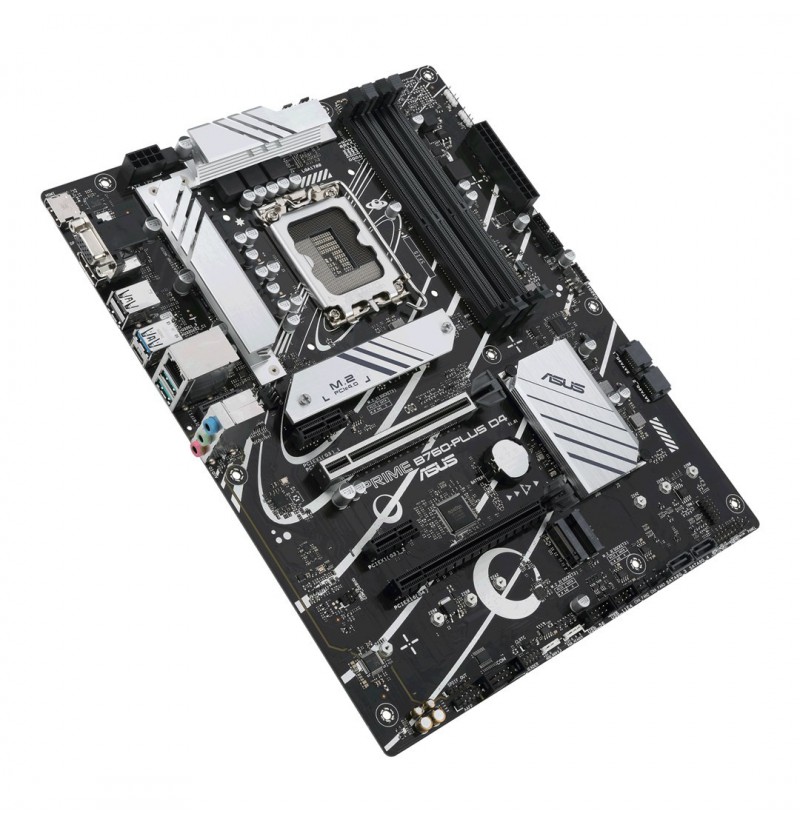

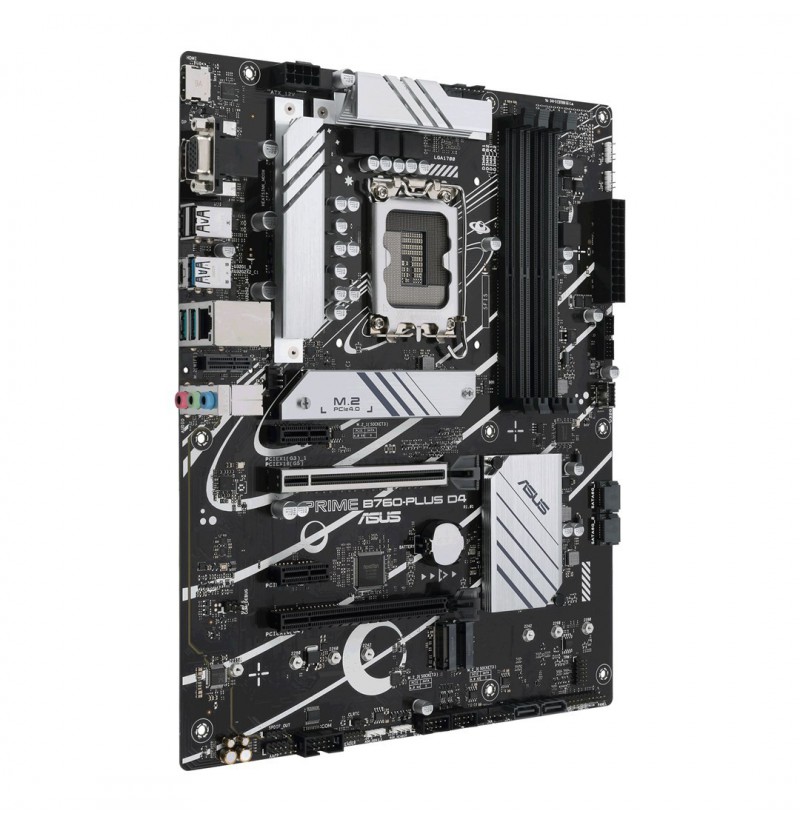

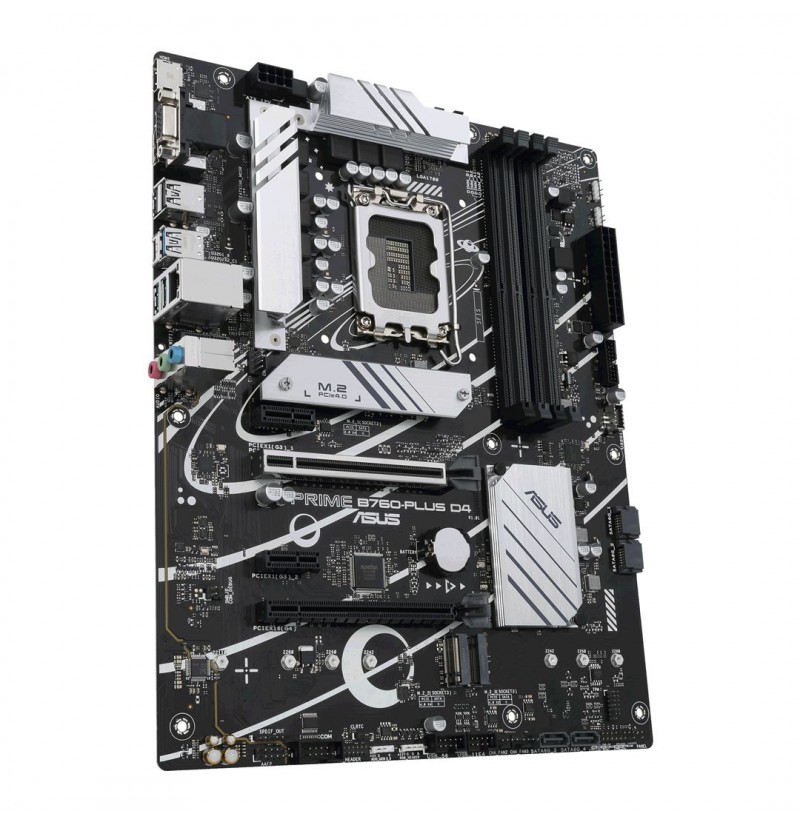

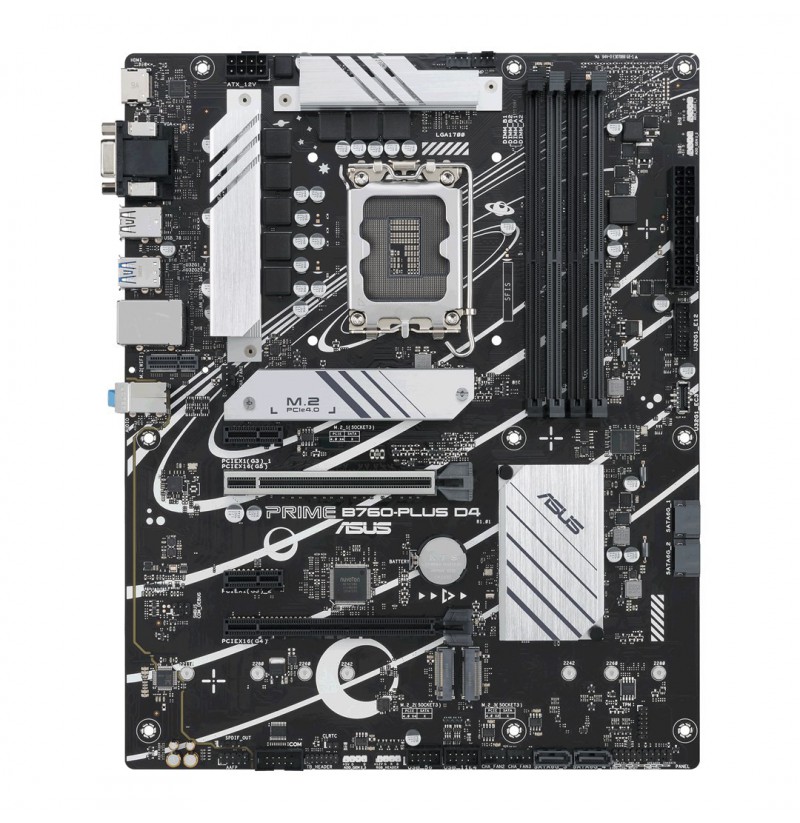

Asus | PRIME B760-PLUS D4 | Processor family Intel | Processor socket LGA1700 | DDR4 | Supported hard disk drive interfaces M.2,

Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor manufacturer: Intel
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Power source type: ATX
Windows operating systems supported: Windows 11, Windows 10
Cooling type: Passive
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard form factor: ATX
Motherboard chipset: Intel B760
Memory channels: Dual-channel
Number of memory slots: 4
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 5066 MHz
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 4600 MHz, 3000, 3400, 2133, 2400, 2800, 5066, 3200, 2666, 4266, 3333, 3733, 4400, 5000, 4000, 4800, 2933, 3600, 3466
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Width: 305 mm
Depth: 244 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
RGB LED pin header: Yes
Thunderbolt headers: 1
Number of chassis fan connectors: 3
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Peripheral (Molex) power connectors (4-pin): 1
TPM connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
S/PDIF out connector: Yes
BIOS type: UEFI AMI
Package weight: 1.16 kg
Package width: 328 mm
Package height: 53 mm
Package depth: 266 mm
Cables included: SATA
User guide: Yes
RAID levels: 0, 10, 5, 1
Number of storage drives supported: 7
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

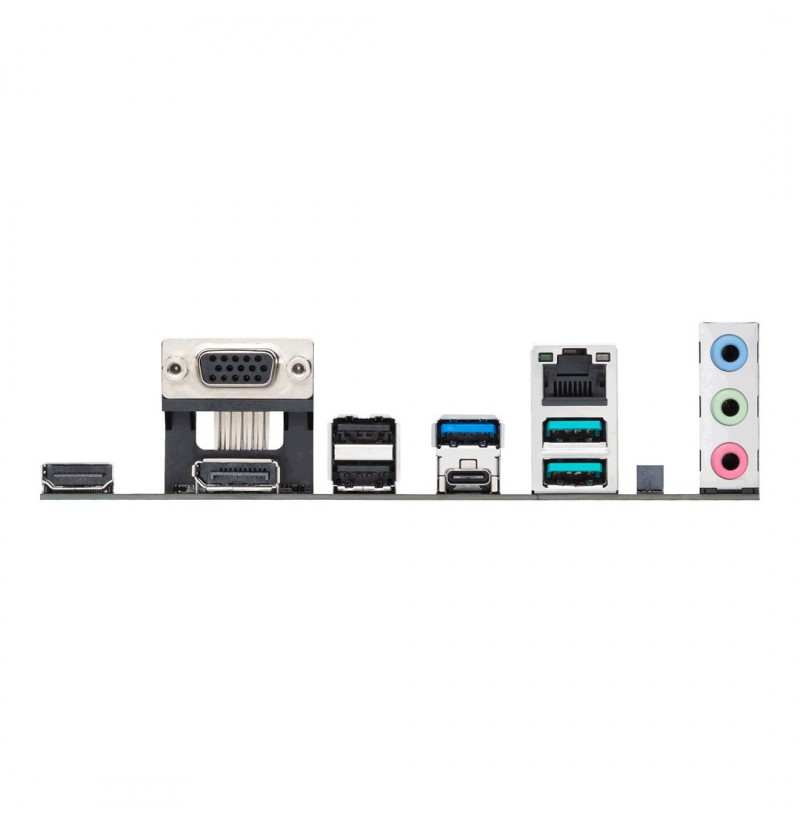

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
Headphone outputs: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (E) slots: 1
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage.
