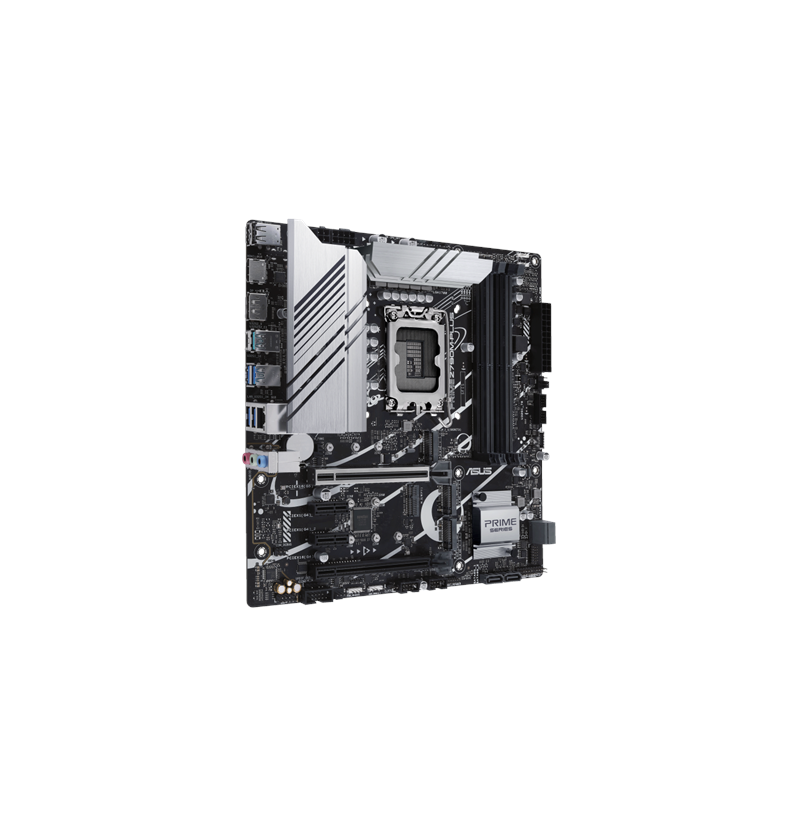

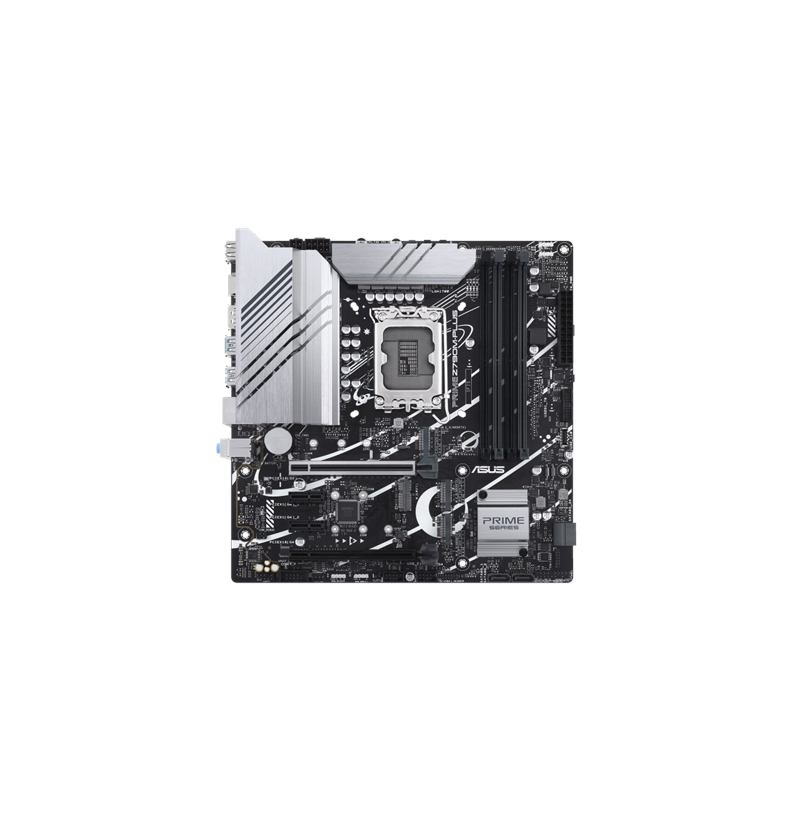

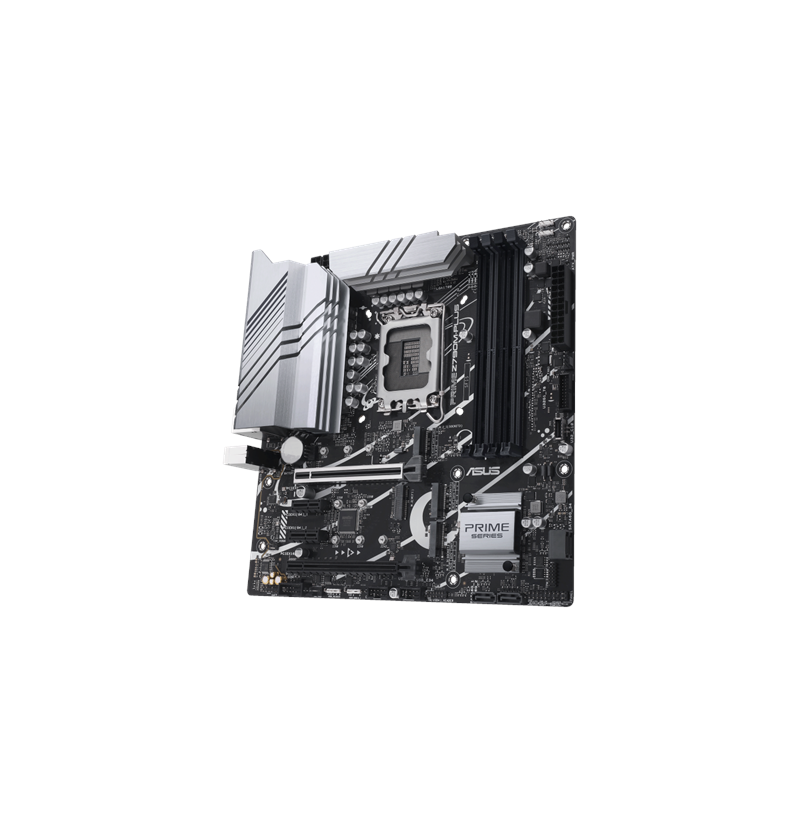

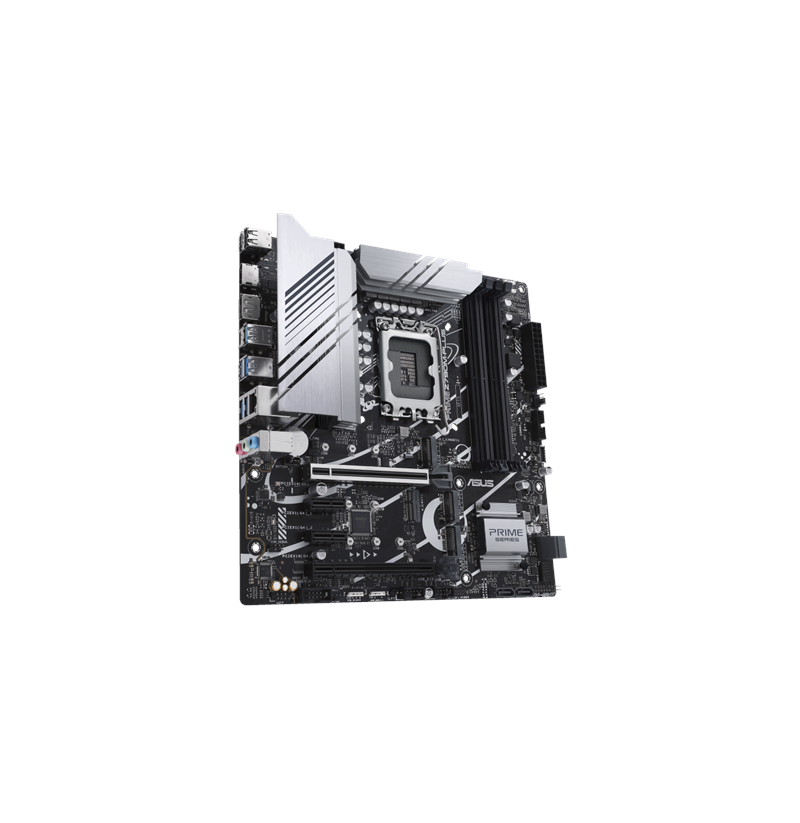

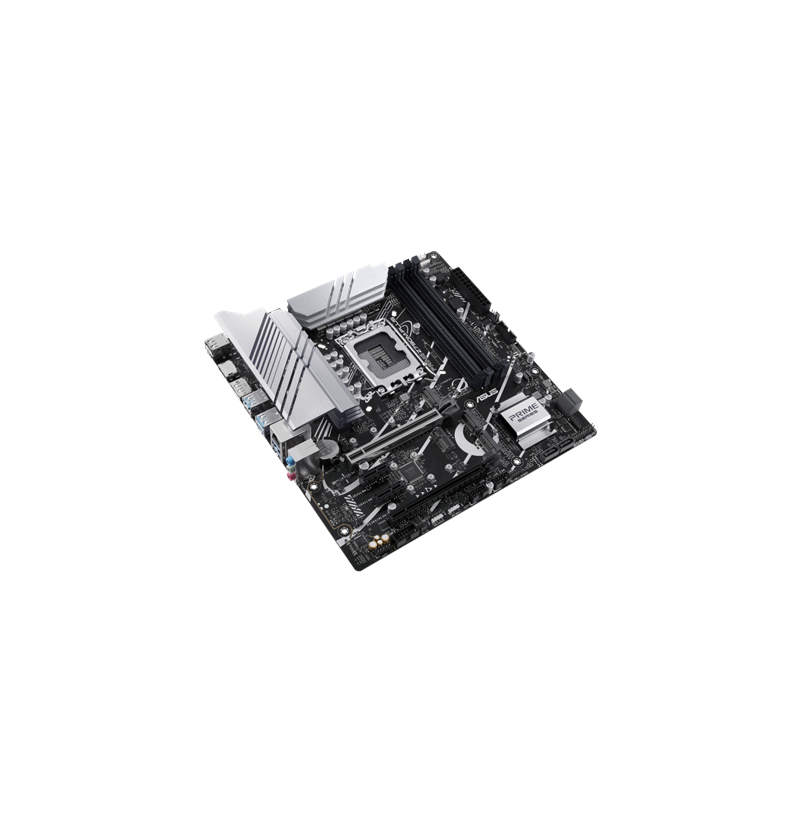

ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX

Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
On-board graphics card: No
Power source type: ATX
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z790
Motherboard form factor: micro ATX
Product colour: Black, Aluminium
Motherboard chipset family: Intel
Supported memory clock speeds: 4800, 6600, 6000, 6400 MHz, 5000, 7000, 5800, 5400, 5600, 7200, 5200, 6800, 6200
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Maximum internal memory: 128 GB
ECC сompatibility: Non-ECC
Depth: 244 mm
Width: 244 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Peripheral (Molex) power connectors (4-pin): 1
ATX Power connector (24-pin): Yes
Power fan connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Serial port headers: 1
CPU fan connector: Yes
RGB LED pin header: Yes
Thunderbolt headers: 1
Number of chassis fan connectors: 3
Number of COM connectors: 1
S/PDIF out connector: Yes
EPS power connector (8-pin): Yes
Audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
BIOS type: UEFI AMI
Bundled software: ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Cables included: SATA
RAID levels: 10, 5, 0, 1
RAID support: Yes
Number of HDDs supported: 3
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA
Number of storage drives supported: 4
DisplayPort version: 1.4
HDMI version: 2.0
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
COM ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB connector type: USB Type-A
USB 2.0 ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 2
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
