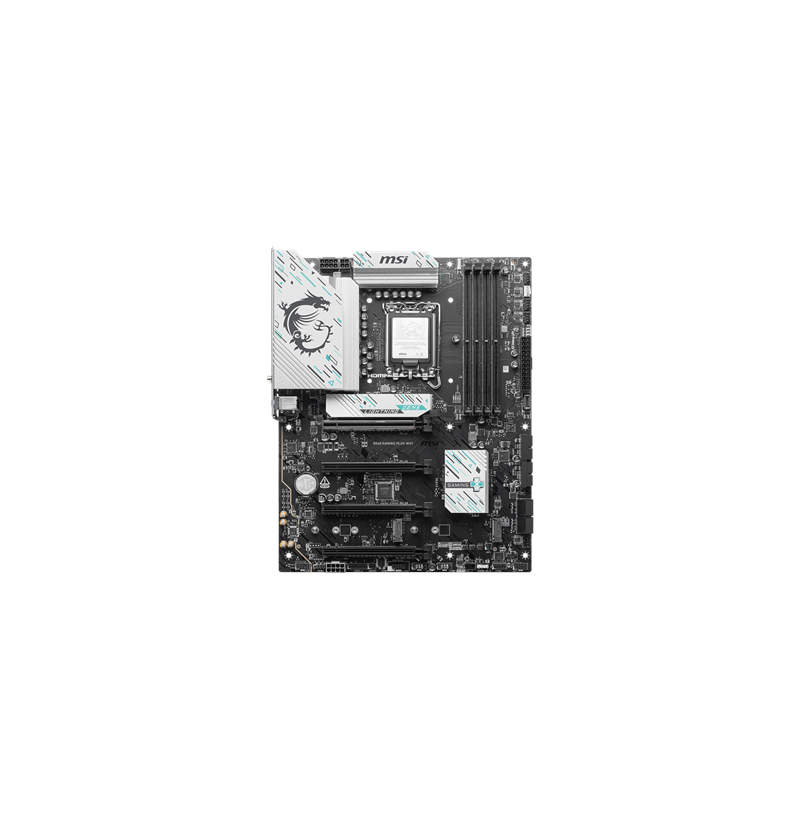

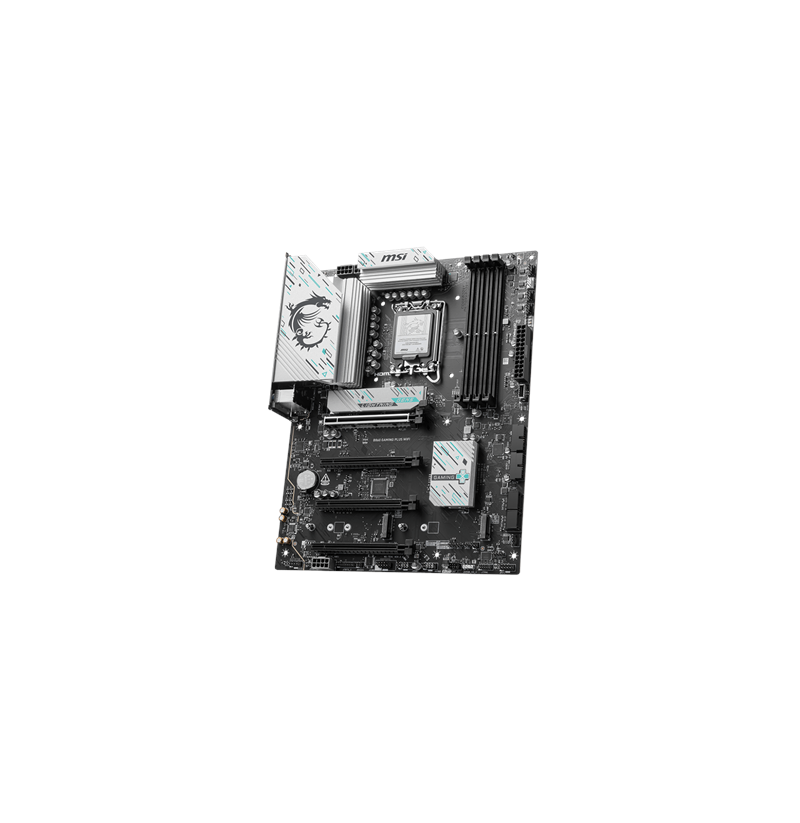

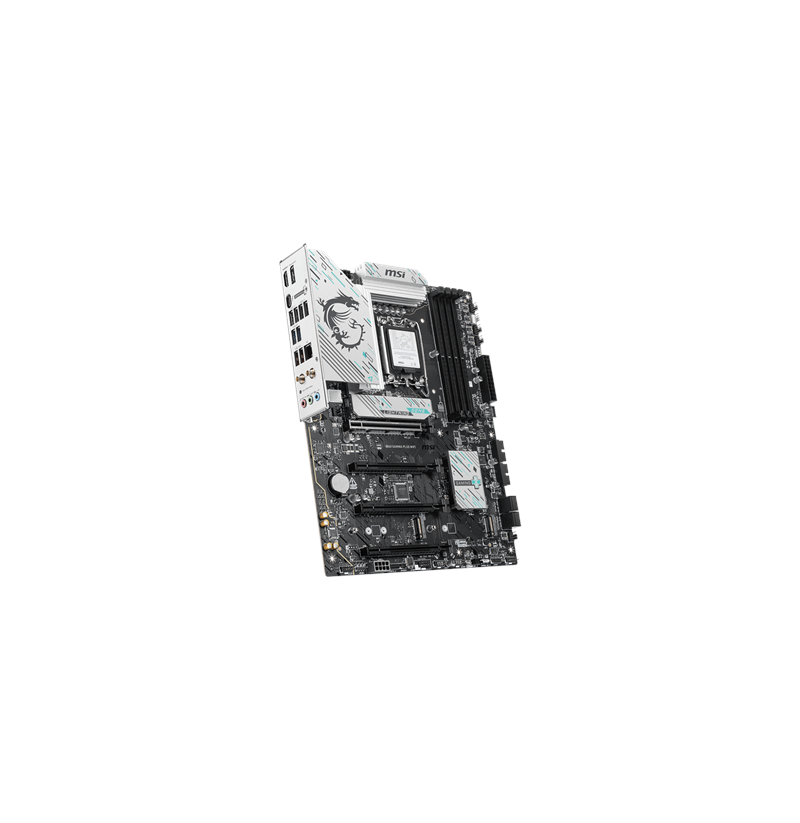

MSI B860 GAMING PLUS WIFI | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces SATA

Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Maximum internal memory supported by processor: 256 GB
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard form factor: ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC897
Product colour: Black
Motherboard chipset: Intel B860
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8800 MHz
ECC сompatibility: Non-ECC
Maximum internal memory: 256 GB
Supported memory clock speeds: 8800 MHz, 6400 MHz, 4800
Width: 243.8 mm
Depth: 304.8 mm
Ethernet LAN: Yes
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax)
WLAN controller model: Killer Wi-Fi 7 1750x
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4
Bluetooth: Yes
Number of water pump connectors: 1
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 1
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 2.0 connectors: 4
Number of SATA III connectors: 4
CPU fan connector: Yes
Total number of SATA connectors: 4
BIOS type: UEFI AMI
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
RAID support: Yes
RAID levels: 10, 5, 1, 0
Number of storage drives supported: 7
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 4.x) slots: 3
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
