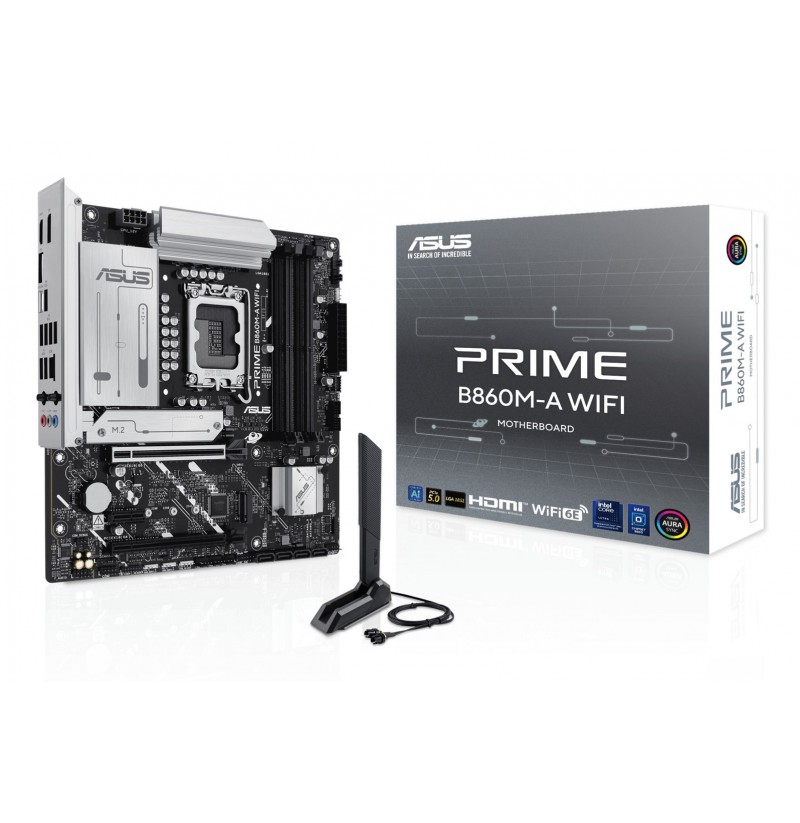

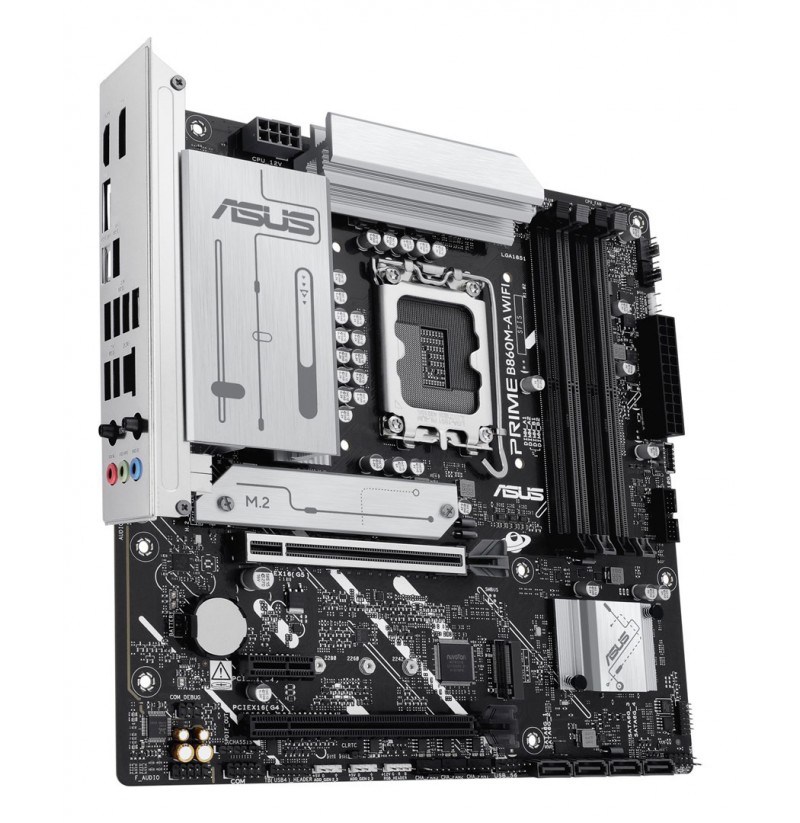

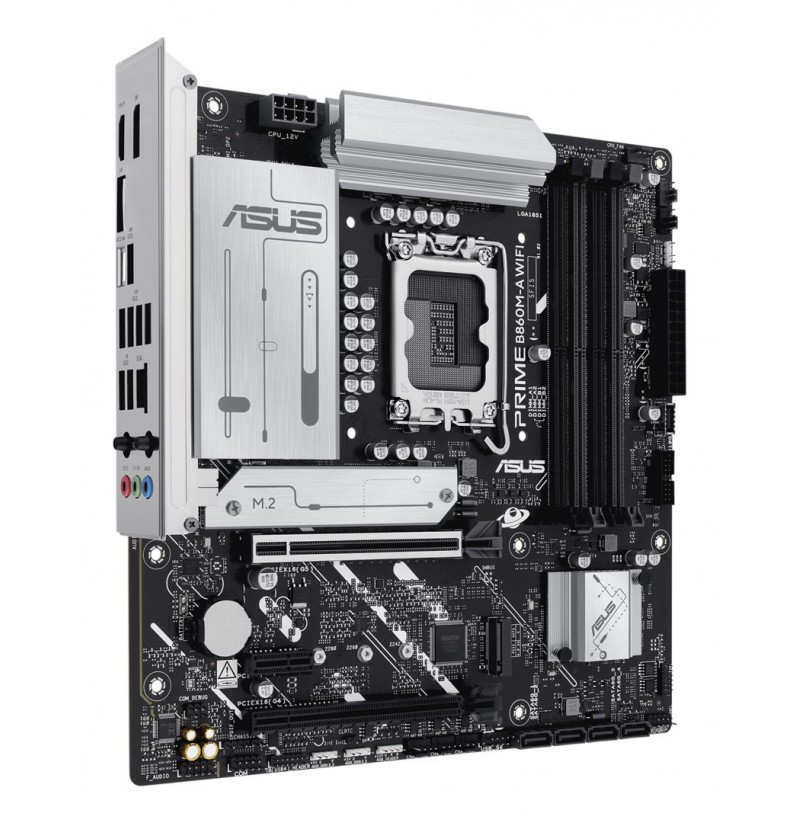

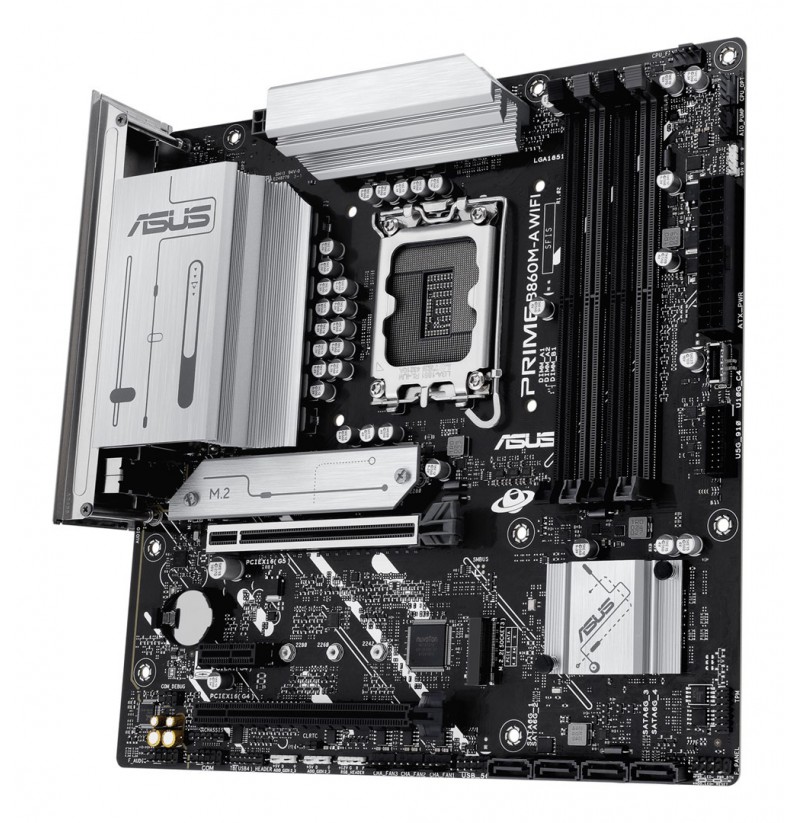

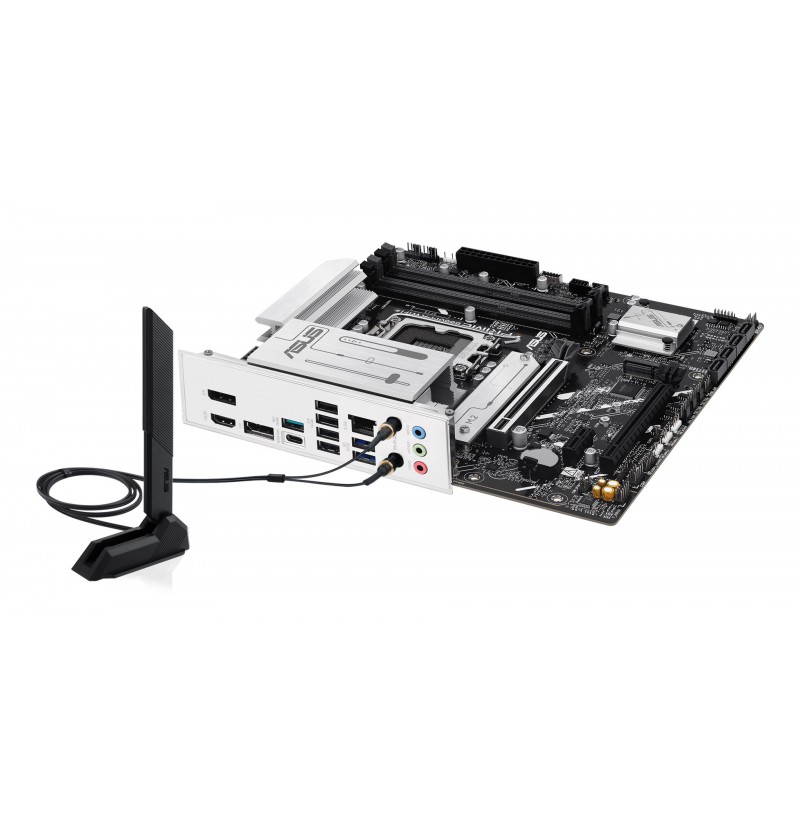

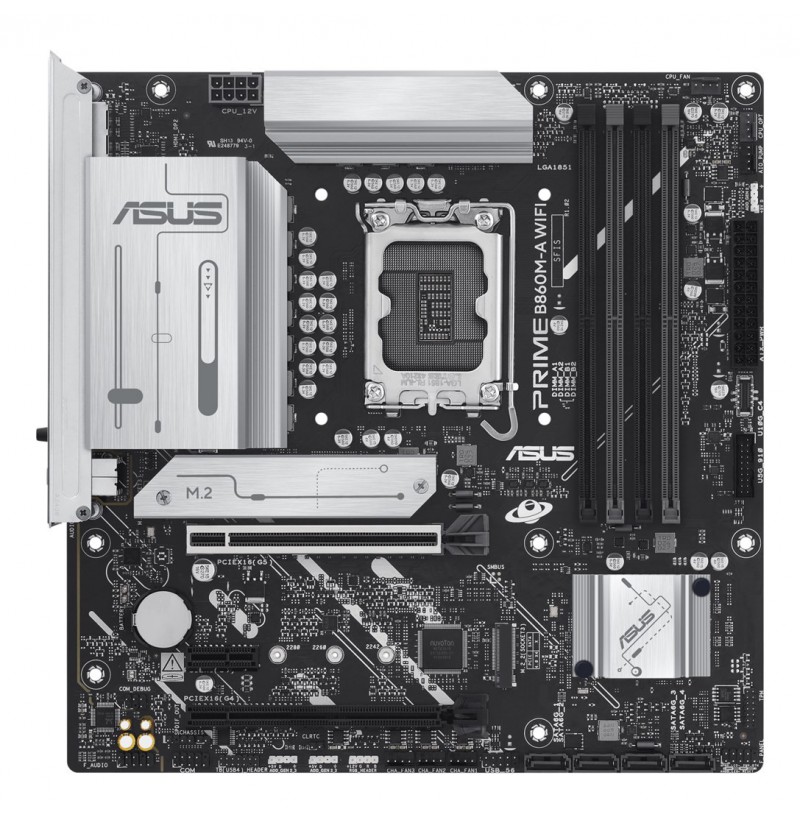

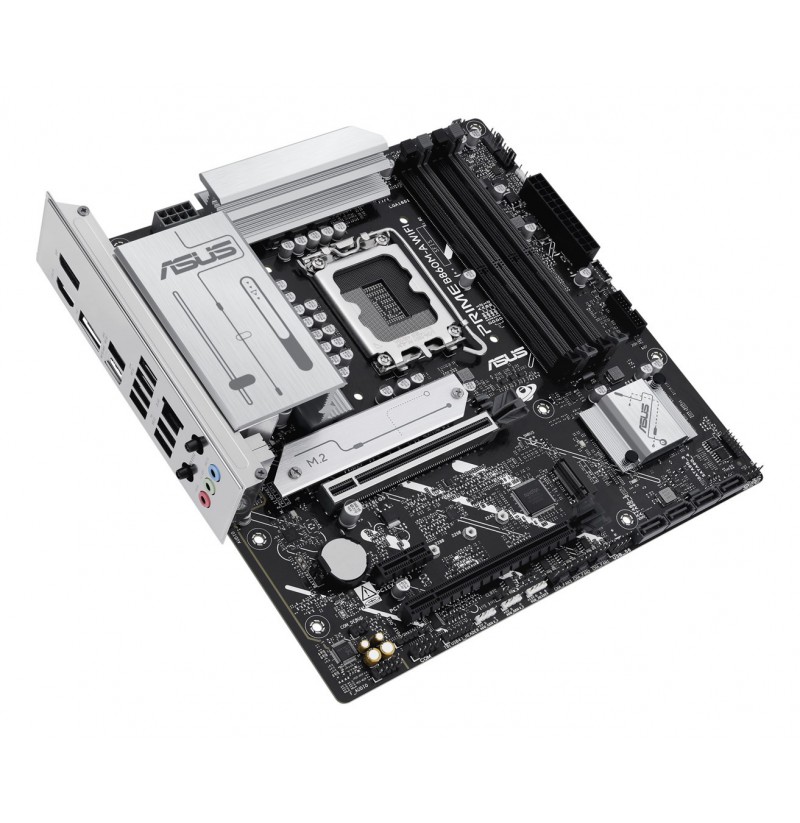

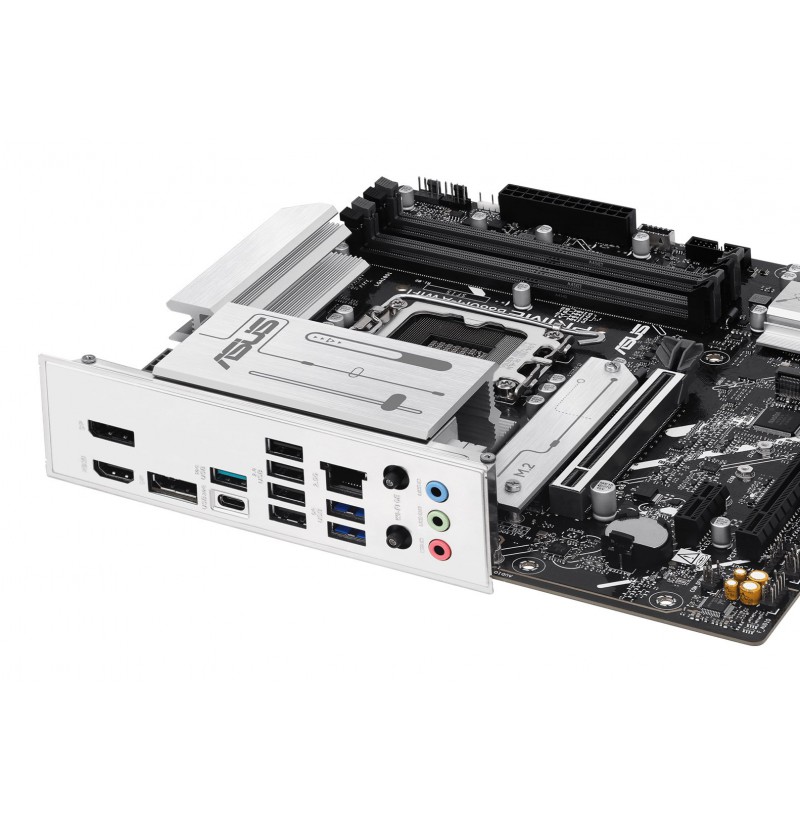

ASUS PRIME B860M-A WIFI LGA1851 DDR5 micro ATX MB 1xHDMI 2xDP 2xM.2 4xSATA

Supported processor sockets: LGA 1851
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Parallel processing technology support: Not supported
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset: Intel B860
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Maximum internal memory: 256 GB
Memory channels: Dual-channel
Unbuffered memory: Yes
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Depth: 244 mm
Width: 244 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth version: 5.3
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Number of SATA III connectors: 4
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Chassis intrusion connector: Yes
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
Thunderbolt headers: 1
USB 2.0 connectors: 1
CPU fan connector: Yes
Front panel connector: Yes
Front panel audio connector: Yes
TPM connector: Yes
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Package width: 275 mm
Package height: 67.5 mm
Package weight: 1.44 kg
Package depth: 275 mm
Cables included: SATA
Screws included: Yes
Antenna included: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 5, 1, 0, 10
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4

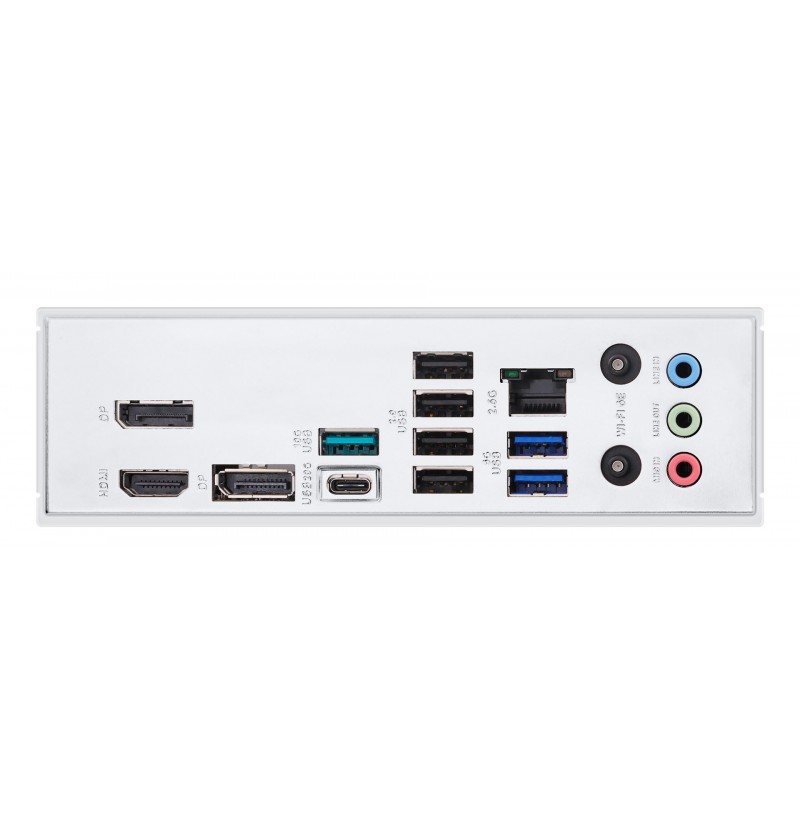

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
WiFi-AP antenna jack: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
