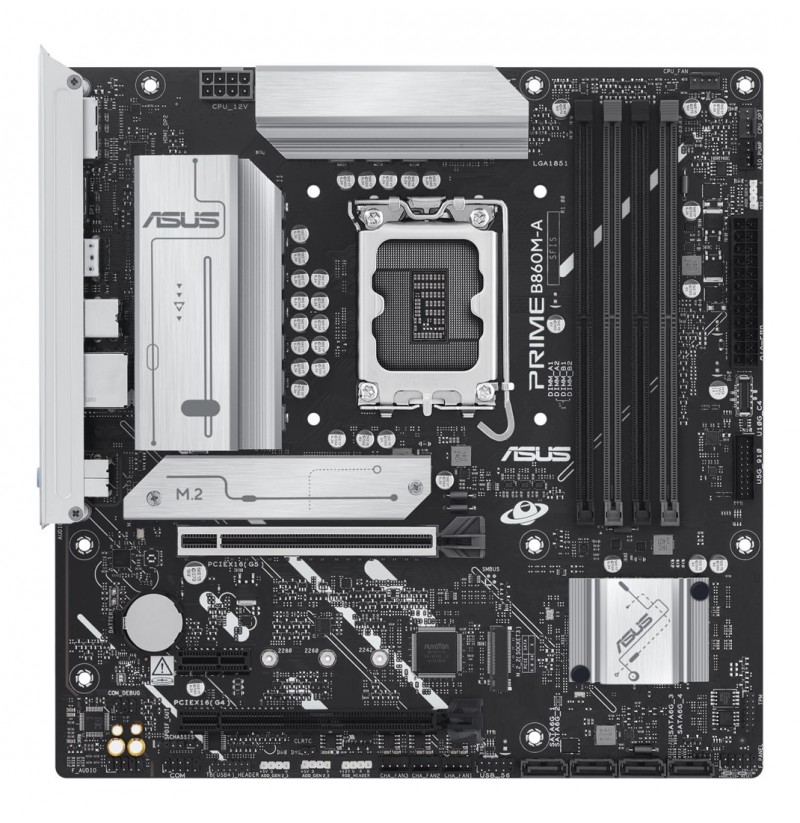

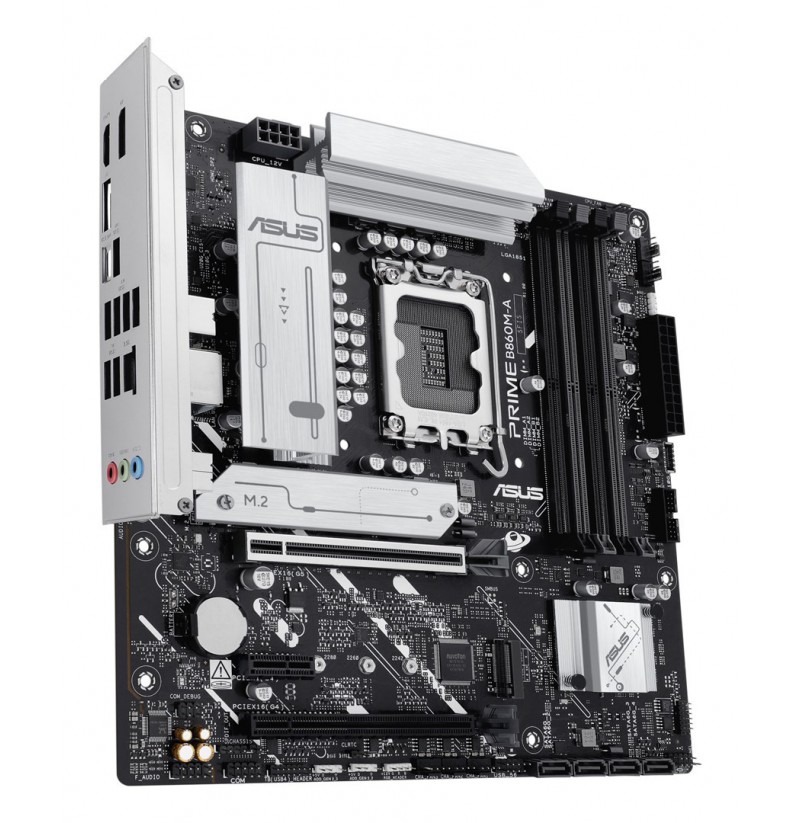

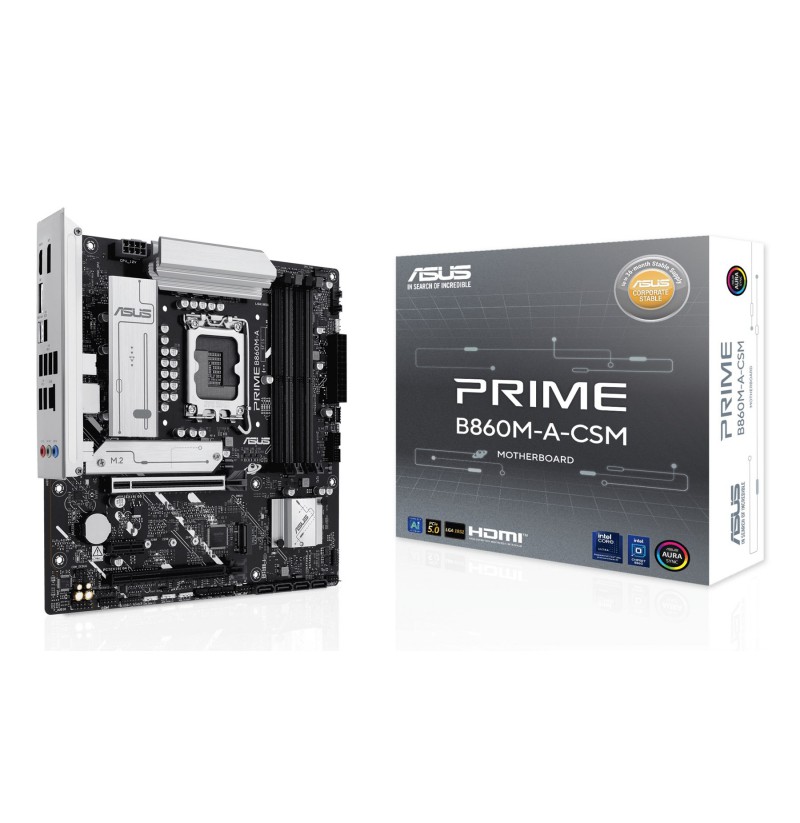

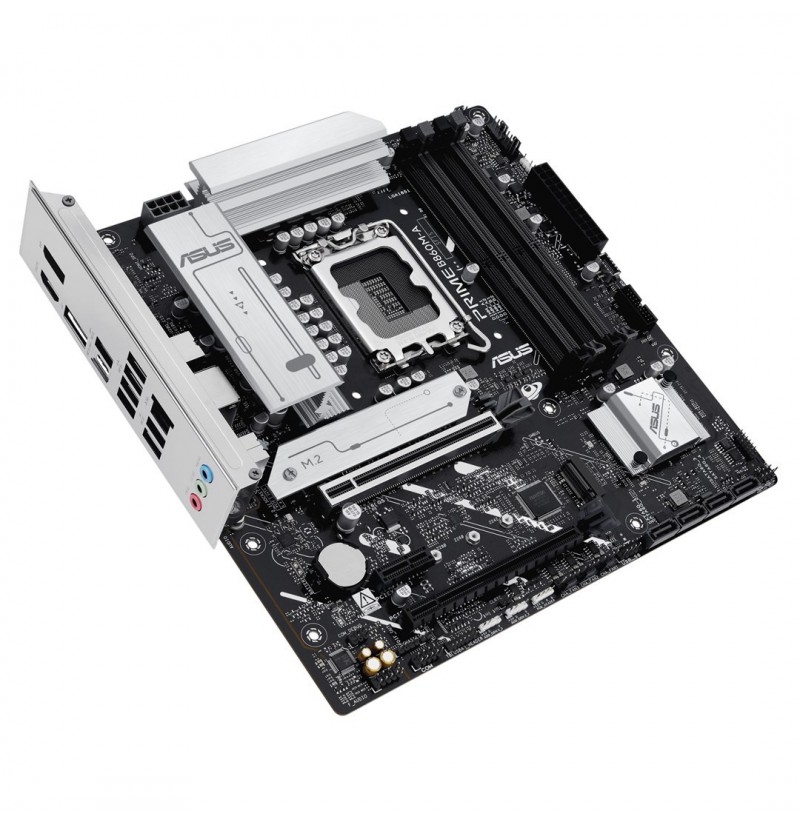

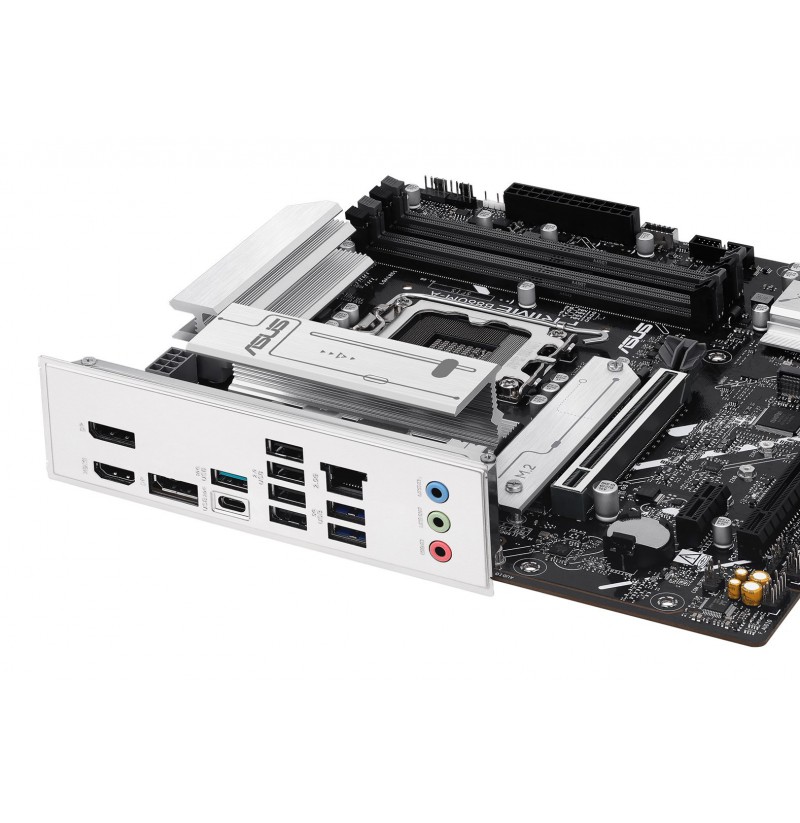

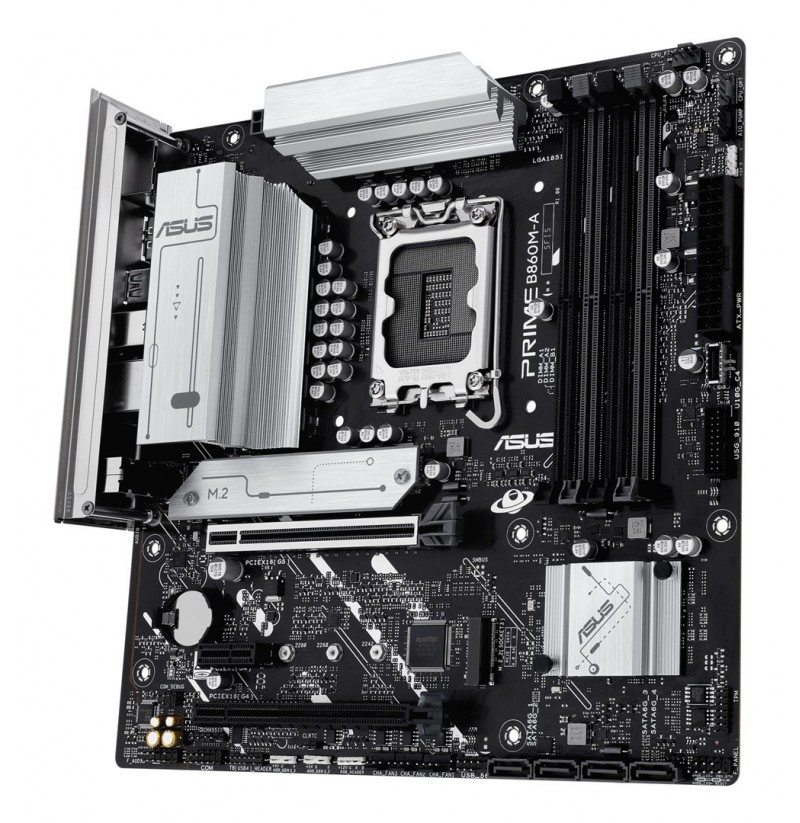

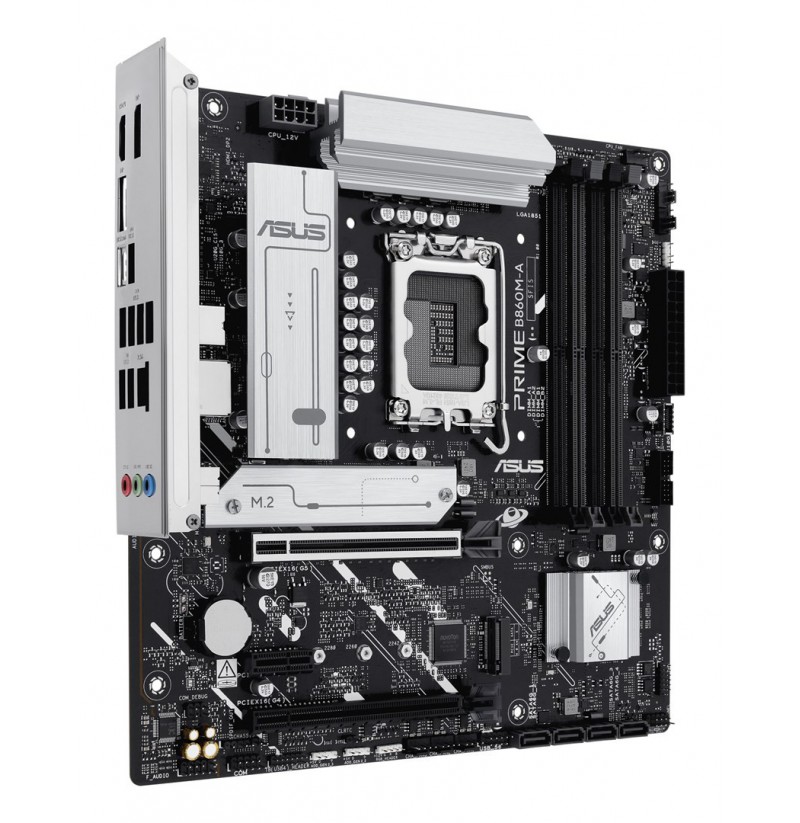

ASUS PRIME B860M-A-CSM Intel B860 LGA 1851 (Socket V1) micro ATX

Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel
Parallel processing technology support: Not supported
Motherboard form factor: micro ATX
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard chipset family: Intel
Product colour: Multicolour
Audio output channels: 7.1 channels
Motherboard chipset: Intel B860
Supported memory clock speed (max): 8666 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
Unbuffered memory: Yes
Maximum internal memory: 256 GB
ECC сompatibility: Non-ECC
Height: 50 mm
Width: 244 mm
Depth: 244 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Not available
Wi-Fi: No
Ethernet LAN: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
TPM connector: Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes
Number of chassis fan connectors: 3
12V power connector: Yes
S/PDIF out connector: Yes
Thunderbolt headers: 1
Number of CPU fan connectors: 1
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Package weight: 1.36 kg
Package depth: 275 mm
Package width: 275 mm
Package height: 67.5 mm
RAID levels: 1, 5, 10, 0
Number of storage drives supported: 6
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes
Line-in: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Weight: 815 g
