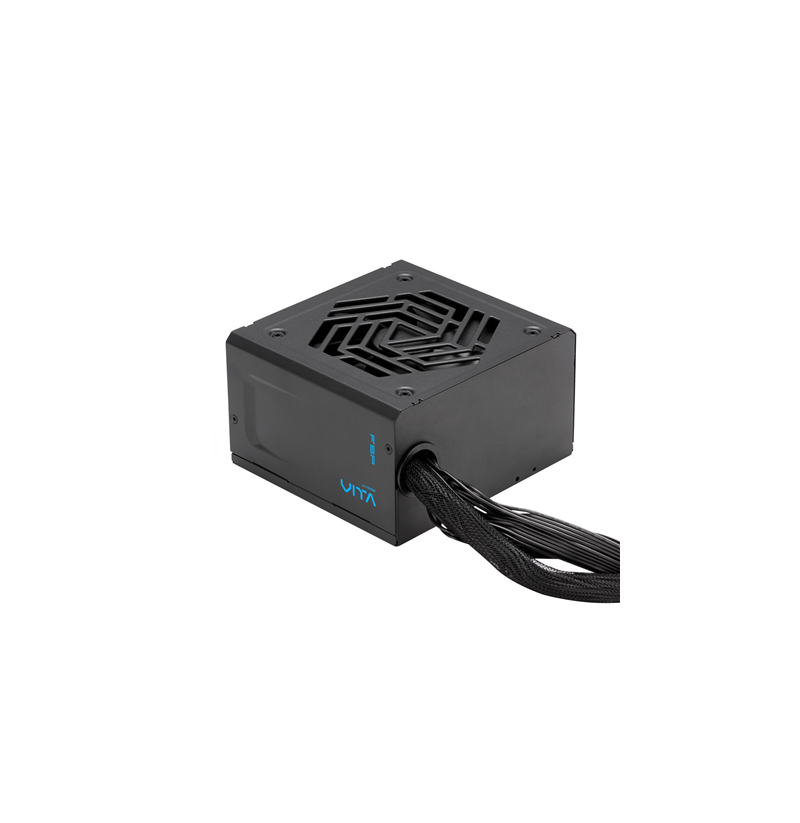

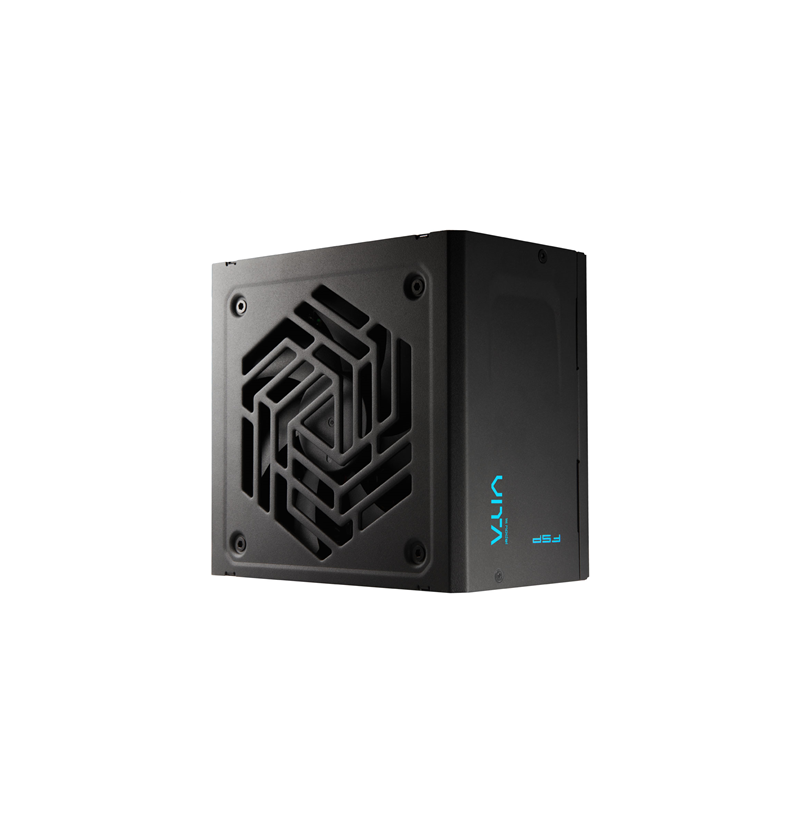

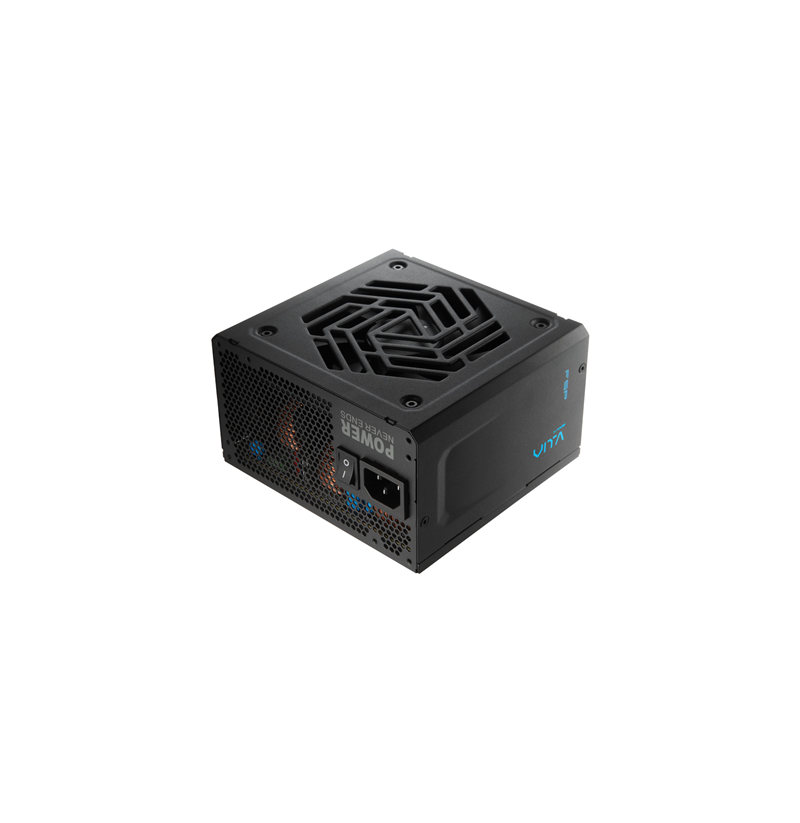

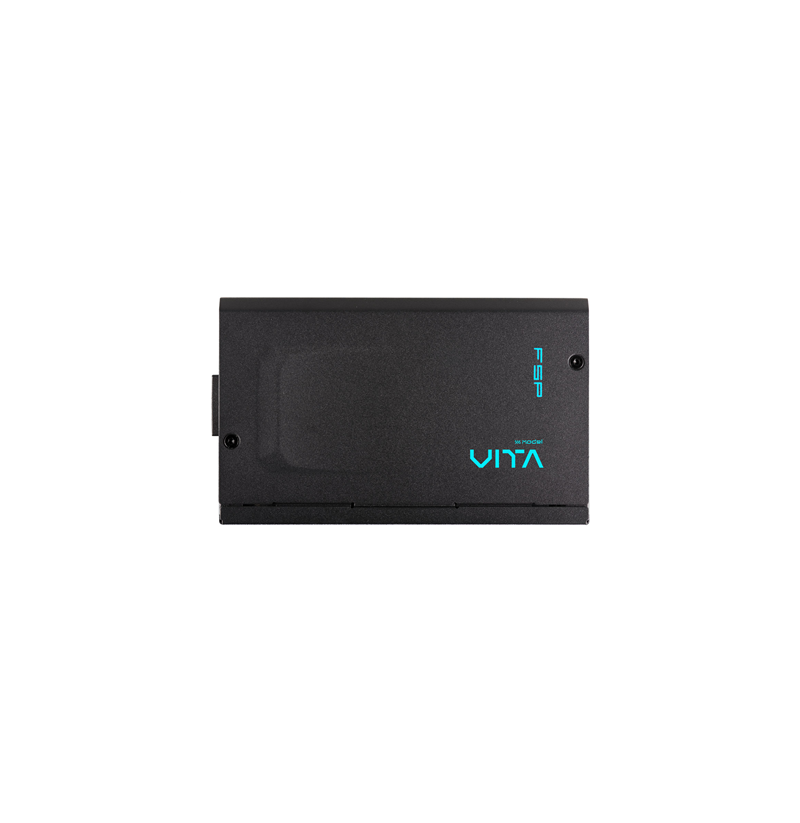

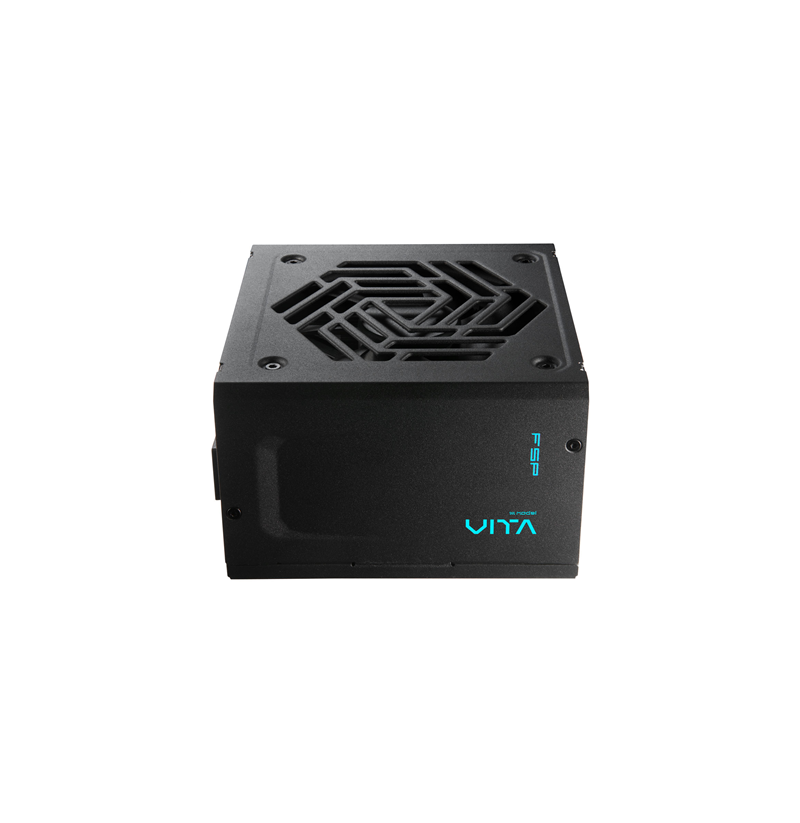

FSP Power Supply, 80 PLUS | VITA GD 550W | 550 W

Product colour: Black
Fan diameter: 12 cm
Fan location: Top
Cooling type: Active
Number of fans: 1 fan(s)
Combined power (-12V): 3.6 W
Combined power (+12V): 550 W
Max output current (+3.3V): 20 A
Combined power (+5V): 100 W
Efficiency: 90%
Max output current (+5V): 20 A
Total power: 550 W
Max output current (+12V): 45.8 A
AC input frequency: 50/60 Hz
Input current: 8-4 A
Power protection features: Overheating, Short circuit, Over voltage, Over power, Under voltage, Over current
AC input voltage: 110 - 240 V
Combined power (+3.3V): 100 W
Power Factor Correction (PFC) type: Active
Max output current (+5Vsb): 2.5 A
Combined power (+5Vsb): 12.5 W
Max output current (-12V): 0.3 A
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Purpose: PC
ATX version: 3.1
80 PLUS certification: 80 PLUS Gold
Bearing technology: HYB
EPS version: 2.92
Power supply unit (PSU) form factor: ATX
Cables included: CPU, Peripheral (Molex), SATA
SATA power cable length: 500 mm
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 4
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
CPU power connector (4+4 pin): Yes
CPU power cable length: 70 cm
Cabling type: Non-Modular
